Question 1

How to install the parking brake cable assembly No. 3 on Toyota 4Runner?

Accepted Answer

The installation of parking brake cable assembly No. 3 begins with connecting the clip to the parking brake equalizer then fastening 4 bolts to 13 Nm (127 kgf-cm, 9 ft-lbf) torque followed by attaching 2 bolts to the backing plate at 8.0 Nm (82 kgf-cm, 71 in-lbf) torque. Afterward, apply high-temperature grease. After applying high-temperature grease you must install the parking brake shoe followed by the parking brake shoe strut LH together with the parking brake shoe strut compression spring. The next step involves fitting the parking brake shoe return tension spring after which you should test the entire parking brake system. The technician should now install the rear disc brake followed by adjusting the parking brake shoe clearance then securing the rear disc brake caliper assembly LH through 2 bolts torqued to 105 Nm (1071 kgf-cm, 77 ft-lbf). Commit to installing the rear wheel while tightening it to 112 Nm (1137 kgf-cm, 82 ft-lbf). Proceed to install the console box assembly rear followed by the No.2 console upper panel garnish and the No.1 console upper panel garnish and then the console panel sub-assembly upper and console upper rear panel sub-assembly. Complete the procedure by checking and making adjustments to the parking brake pedal shaft.

Question 2

How to service and repair the parking brake cable on Toyota Tacoma?

Accepted Answer

Service or repair of the parking brake cable requires first disconnecting the negative battery terminal and waiting a minimum time period of 90 seconds in order to stop the Air Bags from deploying. The repair starts with removing the console upper rear panel subassembly from automatic and manual transmissions before removing the rear console box assembly from separate seat cars and the instrument panel cup holder tray from automatic transmissions only. Proceed by taking off the front console box for transmissions of both types and the center Air Bag sensor assembly. The first step is to remove the voltage inverter assembly while bench seat types require removal of the parking brake cable joint protector followed by the rear wheel and rear brake drum components. You can remove parking brake cable assembly No. 1 of automatic transmissions by first releasing the parking brake and then detaching the claw A while disconnecting the cable from the parking brake control pedal after you remove lock nut B and adjust nut C together with clip D. Manual transmission maintenance requires users to free the parking brake lever and remove the clip while taking off the pin and sleeve before disconnecting the cable from the parking brake lever. To remove parking brake cable assembly No. 3 the required hardware must be removed before separating it from the backing plate by disconnecting it from the equalizer. The first step for installation is to position parking brake cable assembly No. 3 on the parking brake equalizer using its clip before torquing bolts to 13 Nm (127 kgf-cm, 9 ft. lbs.) and 8.0 Nm (82 kgf-cm, 71 inch lbs.) as per specification. The installation of parking brake cable assembly No. 1 for automatic transmissions requires temporarily adjusting nut B and lock nut A before securing these components with specified nuts and clamps and bolts followed by attaching it to the parking brake control pedal. When installing the sleeve with pin and clip for manual transmissions execute the same operation. A high-temperature application of grease should come before installing brake shoes for both front and rear sections followed by inspecting the drum brake assembly before final installation of the sub-assembly. Reinstall the parking brake cable joint protector for bench seat types and also reinstall the voltage inverter assembly and center Air Bag sensor assembly and front console boxes for both types of transmissions. The procedure requires installing the rear wheel with 113 Nm torque (1,152 kgf-cm and 83 ft. lbs.) while setting proper rear drum brake shoe clearance. To finish the procedure reconnect the negative battery terminal with a force of 3.9 Nm (40 kgf-cm, 35 inch lbs.) before inspecting the SRS warning light and checking parking brake lever movement then adjusting the parking brake pedal travel if needed.

OEM Toyota Parking Brake Cable

390 Parking Brake Cables found

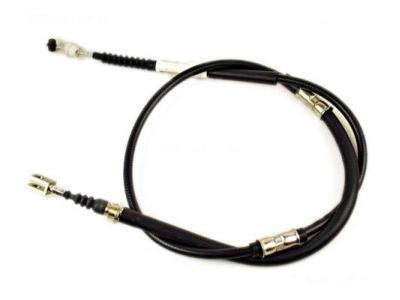

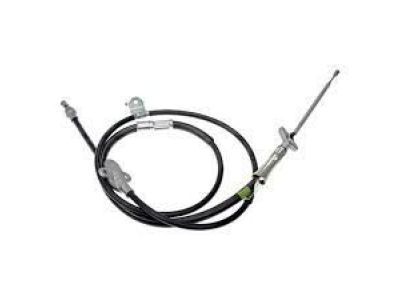

Toyota Rear Cable

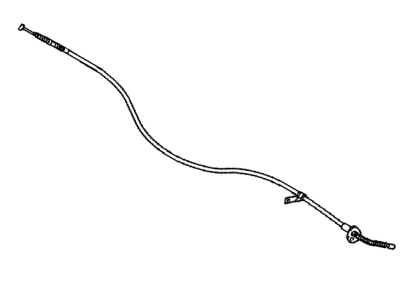

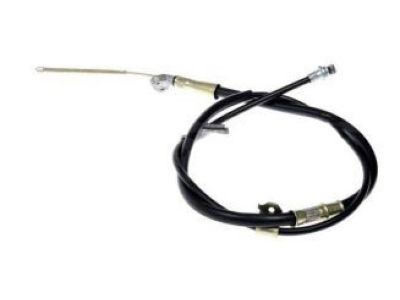

Toyota Cable

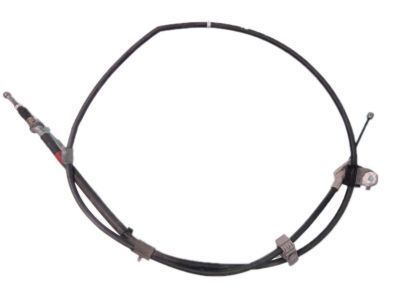

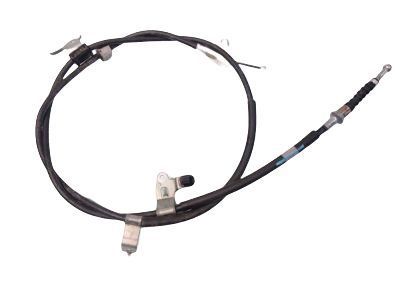

Toyota Rear Cable

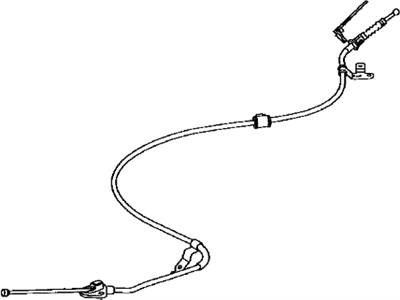

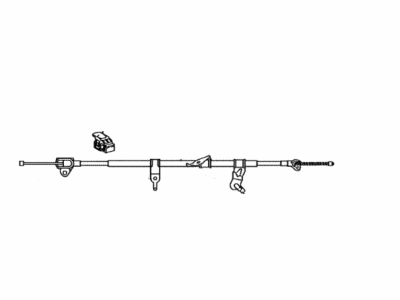

Toyota Rear Cable

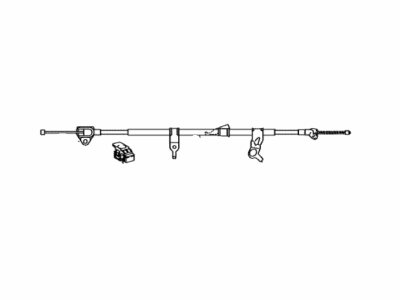

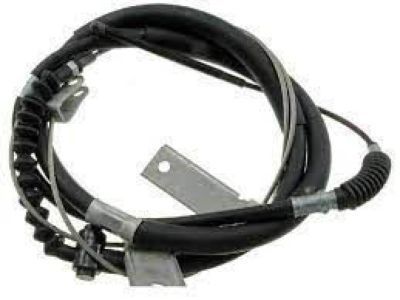

Toyota Rear Cable

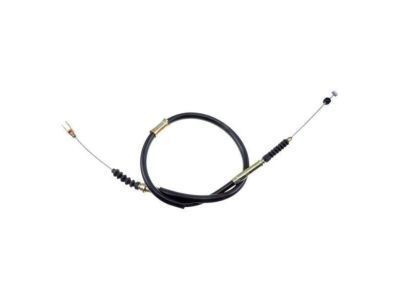

Toyota Rear Cable

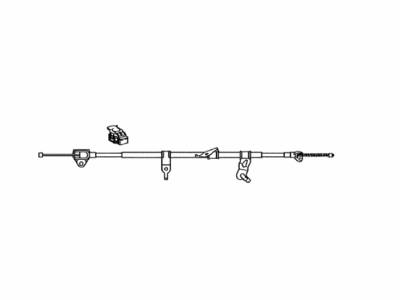

Toyota Rear Cable

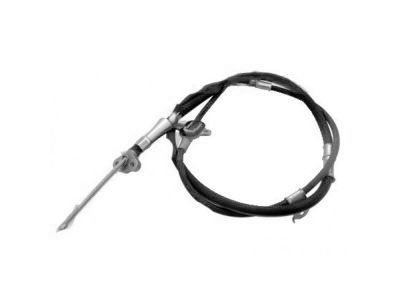

Toyota Rear Cable

Toyota Rear Cable

Toyota Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Rear Cable

Toyota Cable

Toyota Parking Brake Cable

Toyota Parking Brake Cable Parts and Q&A

Related Toyota Parts

Browse Toyota Parking Brake Cable by Models
