OEM Toyota Land Cruiser Parking Brake Cable

Toyota Land Cruiser Parking Brake Cable Parts and Q&A

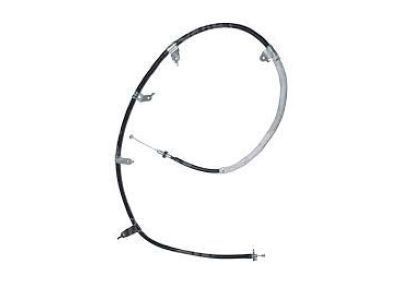

• Rear Cable
  46420-60090
  Q: How to remove the parking brake cable on Toyota Land Cruiser?

  A:

  Proficient removal of the parking brake cable begins with removing the rear wheel first. First disconnect the rear disc brake cylinder assembly LH by removing its 2 bolts while keeping the flexible hose intact before suspending the cylinder with wire attachment. Proceed with the procedure by first taking out the rear disc and continuing through the removal sequence with the Parking Brake Shoe return spring and both No. 1 and No. 2 parking brake shoe assemblies LH before ending with the parking brake shoe lever sub-assembly LH. The vehicle technician should separate the No. 3 parking brake cable assembly from its current position. A cool box should be used to extract refrigerant from the refrigerator system when removing the front seat assembly LH. Proceed to remove the No. 2 instrument panel finish panel cushion, lower instrument panel pad sub-assembly LH, No. 1 instrument panel finish panel cushion, lower instrument panel pad sub-assembly RH, shift lever knob sub-assembly, lower center instrument cluster finish panel sub-assembly, rear upper console panel sub-assembly, console cup holder box sub-assembly, upper console panel sub-assembly, No. 1 cooler cover, rear console end panel sub-assembly, rear console box sub-assembly (if not equipped with a cool box), and the cooling box assembly (if equipped with a cool box). The service process for the No. 2 parking brake cable assembly requires adjustment of the adjusting nut followed by disconnecting it from the No. 1 parking brake pull rod while pinching the claws to push the cable beyond the vehicle edge. The 6 bolts secure the fuel tank while the vehicle inclines at certain angles for accessing both the No. 2 parking brake cable and its clamp. The No. 3 parking brake cable process consists of loosening the adjusting nut then disconnecting it from the No. 1 parking brake pull rod followed by claw pinching and slight cable push outside the vehicle before removing the 6 bolts and the No. 3 parking brake cable with its clamp.
• Cable Assembly, Parking Brake
  46430-60030
  Q: How to install the No. 2 parking brake cable assembly and related components on Toyota Land Cruiser?

  A:

  After installing the No. 2 parking brake cable clamp users must fasten the No. 2 parking brake cable by threading 6 bolts to 13 Nm (127 kgf-cm, 9 ft-lbf). The next step requires you to place the fuel tank while also joining the claws of the No. 2 parking brake cable to the No. 1 parking brake pull rod. The installation process for the No. 3 parking brake cable assembly begins with the installation of the No. 3 parking brake cable clamp followed by attaching the No. 3 cable with 6 bolts at the specified torque along with developing the claws before making the connection to the No. 1 parking brake pull rod. The installation process continues with connecting the No. 3 parking brake cable assembly followed by Parking Brake Shoe lever sub-assembly LH and final installation of No. 2 and No. 1 parking brake shoe assemblies LH together with parking brake shoe return spring. The rear disc installation process requires two bolts that need 95 Nm (969 kgf-cm and 70 ft-lbf) torque to attach the rear disc brake cylinder assembly LH. The brake hose must not be twisted and all bolts need to be free of foreign matter and without damage. Adjust the parking brake lever travel plus install the rear wheel that requires a torque tightening force of 131 Nm (1336 kgf-cm, 97 ft-lbf). Proceed to install the rear console box sub-assembly (w/o Cool Box), the cooling box assembly (w/ Cool Box), the rear console end panel sub-assembly, the No. 1 cooler cover (w/ Cool Box), the upper console panel sub-assembly, the console cup holder box sub-assembly, the rear upper console panel sub-assembly, the lower center instrument cluster finish panel sub-assembly, the shift lever knob sub-assembly, the lower instrument panel pad sub-assembly RH, the No. 1 instrument panel finish panel cushion, the lower instrument panel pad sub-assembly LH, and the No. 2 instrument panel finish panel cushion. The last step involves installing the front seat assembly LH (w/ Cool Box) while operating the Cool Box to charge the refrigerant before warming up the engine for leak testing of refrigerant gas (w/ Cool Box).
