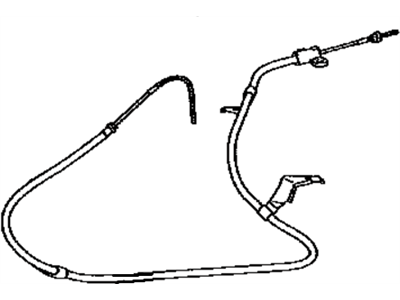

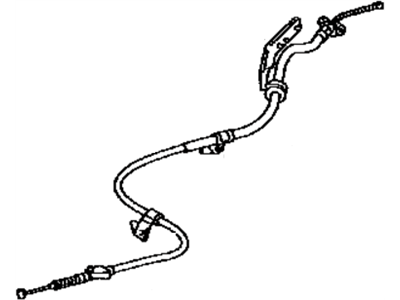

• Rear Cable
  46430-0T010
  Q: How to remove the parking brake cable assembly on Toyota Venza?

  A:

  The first step to remove the parking brake cable starts with taking out the parking brake pedal assembly. The first step to eliminate the No. 1 parking brake cable assembly requires removing the clip while depressing the parking brake pedal to separate it from the parking brake pedal assembly. Then, remove the rear wheel. To detach the No. 4 parking brake cable assembly begin by sliding off the rubber boot then disconnect the vehicle from the parking brake equalizer before removing all 2 bolts together with the assembly. You should now detach the parking brake equalizer by removing the No. 2 and No. 3 parking brake cable assemblies. The operation requires removal of the No. 2 parking brake shoe assembly through using the parking brake shoe lever. The No. 3 parking brake cable assembly requires removing two bolts to detach from the backing plate before you remove its bolt and four nuts with assembly. Apply the same procedure to remove the complete assembly of the No. 2 parking brake cable.

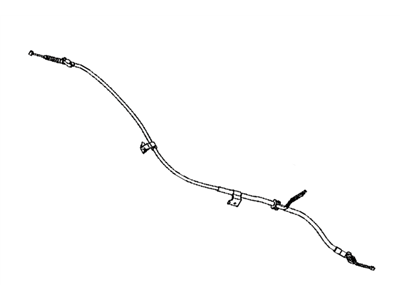

• Front Cable
  46410-0T010
  Q: How to install the No. 3 parking brake cable assembly on Toyota Venza?

  A:

  The installation process requires a bolt and 4 nuts to be tightened according to the specifications that include 5.4 Nm (55 kgf-cm, 48in-lbf) Nut (A) and 6.0 Nm (61 kgf-cm, 53in-lbf) Nut (B) along with 6.0 Nm (61 kgf-cm, 53in-lbf) for the bolt before attaching the assembly to the backing plate with 2 bolts tightened to 8.0 Nm (82 kgf-cm, 71in-lbf). Repeat the installation of the No. 2 parking brake cable assembly according to the provided procedure. Follow the given instructions when installing the No. 2 parking brake shoe assembly with parking brake shoe lever. The rear wheel receives a torque of 103 Nm (1050 kgf-cm, 76ft-lbf) while the No. 2 and No. 3 parking brake cable assemblies get connected to the parking brake equalizer where slits should face upward. The Parking Brake Equalizer becomes connected by the No. 4 parking brake cable assembly through two bolts torqued to 21 Nm (214 kgf-cm, 15ft-lbf) when the rubber boot engagement completes the process. Use the No. 1 parking brake cable assembly to pass through the parking brake pedal assembly and install a new clip before depressing the pedal to bring it to its resting point where you bend the pedal claw to wrap around the cable. Finally, release the pedal after completion. Following instruction install the parking brake pedal assembly. The bed in process for parking brake shoes involves contact with both disc components before adjusting pedal length and checking brake warning indicators.
