How to remove and replace the front upper Control Arm on Toyota Tundra?

The front upper suspension arm replacement process begins with dismounting the front wheel. The first step involves removing the shock absorber with coil spring from the LH side front. The skid control sensor wire needs disconnecting by first removing two bolts to free the wire from its attachment points connecting the knuckle to the upper arm. Before the upper ball joint detachment from the steering knuckle the jack supports the front suspension lower arm LH allowing the removal of its clip and nut so you can use Special Service Tool: 09628-62011. Detach the front fender apron seal LH through clip removal of its 6 clips and apron seal. Then remove the rear LH fender apron seal with its 5 more clips. You must uninstall the front suspension upper arm assembly by disassembling it from its nut as well as bolt together with 2 washers and suspension upper arm.

How to install the front upper Control Arm on the LH side on Toyota Tundra?

The installation of the LH front upper suspension arm requires a temporary connection of the suspension upper arm through two washers and a bolt and nut while stabilizing the suspension before tightening the nut. Proceed with installing the rear LH front fender apron seal through five clips followed by the LH front fender apron seal using six clips. To join the steering knuckle with suspension upper arm, clamp it with a nut and a new cotter pin which demands 110 Nm (1122 kgf-cm, 81 ft-lbf) torque but extension to 60 degrees when the holes are not properly aligned. Install the skid control sensor wire to the steering knuckle and upper arm by fastening it with two bolts and applying Bolt A to 13 Nm (133 kgf-cm, 10 ft-lbf) torque and Bolt B to 29 Nm (296 kgf-cm, 21 ft-lbf). Secure the front shock absorber with coil spring then stabilize the suspension system before tightening the front suspension upper arm assembly nut to 235 Nm (2396 kgf-cm, 173 ft-lbf). The front suspension assembly requires a tightening force of 131 Nm (1336 kgf-cm, 97 ft-lbf) for aluminum wheels and 209 Nm (2131 kgf-cm, 154 ft-lbf) for steel wheels. However, the initial step should involve tightening the front shock absorber with coil spring.

OEM Toyota Tundra Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

20 Control Arms found

View related parts
Toyota Tundra Upper Control Arm, Driver Side
Part Number: 48630-0C011
$294.97 MSRP: $421.15
You Save: $126.18 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Suspension Control Arm, Front Left Upper; Control Arm Assembly; Arm Assembly, Front Suspension, Upper Driver Side; Control Arm
- Position: Upper Driver Side
- Replaces: 48630-0C010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Lower Control Arm, Passenger Side
Part Number: 48068-34020
$232.56 MSRP: $332.04
You Save: $99.48 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right Lower; Arm Sub-Assembly, Front Suspension, Lower Passenger Side; Suspension Control Arm; Control Arm
- Position: Passenger Side
- Replaces: 48068-34030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2003 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Lower Control Arm, Passenger Side
Part Number: 48068-09100
$274.60 MSRP: $392.07
You Save: $117.47 (30%)
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right Lower; Control Arm Assembly; Arm Sub-Assembly, Front Suspension, Lower Passenger Side; Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Upper Control Arm, Driver Side
Part Number: 48630-34010
$218.78 MSRP: $312.36
You Save: $93.58 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Suspension Control Arm, Front Left Upper; Arm Assembly, Front Suspension, Upper Driver Side; Suspension Control Arm; Control Arm
- Position: Upper Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Upper Control Arm, Passenger Side
Part Number: 48610-34010
$238.58 MSRP: $340.63
You Save: $102.05 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Suspension Control Arm, Front Right Upper; Arm Assembly, Front Suspension Upper, Passenger Side; Suspension Control Arm; Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Upper Control Arm, Passenger Side
Part Number: 48610-0C011
$294.97 MSRP: $421.15
You Save: $126.18 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Suspension Control Arm, Front Right Upper; Control Arm Assembly; Arm Assembly, Front Suspension Upper, Passenger Side; Control Arm
- Position: Passenger Side
- Replaces: 48610-0C010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Upper Control Arm, Rear Driver Side
Part Number: 48710-0C050
$148.74 MSRP: $210.57
You Save: $61.83 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Upper Control; Arm Assembly, Upper Control, Rear Driver Side
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Lower Control Arm, Passenger Side
Part Number: 48068-0C011
$319.37 MSRP: $456.00
You Save: $136.63 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right Lower; Arm Sub-Assembly, Front Suspension, Lower Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Lower Control Arm, Driver Side
Part Number: 48069-0C011
$315.53 MSRP: $450.50
You Save: $134.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left Lower; Arm Sub-Assembly, Front Suspension, Lower Driver Side
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Upper Control Arm, Driver Side
Part Number: 48630-0C020
$326.65 MSRP: $466.39
You Save: $139.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Suspension Control Arm, Front Left Upper; Arm Assembly, Front Suspension, Upper Driver Side
- Manufacturer Note: 3" LIFT KIT PACKAGE
- Position: Upper Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Upper Control Arm, Driver Side
Part Number: 48630-0C030
$346.93 MSRP: $495.33
You Save: $148.40 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Arm Assembly, Front Suspension, Upper Driver Side
- Manufacturer Note: TRD PRO PACKAGE
- Position: Upper Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2024 Toyota Tundra | TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Tundra Upper Control Arm, Passenger Side
Part Number: 48610-0C020
$296.95 MSRP: $423.98
You Save: $127.03 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Suspension Control Arm, Front Right Upper; Arm Assembly, Front Suspension Upper, Passenger Side
- Manufacturer Note: 3" LIFT KIT PACKAGE
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Upper Control Arm, Passenger Side
Part Number: 48610-0C030
$346.93 MSRP: $495.33
You Save: $148.40 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Suspension; Arm Assembly, Front Suspension Upper, Passenger Side
- Manufacturer Note: TRD PRO PACKAGE
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2024 Toyota Tundra | TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Tundra Upper Control Arm
Part Number: 48710-0C030
$148.74 MSRP: $210.57
You Save: $61.83 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Upper Control; Arm Assembly, Upper Control, Rear Passenger Side; Arm Assembly, Upper Control, Rear Driver Side
- Position: Upper
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Lower Control Arm, Driver Side
Part Number: 48069-34040
$233.28 MSRP: $333.07
You Save: $99.79 (30%)
Ships in 1 Business Day
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left Lower; Arm Sub-Assembly, Front Suspension, Lower Driver Side; Suspension Control Arm; Control Arm
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Lower Control Arm, Passenger Side
Part Number: 48068-34040
$238.46 MSRP: $340.47
You Save: $102.01 (30%)
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right Lower; Arm Sub-Assembly, Front Suspension, Lower Passenger Side; Suspension Control Arm; Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Lower Control Arm, Driver Side
Part Number: 48069-34020
$230.03 MSRP: $328.43
You Save: $98.40 (30%)
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left Lower; Arm Sub-Assembly, Front Suspension, Lower Driver Side; Suspension Control Arm; Control Arm
- Position: Lower Driver Side
- Replaces: 48069-34030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2003 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Lower Control Arm, Driver Side
Part Number: 48069-09090
$277.00 MSRP: $395.49
You Save: $118.49 (30%)
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left Lower; Control Arm Assembly; Arm Sub-Assembly, Front Suspension, Lower Driver Side; Control Arm
- Position: Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Lower Control Arm, Front Passenger Side
Part Number: 48068-0C020
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right Lower; Control Arm Assembly; Control Arm
- Position: Front Lower Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2008 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Lower Control Arm, Front Driver Side
Part Number: 48069-0C020
Product Specifications
- Other Name: Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left Lower; Control Arm Assembly; Control Arm
- Position: Front Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2008 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS

Toyota Tundra Control Arm

Choose genuine Control Arm that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Control Arm for your Toyota Tundra? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tundra parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Control Arm of Toyota Tundra vehicles also locates at the place, connecting frame to wheels; it supports shocks and springs of suspension. These arms also turn in according to the shapes of roads whereby the wheels are capable of moving up and down. Toyota Tundra Control Arms may be of different shapes and /or of different materials, particularly with the newly designed cast iron or aluminium control arms. As for forging arms, the main maintenance is applied to bushings and ball joints while rust is the most frequent problem of stamped steel arms. The Performance Control Arms are recommended for those who would like more wheel control / alignments or any sort of high-speed, modified vehicles.

Toyota Tundra Control Arm Parts and Q&A

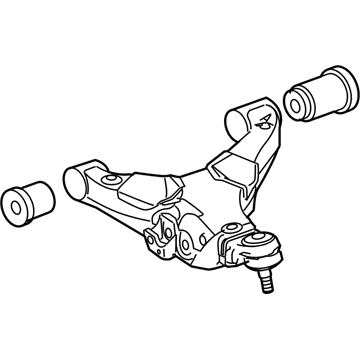

Lower Control Arm, Driver Side
48069-09090
Q: How to remove and replace the front upper Control Arm on Toyota Tundra?
A:
The front upper suspension arm replacement process begins with dismounting the front wheel. The first step involves removing the Shock Absorber with coil spring from the LH side front. The skid control sensor wire needs disconnecting by first removing two bolts to free the wire from its attachment points connecting the knuckle to the upper arm. Before the upper Ball Joint detachment from the Steering Knuckle the jack supports the front suspension lower arm LH allowing the removal of its clip and nut so you can use Special Service Tool: 09628-62011. Detach the front fender apron seal LH through clip removal of its 6 clips and apron seal. Then remove the rear LH fender apron seal with its 5 more clips. You must uninstall the front suspension upper arm assembly by disassembling it from its nut as well as bolt together with 2 washers and suspension upper arm.

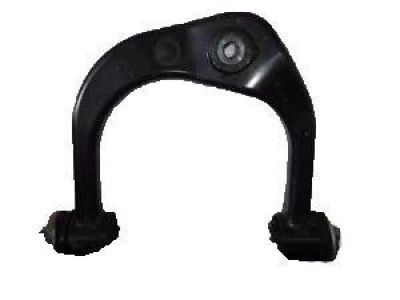

Upper Control Arm, Driver Side
48630-0C011
Q: How to install the front upper Control Arm on the LH side on Toyota Tundra?
A:
The installation of the LH front upper suspension arm requires a temporary connection of the suspension upper arm through two washers and a bolt and nut while stabilizing the suspension before tightening the nut. Proceed with installing the rear LH front fender apron seal through five clips followed by the LH front fender apron seal using six clips. To join the Steering Knuckle with suspension upper arm, clamp it with a nut and a new cotter pin which demands 110 Nm (1122 kgf-cm, 81 ft-lbf) torque but extension to 60 degrees when the holes are not properly aligned. Install the skid control sensor wire to the steering knuckle and upper arm by fastening it with two bolts and applying Bolt A to 13 Nm (133 kgf-cm, 10 ft-lbf) torque and Bolt B to 29 Nm (296 kgf-cm, 21 ft-lbf). Secure the front Shock Absorber with coil spring then stabilize the suspension system before tightening the front suspension upper arm assembly nut to 235 Nm (2396 kgf-cm, 173 ft-lbf). The front suspension assembly requires a tightening force of 131 Nm (1336 kgf-cm, 97 ft-lbf) for aluminum wheels and 209 Nm (2131 kgf-cm, 154 ft-lbf) for steel wheels. However, the initial step should involve tightening the front shock absorber with coil spring.
