How to install the front Sway Bar Kit on Toyota Tundra?

Start the front sway bar kit installation by placing bushes on the outer side of bush stoppers which must have their cut section directed towards the vehicle front. The next step entails the temporary installation of the front sway bar kit through 4 bolts accompanied by sway bar bracket LH and RH. The four bolts must be tightened to 69 Nm which equals 704 kgf-cm or 51 ft-lbf. Install the front sway bar link assembly LH with its bolt and nut but keep them in place temporarily before tightening the nut to 150 Nm (1530 kgf-cm, 111 ft-lbf). Rephrase the mounting process for the front sway bar link assembly on the right-hand side following the previous steps. It is necessary to stabilize the suspension after which torque the front sway bar link assembly LH bolt to 120 Nm (1224 kgf-cm, 89 ft-lbf) and follow the same procedure to tighten the front sway bar link assembly RH bolt. Install the front wheel and torque it to a specific value depending on whether the wheel is aluminum at 131 Nm (1336 kgf-cm, 97 ft-lbf) or if it is steel at 209 Nm (2131 kgf-cm, 154 ft-lbf).

How to remove the rear Sway Bar Kit from the Sport Suspension Package on Toyota Tundra?

The first step to remove the rear sway bar kit from the Sport Suspension Package requires removing the rear wheels after applying 110 Nm of torque (1,150 kgf-cm, 83 ft. lbs.). position the rear axle housing on a jack. Start by detaching the sway bar links when you remove the two nuts and the link while torquing them to 69 Nm (704 kgf-cm, 51 ft. lbs.). A hexagon wrench should be used to stabilize the stud when the ball joint stud accepts rotation when tightened with the nut. Perform this action also on the opposite side. You must take off the four bolts with their accompanying sway bar bushings and brackets from the rear axle housing while applying 29 Nm (296 kgf-cm) torque before separating the sway bar kit from the brackets.

OEM Toyota Tundra Sway Bar Kit

Stabilizer Sway Bar Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Sway Bar Kits found

View related parts

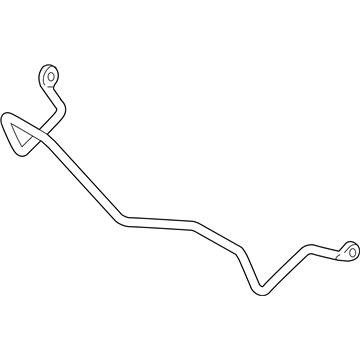

Toyota Tundra Stabilizer Bar, Rear
Part Number: 48812-AF030
$133.15 MSRP: $188.48
You Save: $55.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

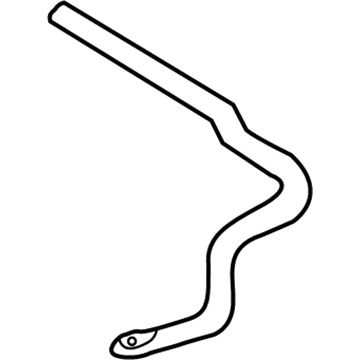

Toyota Tundra Stabilizer Bar, Rear
Part Number: 48812-0C030
$133.23 MSRP: $188.60
You Save: $55.37 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts

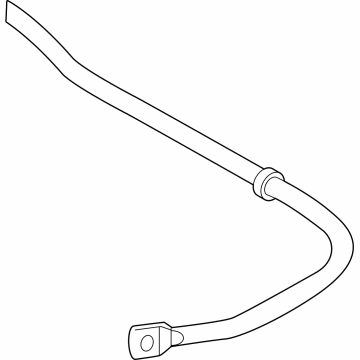

Toyota Tundra Stabilizer Bar, Front
Part Number: 48811-AF040
$154.03 MSRP: $218.05
You Save: $64.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer; Suspension Stabilizer Bar, Front; Sway Bar; Bar, Stabilizer, Front
- Manufacturer Note: W(AIR SUSPENSION)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

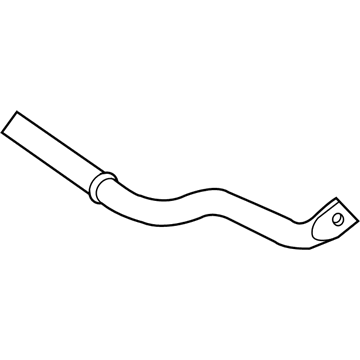

Toyota Tundra Stabilizer Bar, Front
Part Number: 48811-AF030
$159.67 MSRP: $226.04
You Save: $66.37 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer; Suspension Stabilizer Bar, Front; Sway Bar; Bar, Stabilizer, Front
- Manufacturer Note: W(REAR STABILIZER)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Stabilizer Bar, Front
Part Number: 48811-AF021
$134.64 MSRP: $190.61
You Save: $55.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Manufacturer Note: OFF ROAD PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2004 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Stabilizer Bar, Front
Part Number: 48811-AF020
$134.29 MSRP: $190.10
You Save: $55.81 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2002 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Stabilizer Bar, Front
Part Number: 48811-AF011
$111.05 MSRP: $155.87
You Save: $44.82 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2004 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Stabilizer Bar, Front
Part Number: 48811-AF010
$110.03 MSRP: $154.44
You Save: $44.41 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Stabilizer Bar, Front
Part Number: 48811-0C020
$129.59 MSRP: $183.45
You Save: $53.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Manufacturer Note: TRD SPORT
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Stabilizer Bar, Front
Part Number: 48804-0C020
$308.95 MSRP: $441.11
You Save: $132.16 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar Sub-Assembly, Front Stabilizer; Suspension Stabilizer Bar, Front; Bar, Stabilizer, Front
- Manufacturer Note: TRD PRO PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Tundra Stabilizer Bar, Front
Part Number: 48804-0C010
$228.44 MSRP: $326.16
You Save: $97.72 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar Sub-Assembly, Front Stabilizer; Suspension Stabilizer Bar, Front; Bar, Stabilizer, Front
- Manufacturer Note: 3" LIFT KIT PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, SR, SR5 | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS

Toyota Tundra Sway Bar Kit

Choose genuine Sway Bar Kit that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Sway Bar Kit for your Toyota Tundra? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tundra parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Sway Bar Kit specifically targets vehicles such as the Toyota Tundra because the bar links opposite sides of the suspension rack and pinion. Stiffer than the stock part this kit mainly targets the lateral movement of the body when cornering and over bumps which in turn increases body stability. The Sway Bar Kit consists of anti-roll bars that work in an anti-torsion manner so that wheels are as close as possible to being of the same height and avoid any sideways slant. Toyota Tundra have used different types of Sway Bar Kits such as the adjustable and the active anti-roll bar. Such systems can provide the variable level of stiffness for tuned handling and comfort of the ride. Whereas conventional solid sway bars increase the roll stiffness but do not change the vertical spring rates, enhanced versions may include the usage of sensors and hydraulic for real-time actuation of the sway bars and thus evoke the improved driving feel in the Toyota Tundra vehicles.

Toyota Tundra Sway Bar Kit Parts and Q&A

Stabilizer Bar, Front
48811-0C020
Q: How to install the front Sway Bar Kit on Toyota Tundra?
A:
Start the front sway bar kit installation by placing bushes on the outer side of bush stoppers which must have their cut section directed towards the vehicle front. The next step entails the temporary installation of the front sway bar kit through 4 bolts accompanied by sway bar bracket LH and RH. The four bolts must be tightened to 69 Nm which equals 704 kgf-cm or 51 ft-lbf. Install the front sway bar link assembly LH with its bolt and nut but keep them in place temporarily before tightening the nut to 150 Nm (1530 kgf-cm, 111 ft-lbf). Rephrase the mounting process for the front sway bar link assembly on the right-hand side following the previous steps. It is necessary to stabilize the suspension after which torque the front sway bar link assembly LH bolt to 120 Nm (1224 kgf-cm, 89 ft-lbf) and follow the same procedure to tighten the front sway bar link assembly RH bolt. Install the front wheel and torque it to a specific value depending on whether the wheel is aluminum at 131 Nm (1336 kgf-cm, 97 ft-lbf) or if it is steel at 209 Nm (2131 kgf-cm, 154 ft-lbf).
Stabilizer Bar, Rear
48812-AF030
Q: How to remove the rear Sway Bar Kit from the Sport Suspension Package on Toyota Tundra?
A:
The first step to remove the rear sway bar kit from the Sport Suspension Package requires removing the rear wheels after applying 110 Nm of torque (1,150 kgf-cm, 83 ft. lbs.). position the rear axle housing on a jack. Start by detaching the sway bar links when you remove the two nuts and the link while torquing them to 69 Nm (704 kgf-cm, 51 ft. lbs.). A hexagon wrench should be used to stabilize the stud when the ball joint stud accepts rotation when tightened with the nut. Perform this action also on the opposite side. You must take off the four bolts with their accompanying sway bar bushings and brackets from the rear axle housing while applying 29 Nm (296 kgf-cm) torque before separating the sway bar kit from the brackets.
