How to install the lower ball joint assembly front LH and complete the associated components on Toyota Sienna?

The installation of the front LH lower ball joint assembly requires nut tightening to 123 Nm (1,250 kgf-cm, 91 ft-lbf) followed by new cotter pin installation using proper alignment of holes or additional nut tightness up to 60 degrees. Begin by putting on the front axle assembly LH whereas subsequent steps include placement of the front suspension arm sub-assembly lower No.1 LH and then the tie rod assembly LH. Install the front disc followed by the front disc brake caliper assembly LH then speed sensor front LH. Fasten the front axle shaft LH nut followed by the front wheel before executing a torque of 103 Nm (1,050 kgf-cm, 76 ft-lbf) when tightening. Examine front wheel alignment while checking ABS speed sensor signals but refer to the specific ABS inspection and testing methods for vehicles without VSC and use the procedures for the Vehicle Stability Control System for vehicles with VSC.

How to remove the front lower ball joint on Toyota Sienna?

The removal of the front lower ball joint requires beginning with front wheel removal followed by using Special Service Tool: 09930-00010 to remove the front axle shaft LH nut. Begin by separating the speed sensor front LH and after that remove the front disc brake caliper assembly LH. The tie rod assembly LH needs separation through Special Service Tool: 09628-62011 after you remove the front disc. First divide the front suspension arm sub-assembly lower No.1 LH before taking out the front axle assembly LH. Complete the removal of the lower ball joint assembly front LH by first removing its cotter pin and nut before using Special Service Tool: 09628-62011.

OEM Toyota Sienna Ball Joint

Control Arm Joint

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Ball Joints found

View related parts

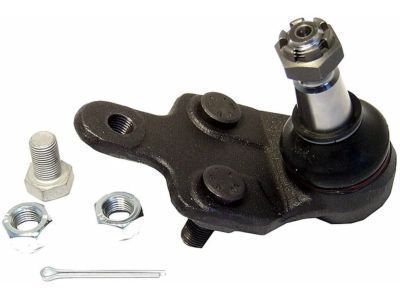

Toyota Sienna Ball Joint, Lower
Part Number: 43330-39435
$70.97 MSRP: $99.62
You Save: $28.65 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front; Joint Assembly, Lower Ball, Front Passenger Side; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint
- Position: Lower
- Replaces: 43330-09050, 43330-39285
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2000 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Sienna Ball Joint, Front Driver Side
Part Number: 43340-09140
$73.22 MSRP: $102.78
You Save: $29.56 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Left; Lower Ball Joint; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | Base, L, LE, Limited, Limited Premium, SE, SE Premium, XLE, XLE Premium | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Ball Joint, Front Driver Side
Part Number: 43340-09010
$65.52 MSRP: $91.97
You Save: $26.45 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Left; Lower Ball Joint; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint
- Position: Front Driver Side
- Replaces: 43340-09080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Lower Ball Joint
Part Number: 43330-09B60
$62.91 MSRP: $88.31
You Save: $25.40 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly Set, Lower; Suspension Ball Joint, Front; Joint Assembly, Lower Ball, Front Passenger Side; Joint Assembly, Lower Ball, Front Driver Side; Ball Joint
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2023 Toyota Sienna | 25th Anniversary Edition, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Sienna Joint Assembly, Lower Ball, Front Passenger Side
Part Number: 43330-09780
$73.81 MSRP: $103.61
You Save: $29.80 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint; Ball Joint
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | Base, L, LE, Limited, Limited Premium, SE, SE Premium, XLE, XLE Premium | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Joint Assembly, Lower Ball, Front Passenger Side
Part Number: 43330-09560
$71.09 MSRP: $99.79
You Save: $28.70 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Set, Lower Ball; Suspension Ball Joint; Ball Joint
- Position: Front Passenger Side
- Replaces: 43330-09160
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Sienna Ball Joint, Lower
Part Number: 43330-09051
$70.14 MSRP: $98.45
You Save: $28.31 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front; Lower Ball Joint; Front Passenger & Driver Side Assembly; Suspension Ball Joint
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.0 L GAS

Toyota Sienna Ball Joint

Choose genuine Ball Joint that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Ball Joint for your Toyota Sienna? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sienna parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Ball Joint is a part of Toyota Sienna vehicles' suspension as well as steering systems and is established between the steering knuckles and control arms. There should be free rotation in two planes but not translation and these ball joints make the vehicle handle better, offer stability and have a comfortable ride than having plain sockets. In the Toyota Sienna vehicles, there are normally upper and lower ball joints but some models of this car has more than two ball joints in the rear suspension. These ball joints are mainly made of steel having a bearing stud and socket and enclosed in a Rubber Boot so that it can accept lubricant in addition to preventing dirt from contaminating it. Present day ball joints are made with improved design; they are designed as a permanent seal thus no frequency of lubrication is needed as in the previous designs.

Toyota Sienna Ball Joint Parts and Q&A

Ball Joint, Front Driver Side
43340-09010
Q: How to install the lower ball joint assembly front LH and complete the associated components on Toyota Sienna?
A:
The installation of the front LH lower ball joint assembly requires nut tightening to 123 Nm (1,250 kgf-cm, 91 ft-lbf) followed by new cotter pin installation using proper alignment of holes or additional nut tightness up to 60 degrees. Begin by putting on the front axle assembly LH whereas subsequent steps include placement of the front suspension arm sub-assembly lower No.1 LH and then the tie rod assembly LH. Install the front disc followed by the front disc Brake Caliper assembly LH then Speed Sensor front LH. Fasten the front Axle Shaft LH nut followed by the front wheel before executing a torque of 103 Nm (1,050 kgf-cm, 76 ft-lbf) when tightening. Examine front wheel alignment while checking ABS speed sensor signals but refer to the specific ABS inspection and testing methods for vehicles without VSC and use the procedures for the Vehicle Stability Control System for vehicles with VSC.
Joint Assembly, Lower Ball, Front Passenger Side
43330-09560
Q: How to remove the front lower ball joint on Toyota Sienna?
A:
The removal of the front lower ball joint requires beginning with front wheel removal followed by using Special Service Tool: 09930-00010 to remove the front Axle Shaft LH nut. Begin by separating the Speed Sensor front LH and after that remove the front disc Brake Caliper assembly LH. The tie rod assembly LH needs separation through Special Service Tool: 09628-62011 after you remove the front disc. First divide the front suspension arm sub-assembly lower No.1 LH before taking out the front axle assembly LH. Complete the removal of the lower ball joint assembly front LH by first removing its cotter pin and nut before using Special Service Tool: 09628-62011.
