Question 1

How to install the parking brake cable on Scion xB?

Accepted Answer

The first step to cable installation requires you to fasten a new parking brake cable support clamp onto the parking brake cable by using the provided 2 claws. You should put the parking brake cable into the disc brake cylinder while using clip claws to fasten it through the rear disc brake cylinder guide. The parking brake cable end needs to attach to the rear disc brake cylinder operation lever before being inserted into the body using 5 bolts at 6.0 Nm (61 kgf-cm, 53 in-lbf) torque. The cable clamp should be activated before installing the rear floor side member cover. Install the front No. 2 floor heat insulator through 3 nuts tightened to 5.5 Nm (56 kgf-cm, 49 in-lbf) and do the same for the front No. 1 floor heat insulator. Hang the center exhaust pipe assembly and secure the front floor center brace. The parking brake cable end stopper can be mounted by fastening the 2 claws onto the parking brake equalizer after which the No. 1 parking brake cable assembly requires placement of the 2 claws into the parking brake cable end stopper. Proceed with same cable installation method for both the No. 3 and No. 2 parking brake cable assemblies to the parking brake equalizer. Mount the console box by inserting 5 bolts which must be torqued to 27Nm (275kgf-cm, 20ft-lbf). Mount the console box followed by installation of console box carpet and upper console panel sub-assembly. Install the rear wheel by applying torque of 103 Nm (1050 kgf-cm, 76 ft-lbf) and perform an exhaust gas leak check.

Question 2

How to remove the parking brake cable on Scion tC?

Accepted Answer

One should start cable removal by disconnecting it from the negative terminal and waiting 90 seconds to avoid Air Bag and seat belt pretensioner commands. The removal of the No. 2 parking brake cable requires the same method as the No. 3 cable procedure. You must begin by taking out the shift lever knob sub-assembly which goes with manual transaxle while following it with front upper console panel sub-assembly, rear upper console panel sub-assembly and finally the rear console box sub-assembly. Proceed to take off the parking brake lever sub-assembly together with front door scuff plate RH and cowl side trim sub-assembly RH. First remove the assembly of front seat RH and center exhaust pipe and parking brake cable heat insulator by unscrewing the two nuts. The No. 1 parking brake cable assembly needs disconnection from the parking brake equalizer and then a floor carpet should be turned back before removing the 2 bolts that secure the parking brake cable. Remove the rear wheel and proceed to take off the rear brake cylinder mounting LH assembly with its rear disc brake cylinder and its rear disc. Proceed to eliminate the parking brake shoe strut LH along with the parking brake shoe adjusting screw set and parking brake shoe assembly LH and parking brake shoe lever LH. The first procedure involves disconnecting the No. 3 parking brake cable assembly through the removal of its bolt and then unfastening it from the backing plate followed by removing the No. 1 fuel tank protector by unthreading its 5 bolts. Finally, the No. 3 parking brake cable assembly disconnects by removing the 4 bolts and body cable retainer before disconnecting from the parking brake equalizer and removing the cable.

Question 3

How to replace the parking brake cable assembly No.3 on Scion xA?

Accepted Answer

The procedure to change parking brake cable assembly No.3 starts by taking out the console box assembly rear followed by loosening wire adjusting nut No.1. The first step involves removing the two bolts that secure the front floor panel brace as well as extracting the exhaust pipe assembly front portion. The front floor heat insulator No.2 and its two bolts need to be removed at this stage. The parking brake cable assembly No.3 separates when installing the four bolts and removing it from both body and parking brake equalizer connections. First dismantle the rear brake drum sub-assembly before removing the front brake shoe then the automatic adjust lever LH and rear brake shoe continues before separating the rear wheel. The next step requires removal of the rear brake parking brake shoe lever sub-assembly followed by disconnecting the parking brake cable assembly No.3 from the backing plate. The new parking brake cable assembly No.3 needs to be attached to the parking brake cable equalizer and secured with four bolts that must be tightened to 5.4 Nm (55 kgf-cm, 48 inch lbs.). Start by applying high-temperature grease followed by installation of the rear brake parking brake shoe lever sub-assembly together with the rear brake shoe along with the rear brake automatic adjust lever LH and front brake shoe through utilization of Special Service Tool: 09718-00010. Check the rear drum brake installation before installing the rear brake drum sub-assembly and adjusting the rear drum brake shoe clearance to complete wheel installation by torquing it to 103 Nm (1,050 kgf-cm, 76 ft. lbs.). Tighten wire adjusting nut No.1 before inserting the two bolts onto front floor heat insulator No.2 and tightening it to 5.5 Nm (55 kgf-cm, 48 inch lbs.). The front section of the exhaust pipe assembly requires two bolts for assembly which must be torqued to 20 Nm (204 kgf-cm, 18 ft. lbs.). At the same time the floor panel brace front needs two bolts with torque setting at 20 Nm (204 kgf-cm, 18 ft. lbs.). The last step includes checking the parking brake lever travel followed by console box assembly install at the rear position and exhaust gas leak inspection.

OEM Scion Parking Brake Cable

23 Parking Brake Cables found

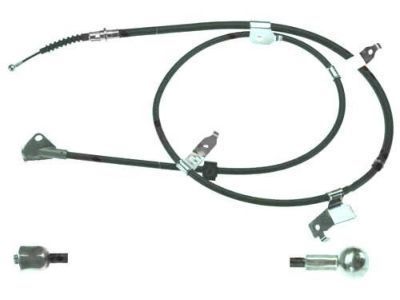

Scion Cable

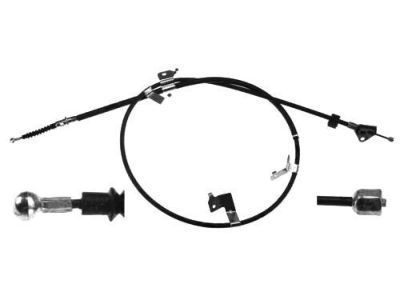

Scion Cable

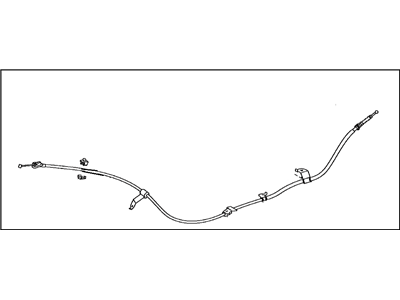

Scion Rear Cable

Scion Cable

Scion Rear Cable

Scion Parking Brake Cable, Center

Scion Parking Brake Cable, Rear

Scion Parking Brake Cable, Front

Scion Front Cable

Scion Rear Cable

Scion Cable

Scion Cable

Scion Cable

Scion Rear Cable

Scion Rear Cable

Scion Rear Cable

Scion Rear Cable

Scion Front Cable

Scion Rear Cable

Scion Rear Cable
