OEM Scion xD Parking Brake Cable

Scion xD Parking Brake Cable Parts and Q&A

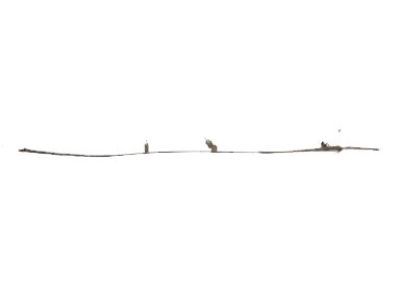

• Rear Cable
  46420-52271
  Q: How to install the parking brake cable assembly and related components on Scion xD?

  A:

  First attach the parking brake cable to the backing plate with the bolt while maintaining 8.0 Nm (82 kgf-cm, 71 in-lbf) torque. First clamp B onto the rear axle beam and properly secure it; when keeping the parking brake cable assembly substitute cable clamp B with a new part. Secure the 4 bolts by tightening them to 6.0 Nm (61 kgf-cm, 53 in-lbf). The parking brake cable needs installation through new cable clamp A before its setup onto the stud bolt while verifying that all connections remain secure. The cable ends of the parking brake cable need to be fastened onto the parking brake pull rod. After installing the right-hand side fuel tank cover vent case sub-assembly the installer should place the front No. 4 floor heat insulator. The installation of the rear brake shoe kit followed by a rear drum brake installation inspection should be performed. After that proceed to install the rear brake drum sub-assembly followed by adjustment of the rear drum brake shoe clearance. You should torque the rear wheel to 103 Nm which equals 1050 kgf-cm or 76 ft-lbf. Test and readjust the park brake lever movement if needed. As a final step install the rear console box sub-assembly and then add the console box carpet and finally place the rear console box cover before ending with the upper console panel and shift lever knob sub-assembly for manual transaxle use.
• Rear Cable
  46430-52270
  Q: How to remove the parking brake cable on Scion xD?

  A:

  The procedure to remove the parking brake cable begins with detaching the shift lever knob sub-assembly for the manual transaxle followed by removing the upper console panel and rear console box cover and console box carpet and rear console box sub-assembly. Proceed by removing the rear wheel and the rear brake drum sub-assembly after which you should remove the rear brake shoe kit. The right-hand side requires removal of the front No. 4 floor heat insulator along with the fuel tank cover vent case sub-assembly. The beginning of the process demands that you adjust the No. 1 wire adjusting nut through the combination of lock nut and wire adjusting nut loosening actions. The process of removing the parking brake cable from the backing plate requires disconnecting cable ends from the parking brake pull rod and then removing cable clamp A from the stud bolt while taking out 4 bolts before breaking cable clamp B to extract it.
