How to install the speed sensor NT for the U341E automatic transaxle on Scion xD?

The installation procedure for speed sensor nt in the U341E automatic transaxle starts with atf treatment of a new O-ring before it is set onto speed sensor nt. You should affix the speed sensor nt with a bolt while tightening it to 5.4 Nm (55 kgf-cm, 48 in-lbf) torque value before connecting the speed sensor nt connector. Begin by installing the battery carrier first and then add the battery tray before placing the battery onto its position. The inspection for automatic transaxle fluid leaks should be conducted after step completion.

How to remove the U341E automatic transaxle speed sensor on Scion xD?

The first step for removing the U341E automatic transaxle speed sensor requires removing the battery followed by the battery tray and subsequently the battery carrier. The next step involves disconnecting the speed sensor NT connector and removing the bolt holding the speed sensor NT before extracting the speed sensor NT. End the removal procedure by taking out the O-ring which is found on the speed sensor NT.

OEM Scion xD Speed Sensor

Speed Control Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Speed Sensors found

View related parts

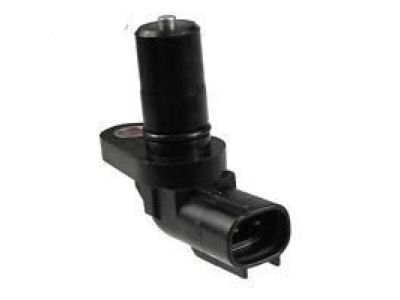

Scion xD Vehicle Speed Sensor
Part Number: 89413-0C011
$111.26 MSRP: $156.17
You Save: $44.91 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Transmission; Input Sensor; Output Sensor; Transmission Revolution Sensors (SP2, NT)
- Manufacturer Note: (L)
- Replaces: 89413-0C010, 89413-32011, 89413-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2014 Scion xD | Base | 4 Cyl 1.8 L GAS
View related parts

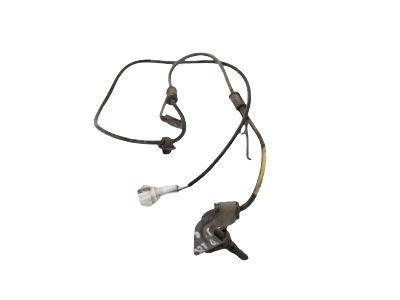

Scion xD ABS Sensor, Front Passenger Side
Part Number: 89542-52120
$227.05 MSRP: $324.17
You Save: $97.12 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Speed, Front Right-Hand; ABS Wheel Speed Sensor, Front Right; Front Speed Sensor; ABS Sensor Wire; Sensor, Speed, Front Passenger Side
- Position: Front Passenger Side
- Replaces: 89542-52060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2014 Scion xD | Base | 4 Cyl 1.8 L GAS
View related parts

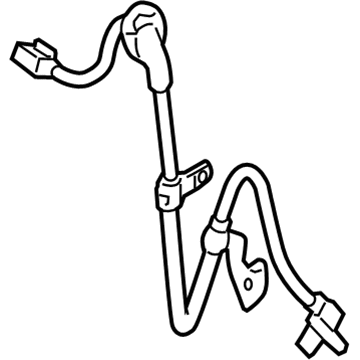

Scion xD ABS Sensor, Front Driver Side
Part Number: 89543-52120
$227.05 MSRP: $324.17
You Save: $97.12 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Speed, Front Left-Hand; ABS Wheel Speed Sensor, Front Left; Front Speed Sensor; ABS Sensor Wire; Sensor, Speed, Front Driver Side
- Position: Front Driver Side
- Replaces: 89543-52060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2014 Scion xD | Base | 4 Cyl 1.8 L GAS
View related parts
Scion xD ABS Sensor, Front Driver Side
Part Number: 89543-52030
$245.22 MSRP: $350.12
You Save: $104.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Speed, Front Left-Hand; ABS Wheel Speed Sensor, Front Left; Front Speed Sensor; ABS Sensor Wire; Sensor, Speed, Front Driver Side; ABS Wheel Speed Sensor
- Position: Front Driver Side
- Replaces: 89543-52050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2009 Scion xD | Base | 4 Cyl 1.8 L GAS
View related parts
Scion xD ABS Sensor, Front Passenger Side
Part Number: 89542-52030
$245.22 MSRP: $350.12
You Save: $104.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Speed, Front Right-Hand; ABS Wheel Speed Sensor, Front Right; Front Speed Sensor; ABS Sensor Wire; Sensor, Speed, Front Passenger Side; ABS Wheel Speed Sensor
- Position: Front Passenger Side
- Replaces: 89542-52050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2009 Scion xD | Base | 4 Cyl 1.8 L GAS
View related parts

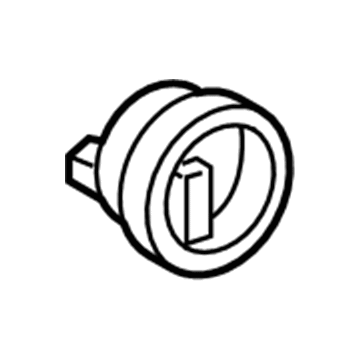

Scion xD ABS Sensor
Part Number: 89544-02070
Product Specifications
- Other Name: Sensor, Skid Control; Speed Sensor; Modulator Valve; Rear Speed Sensor; Sensor Ring
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2011 Scion xD | Base | 4 Cyl 1.8 L GAS

Scion xD Speed Sensor

Choose genuine Speed Sensor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Speed Sensor for your Scion xD? Our website is your one-stop destination. We stock an extensive selection of genuine Scion xD parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Speed Sensor is an important part that greatly improves the dependability as well as power of the Scion xD series. This speed sensor has the capability of measuring the actual speed of the vehicle and at the same time, the rpm (revolutions per minute) of its wheels which is quite vital for automobile systems like the engine and the anti-lock brake (ABS) systems. Adopted to the Scion xD, the modern VSSs and WSSs employ even progressive features like ferromagnetic toothed reluctor rings. These sensors can be passive or active, making sure that the speed measurement is done effectively irrespective the circumstances hence increasing the efficiency and safety. The Speed Sensor is a suitable gadget to use with different types of xD since it enhances the vehicles' performance. It plays an important role of providing exact speed data that is matters for balancing of the auto car and control while acceleration and braking. Furthermore, the Speed Sensor is unique in the automotive market because of its more enhanced signal conditioning and increased reliability that in result brings smoother operation of the automobile. Some of the other features which make the Scion xD safe to drive are anti-lock brakes, traction control, and above all an impressive tire pressure monitoring system which lets the driver know of changes in tire pressure. In summary, the Speed Sensor is an important element in the xD model's construction to enhance safe and stylish driving.

Scion xD Speed Sensor Parts and Q&A

Vehicle Speed Sensor
89413-0C011
Q: How to install the speed sensor NT for the U341E automatic transaxle on Scion xD?
A:
The installation procedure for speed sensor nt in the U341E automatic transaxle starts with atf treatment of a new O-ring before it is set onto speed sensor nt. You should affix the speed sensor nt with a bolt while tightening it to 5.4 Nm (55 kgf-cm, 48 in-lbf) torque value before connecting the speed sensor nt connector. Begin by installing the battery carrier first and then add the battery tray before placing the battery onto its position. The inspection for automatic transaxle fluid leaks should be conducted after step completion.
ABS Sensor, Front Driver Side
89543-52030
Q: How to remove the U341E automatic transaxle speed sensor on Scion xD?
A:
The first step for removing the U341E automatic transaxle speed sensor requires removing the battery followed by the battery tray and subsequently the battery carrier. The next step involves disconnecting the speed sensor NT connector and removing the bolt holding the speed sensor NT before extracting the speed sensor NT. End the removal procedure by taking out the O-ring which is found on the speed sensor NT.
