How to install a Yaw Sensor on Scion xD?

Begin sensor installation by fastening it with two bolts which require 14 Nm (143 kgf-cm, 10 ft-lbf) torque and then connect the sensor connector. Follow this step by attaching the yaw rate and acceleration sensor protector with 2 nuts where the torque should be set at 9.0 Nm (92 kgf-cm, 80 in-lbf). Position the rear console box cover in place while the cable needs to be attached to the negative battery terminal which requires a torque setting of 5.4 Nm (55 kgf-cm, 48 in-lbf). The last step involves performingNonnull with accelerometer sensor zero point calibration which also includes VSC sensor signal inspection.

OEM Scion xD Yaw Sensor

Yaw Rate Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Yaw Sensors found

View related parts

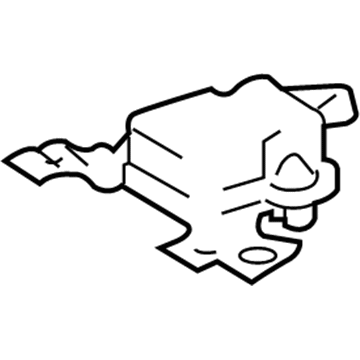

Scion xD Yaw Rate Sensor
Part Number: 89180-52050
$872.00 MSRP: $1277.93
You Save: $405.93 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Yawrate; Suspension Yaw Sensor; Yaw Sensor; Sensor, Yawrate
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2014 Scion xD | Base | 4 Cyl 1.8 L GAS
View related parts
Scion xD Yaw Rate Sensor
Part Number: 89180-52010
$923.94 MSRP: $1354.04
You Save: $430.10 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Yawrate; Sensor, Yawrate
- Manufacturer Note: VEHICLE STABILITY CONT-WITH PUMP UP BA
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2009 Scion xD | Base | 4 Cyl 1.8 L GAS

Scion xD Yaw Sensor

If you're thinking about purchasing OEM parts for your Scion xD, our website is your one-stop destination. We stock an extensive selection of genuine Scion xD Yaw Sensor at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Scion xD Yaw Sensor Parts Questions & Experts Answers

Yaw Rate Sensor
89180-52010
Q: How to install a Yaw Sensor on Scion xD?
A: Begin sensor installation by fastening it with two bolts which require 14 Nm (143 kgf-cm, 10 ft-lbf) torque and then connect the sensor connector. Follow this step by attaching the yaw rate and acceleration sensor protector with 2 nuts where the torque should be set at 9.0 Nm (92 kgf-cm, 80 in-lbf). Position the rear console box cover in place while the cable needs to be attached to the negative battery terminal which requires a torque setting of 5.4 Nm (55 kgf-cm, 48 in-lbf). The last step involves performingNonnull with accelerometer sensor zero point calibration which also includes VSC sensor signal inspection.
