Avalon | 2007-2018 | Base, Hybrid Limited, Hybrid XLE, Hybrid XLE Plus, Hybrid XLE Premium, Hybrid XLE Touring, Limited, Touring, XL, XLE, XLE Plus, XLE Premium, XLE Touring, XLE Touring SE, XLS | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
Camry | 2007-2017 | Base, CE, Hybrid, Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, SE Sport, Special Edition, XLE, XSE | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
Corolla | 2009-2019 | 50th Anniversary Special Edition, Base, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XRS, XSE | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
Corolla iM | 2017-2018 | Base | 4 Cyl 1.8 L GAS
FJ Cruiser | 2012-2014 | Base | 6 Cyl 4.0 L GAS
Highlander | 2008-2013 | Base, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
Land Cruiser | 2013-2021, 2008-2011 | Base, Heritage Edition | 8 Cyl 5.7 L GAS
Matrix | 2009-2013 | Base, S, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
Prius C | 2012-2019 | Four, L, LE, One, Persona Series, Three, Two | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)
RAV4 | 2013-2018 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS

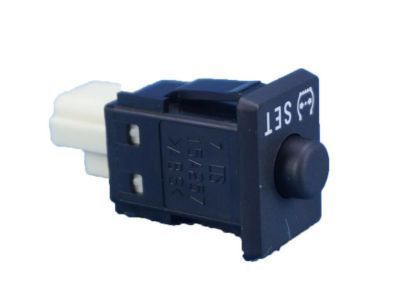

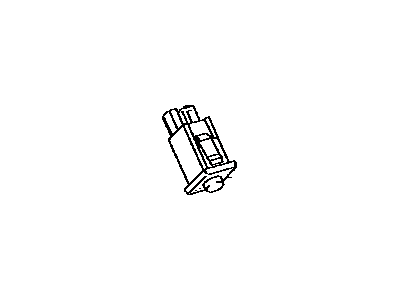

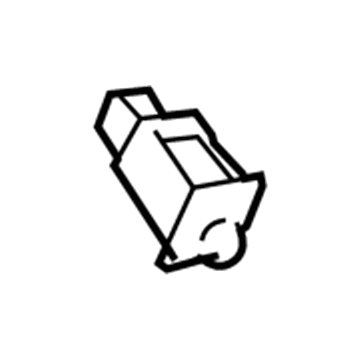

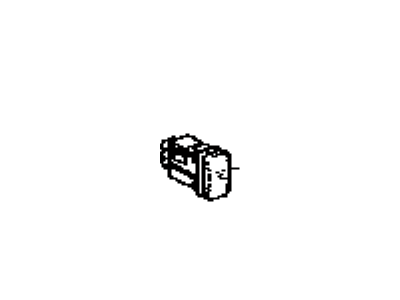

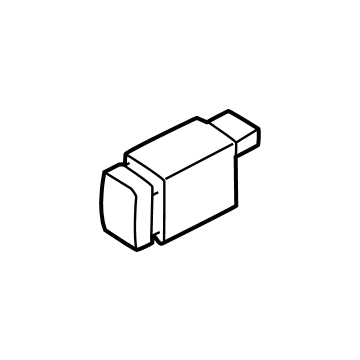

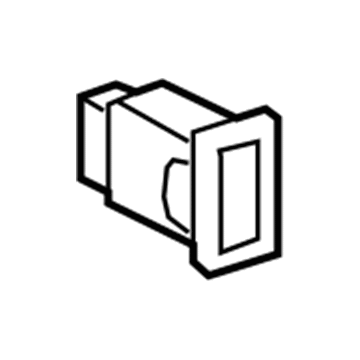

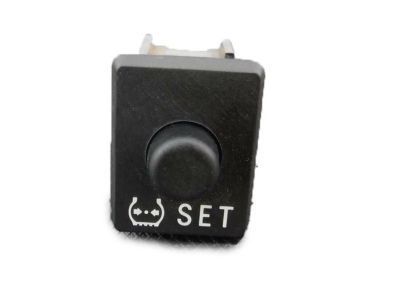

Other Name: Switch, Tire Pressure; TPMS Reset Switch; TPMS Sensor Service Kit; Warning Switch; Switch; Switch, Tire Pressure Warning
Replaces: 84746-47010
Fits the following Toyota Models:
Highlander | 2014-2019 | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
Prius | 2006-2015 | Base, Five, Four, One, Persona Series, Three, Touring, Two | 4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
Prius Plug-In | 2012-2015 | Base | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
Prius V | 2012-2017 | Five, Four, Three, Two | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)

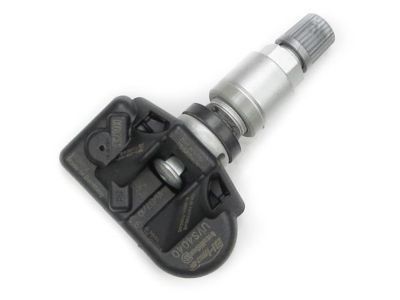

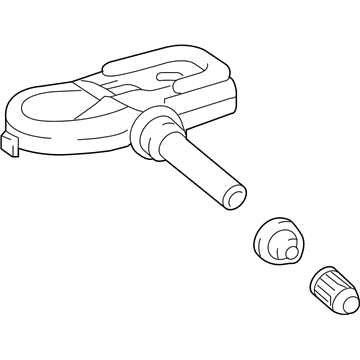

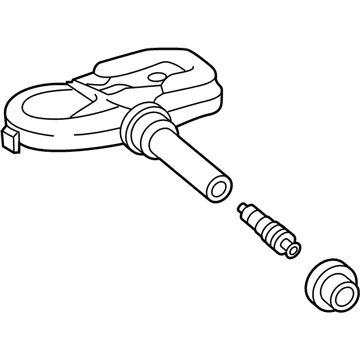

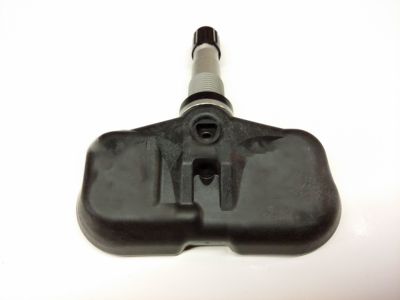

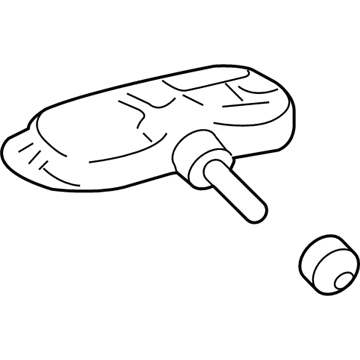

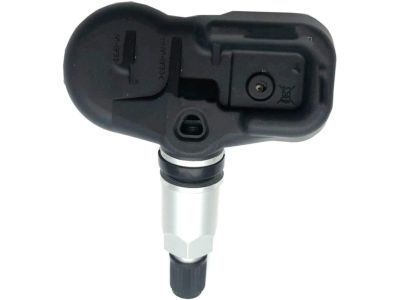

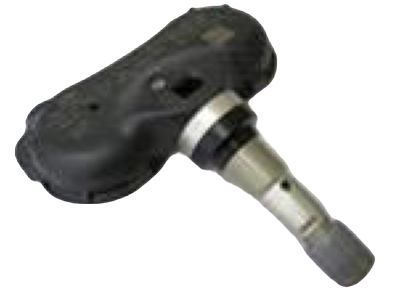

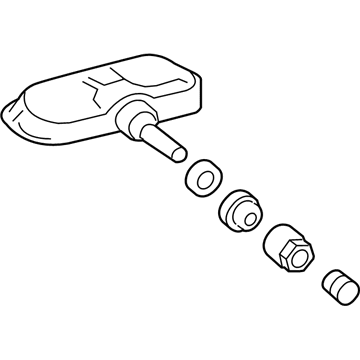

Other Name: Valve Sub-Assembly, Tire; Tire Pressure Monitoring System Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor
Fits the following Toyota Models:
Camry | 2020-2024 | Hybrid LE, Hybrid SE, Hybrid SE Nightshade, Hybrid XLE, Hybrid XSE, L, LE, SE, SE Nightshade, TRD, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
Corolla | 2020-2023 | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, SE Nightshade, XLE, XSE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS

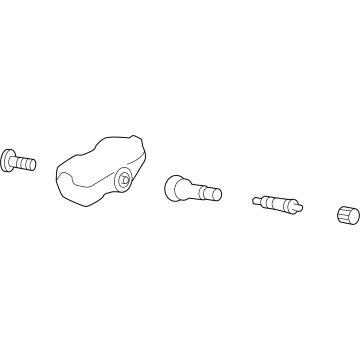

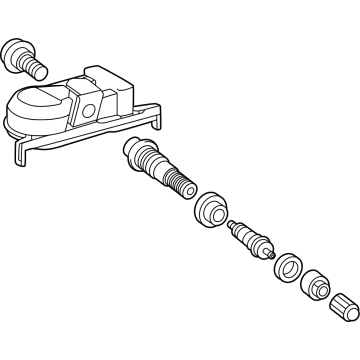

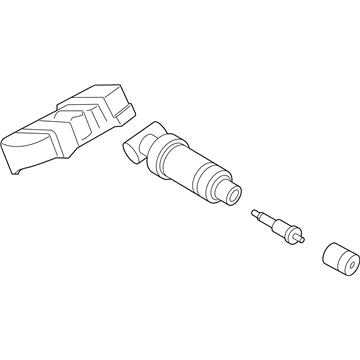

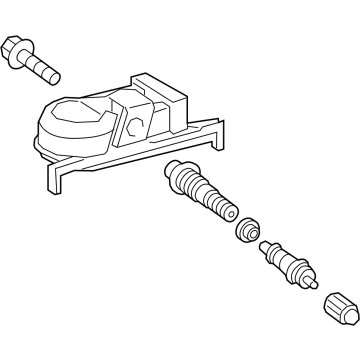

Other Name: Valve Sub-Assembly, Tire; Tire Pressure Monitoring System Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor
Fits the following Toyota Models:
Corolla | 2019-2023 | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, SE Nightshade, XLE, XSE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
RAV4 | 2019-2023 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
Q: How to remove the TPMS Sensor and Transmitter on Toyota 4Runner?
A: First step to eliminate the Tire Pressure Warning Valve and Transmitter requires the uninstallation of front and rear wheels and following steps afterwards. The second step involves taking off both valve cap and core to drain air from the tire. After sufficient tire pressure reduction you should detach the nut and washer that protects the tire pressure warning valve and transmitter so it can fall into the tire cavity. The shoe of a tire remover should be used to disengage the bead but extra caution is needed to protect the sensor from the tire bead interference. Remove the tire bead on the upper side followed by extraction of the tire pressure warning valve and transmitter from the tire space before releasing the lower tire bead. The complete removal of the nut together with the washer and grommet set should be performed even when there is no grommet damage.
Q: How to remove the TPMS Sensor and Transmitter on Toyota Camry?
A: The first step to access the Tire Pressure Warning Valve and Transmitter requires front and rear wheel removal and probably Grand Spare Tire removal too. Removing the tire air pressure requires removal of the valve core and tire cap followed by unfastening the nut and washer securing the tire pressure warning valve and transmitter before it can enter the tire. Save all parts including the valve core and cap together with the nut and washer for reinstallation purposes. The bead separation process for the tire should utilize the shoe of the tire remover while ensuring the valve and transmitter remain unharmed. After taking off the upper bead proceed with removing the tire pressure warning valve and transmitter from inside the tire while removing the lower bead in exactly the same way. Check the grommet for fractures then perform a replacement of the grommet along with washer and nut if faults exist.
Q: How to install the TPMS Sensor and transmitter on Toyota Tacoma?
A: Before installing the tire pressure warning valve and transmitter check the valve component's condition since a new unit provides its own grommet which makes separate grommet installation unnecessary. Push the valve component with transmitter through the inside of the rim until the print surface becomes visible from the valve installation hole. The adjustment of valve and transmitter requires checking for oil or water residues which produce improper installation near the rim hole together with the valve washer and the nut. Additionally you should check for visible damage or foreign substances on the valve and transmitter. The transmission signals may fail to function at fast speeds if the unit faces downwards and you must record new unit identification numbers (IDs). Begin the initialization routine only after you properly register transmitter IDs with the tire pressure warning ECU. The new nut and washer need installation from the rim side before torque specification at 4.0 Nm (41 kgf-cm, 35 in-lbf) and verification of washer and nut cleanliness. The wheel disc needs to be placed on a mounting machine where technicians must position the lower tire bead inside the shaded area to protect the valve and transmitter. Steer clear of the valve and transmitter location when you secure the upper bead. Put the valve core in place then inflate the tire before securing loose valve nuts with the specified torque while testing for leaks using soapy water. Proceed to install the specified air pressure on the tires before fixing the valve and transmitter cap. The front and rear wheels need installation with a torque of 113 Nm (1152 kgf-cm, 83 ft-lbf). The Tire Pressure Warning System initialization must be done while all tires have their proper pressure levels set beforehand. Register transmitter IDs before running this procedure. A proper check of the actual tire pressures should appear in the Data List following all repairs.
