How should the TPMS Sensor and transmitter be disposed of properly on Toyota Corolla?

A proper way exists to discard the tire pressure warning valve and transmitter which operates using lithium batteries. The first step to dispose of the tire pressure warning valve and transmitter involves using a screwdriver to detach its back cover. Use a screwdriver to disconnect the 2 terminals between the battery and base board while keeping in mind the silicone covering over the battery and base board.

How to install the TPMS Sensor and transmitter correctly on Toyota Corolla?

Install the tire pressure warning valve and transmitter by placing it into the valve installation hole through the inside of the rim so the printed surface can be visible. Inspect the valve along with the transmitter because any visible defect and any foreign matter should be free from the inner grommet and rim hole area. The valve and transmitter will suffer damage while operating at high speeds when they are improperly oriented upside down. New valve and transmitter users must record their ID number before installation because subsequent registration in the ECU requires it. Install the new washer on the rim side before installing the new nut with 4.0 Nm torque (41 kgf-cm, 35 in-lbf) which should not exceed beyond the specified torque value. You must check all areas around the rim hole for oil, water or lubricant before using new grommets, washers and nuts because improper installation can happen otherwise. The mounting machine requires the wheel with its lower bead installed while the main body of the valve and transmitter needs to be placed in the defined shaded area to protect them from harm. Put in the upper bead while keeping both the tire bead as well as the tool away from the valve and transmitter. Apply specified torque settings to the valve nut just before you finish inflating your tire. Then examine the tire for leak with the help of soapy water. Before tightening, install the front wheel first using 103 Nm torque setting (1050 kgf-cm and 76 ft-lbf) followed by installation of the rear wheel with this same torque amount. Verify tires while performing the required recording of transmitter IDs. To complete the assessment examine the tire pressure warning system for regular operation.

OEM Toyota Corolla TPMS Sensor

Tire Pressure Monitoring System Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 TPMS Sensors found

View related parts

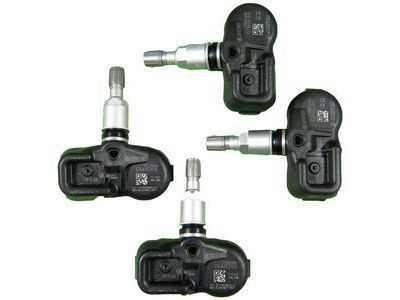

Toyota Corolla TPMS Sensor
Part Number: 42607-33012
$83.41 MSRP: $117.09
You Save: $33.68 (29%)
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; TPMS Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Stem; Tire Sensor; Pressure Sensor; Pressure Valve; Sensor
- Replaces: 42607-34020, 42607-52030, 42607-35030, 42607-52010, 42607-33010, 42607-33011, 42607-35010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2013 Toyota Corolla | Base, L, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts

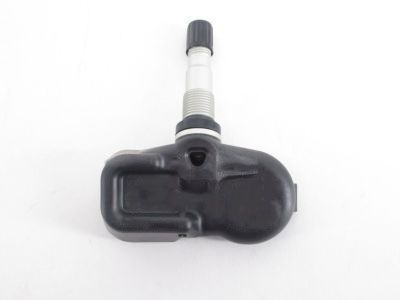

Toyota Corolla TPMS Sensor
Part Number: 42607-06012
$59.42 MSRP: $82.70
You Save: $23.28 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; Tire Pressure Monitoring System Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Tire Sensor; Pressure Sensor; Sensor
- Replaces: 42607-06011, 42607-AD020, 42607-06010, 42607-02010, 42607-0C020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2013 Toyota Corolla | Base, L, LE, S, XLE, XRS | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla Tire Pressure Sensor, Driver Side
Part Number: 84746-AE010
$69.19 MSRP: $97.12
You Save: $27.93 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Tire Pressure; TPMS Reset Switch; TPMS Sensor Service Kit; Pressure Switch; Warning Switch; Switch; Receiver; Indicator; Switch, Tire Pressure Warning
- Position: Driver Side
- Replaces: 84746-50010, 84746-48010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2019 Toyota Corolla | 50th Anniversary Special Edition, Base, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XRS, XSE | 4 Cyl 1.8 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota Corolla TPMS Sensor
Part Number: 42607-33050
$81.40 MSRP: $114.26
You Save: $32.86 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; Tire Pressure Monitoring System Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor (For Spare); Valve Sub-Assembly, Tire Pressure Monitor
- Replaces: 42607-F4010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019 Toyota Corolla | SE, XSE | 4 Cyl 2.0 L GAS
View related parts
Toyota Corolla TPMS Sensor
Part Number: 42607-06020
$77.49 MSRP: $108.76
You Save: $31.27 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; TPMS Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor (For Spare); Valve Sub-Assembly, Tire Pressure Monitor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Corolla | 50th Anniversary Special Edition, L, LE, LE Eco, Le Eco Plus, S, SE, Special Edition, XLE, XSE | 4 Cyl 1.8 L GAS
View related parts
Toyota Corolla TPMS Sensor
Part Number: 42607-02050
$61.70 MSRP: $86.61
You Save: $24.91 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; TPMS Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor (For Spare)
- Replaces: 42607-12010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota Corolla | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, SE Apex, SE Nightshade, XLE, XSE, XSE Apex | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
View related parts
Toyota Corolla TPMS Sensor
Part Number: 42607-12040
$69.96 MSRP: $98.21
You Save: $28.25 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; Tire Pressure Monitoring System Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota Corolla | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, SE Nightshade, XLE, XSE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
View related parts
Toyota Corolla TPMS Sensor
Part Number: 42607-0E090
$58.97 MSRP: $82.09
You Save: $23.12 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2024 Toyota Corolla | Nightshade, SE, XSE | 4 Cyl 2.0 L GAS
View related parts
Toyota Corolla TPMS Sensor
Part Number: 42607-02100
$81.52 MSRP: $114.42
You Save: $32.90 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Sub-Assembly, Tire; Tire Pressure Monitoring System Sensor; TPMS Sensor Service Kit; Tire Pressure Sensor; Valve Sub-Assembly, Tire Pressure Monitor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2023 Toyota Corolla | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, SE, SE Nightshade, XLE, XSE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS

Toyota Corolla TPMS Sensor

Choose genuine TPMS Sensor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM TPMS Sensor for your Toyota Corolla? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Corolla parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Corolla TPMS Sensor is a part of every Toyota Corolla car which is built to last and effectively delivers quality work for ideal results of the car'S safety and performance. This elaborate system ever checks tire pressure and warns drivers of any dangerous changes in the pressure through signals to show that issues of safety need to be checked, which keeps tire conditions checked and improves safety. As for the TPMS, the Toyota Corolla has incorporated both direct TPMS and indirect TPMS in its systems where, dTPMS offer real time pressure measurement and is more accurate compared to i.TPMS even though it offers the user a friendly graphical interface where pressure is estimated through software. Thus, the application of TPMS Sensor technology gives freedom in Flexibility in Frequency to the Toyota Corolla so as to meet the preferences of every driver. Compatibility across several Corolla generations guarantees that drivers will reap maximal advantages with the help of this useful option. This means the Toyota Corolla TPMS Sensor does not only relate to safety, but is proactive by helping to save fuel and ultimately the lifetime of the tire. Also, timely warning provided by the sensor assists in avoiding the cases related to the tires and thus contributes to the trust in the Toyota Corolla's reliability. This sensor is perfect for Toyota Corolla automobiles because it is backed by the company's innovation strategy and safe driving mission statement.

Toyota Corolla TPMS Sensor Parts and Q&A

Tire Pressure Sensor, Driver Side
84746-AE010
Q: How should the TPMS Sensor and transmitter be disposed of properly on Toyota Corolla?
A:
A proper way exists to discard the tire pressure warning valve and transmitter which operates using lithium batteries. The first step to dispose of the tire pressure warning valve and transmitter involves using a screwdriver to detach its back cover. Use a screwdriver to disconnect the 2 terminals between the battery and base board while keeping in mind the silicone covering over the battery and base board.
TPMS Sensor
42607-06012
Q: How to install the TPMS Sensor and transmitter correctly on Toyota Corolla?
A:
Install the tire pressure warning valve and transmitter by placing it into the valve installation hole through the inside of the rim so the printed surface can be visible. Inspect the valve along with the transmitter because any visible defect and any foreign matter should be free from the inner grommet and rim hole area. The valve and transmitter will suffer damage while operating at high speeds when they are improperly oriented upside down. New valve and transmitter users must record their ID number before installation because subsequent registration in the ECU requires it. Install the new washer on the rim side before installing the new nut with 4.0 Nm torque (41 kgf-cm, 35 in-lbf) which should not exceed beyond the specified torque value. You must check all areas around the rim hole for oil, water or lubricant before using new grommets, washers and nuts because improper installation can happen otherwise. The mounting machine requires the wheel with its lower bead installed while the main body of the valve and transmitter needs to be placed in the defined shaded area to protect them from harm. Put in the upper bead while keeping both the tire bead as well as the tool away from the valve and transmitter. Apply specified torque settings to the valve nut just before you finish inflating your tire. Then examine the tire for leak with the help of soapy water. Before tightening, install the front wheel first using 103 Nm torque setting (1050 kgf-cm and 76 ft-lbf) followed by installation of the rear wheel with this same torque amount. Verify tires while performing the required recording of transmitter IDs. To complete the assessment examine the tire pressure warning system for regular operation.
