Question 1

How to install the TPMS Sensor and transmitter on Toyota Avalon?

Accepted Answer

You should place the tire pressure warning valve and transmitter inside the valve installation hole within the rim so its printed surface faces outward. The installation should be checked for visible deformation and damage and foreign matter along the inner grommet and around the rim hole because improper installation may damage the signal transmission system. Record the identification number of new valve and transmitter before installation then register it inside the ECU after setup. The washer should be installed from the rim side where a 4.0 Nm (41 kgf-cm, 35 in-lbf) torque will tighten the nut while inspecting for foreign matter on both components. Check for any damage or foreign materials on both the tire and valve components before deciding if grommet replacement is needed. The installation process requires avoidance of all oil water and lubricants near the rim hole and components to prevent incorrect mounting. Set the wheel disc on the mounting machine before you install the lower tire bead while placing the main body of the valve and transmitter within the designated shaded area to keep out of range from interference. The upper bead installation requires no clamping. Check for tire leaks using soapy water after you apply recommended torque to the valve nut and finish the inflation process. Use a torque of 103 Nm (1,050 kgf-cm, 76 ft-lbf) to install each front and rear wheel and when equipped with a grand spare include its installation. First inspect the tire before moving onto recording the tire pressure warning valve and transmitter ID and performing an inspection of the tire pressure warning system.

Question 2

How to remove the TPMS Sensor and Transmitter on Toyota Avalon?

Accepted Answer

The first step for removing the Tire Pressure Warning Valve and Transmitter involves taking off the front wheel followed by the rear wheel together with the Grand Spare Tire if necessary. The tire air needs to be drained by unwinding the valve core and cap until enough air is released. Once this step is done properly you can take off the nut with washer which holds the tire pressure warning valve and transmitter while allowing it to drop inside the tire. Store all removed components because they will serve for proper reinstallation. The tire bead should be separated after valve and transmitter placement with caution toward avoiding damage to these components from interference with the tire bead. Separate the tire bead on top by following standard procedure and use tools to take out the tire pressure warning valve and transmitter before removing the bead on bottom. Inspect the grommet for any signs of damage before adding the tire pressure warning valve and transmitter. Replacement of the grommet is necessary when damage occurs.

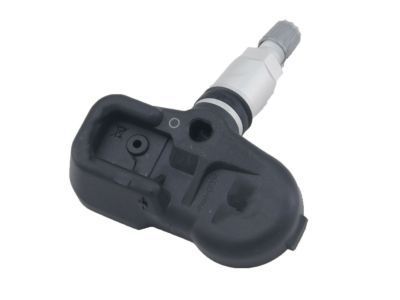

OEM Toyota Avalon TPMS Sensor

6 TPMS Sensors found

Toyota Avalon TPMS Sensor

Toyota Avalon Tire Pressure Sensor, Driver Side

Toyota Avalon TPMS Sensor

Toyota Avalon TPMS Sensor

Toyota Avalon TPMS Sensor

Toyota Avalon TPMS Sensor

Toyota Avalon TPMS Sensor

Toyota Avalon TPMS Sensor Parts and Q&A
