OEM Scion Clutch Master Cylinder

Scion Clutch Master Cylinder Parts Questions & Experts Answers

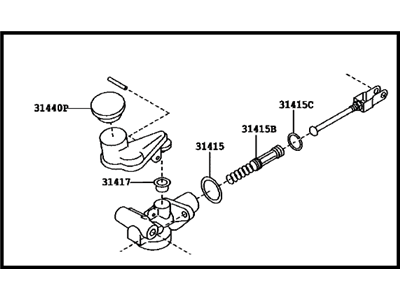

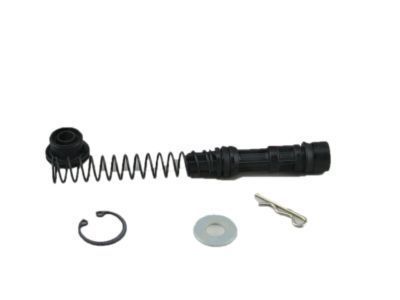

• Cylinder Kit, Clutch Master
  04311-12110
  Q: How to overhaul the Clutch Master Cylinder Assembly (MTM) on Scion xA?

  A: The overhaul procedure for Clutch Master Cylinder Assembly (MTM) starts by removing the brake master cylinder sub-assembly and brake actuator assembly and brake booster assembly and clutch pedal spring and clutch master cylinder push rod clevis with hole pin along with its clip and hole pin. Pull out the clutch fluid while cleaning off each painted surface touched by the fluid. Special Service Tool: 09023-00101 enables users to disconnect the clutch master cylinder to flexible hose tube and disconnect the clutch reservoir tube from the clutch master cylinder assembly. Drain the clutch fluid into a container. The removal process for the clutch master cylinder assembly starts with two nut removal, then proceeds to dismantle the clutch master cylinder kit through slotted spring pin extraction using a pin punch and hammer to remove the inlet union, grommet, unlock the push rod clevis and push rod lock nut before removing both components. Unfasten the boot from the cylinder body then force the push rod while utilizing snap ring pliers to remove the snap ring before pulling the push rod from the cylinder body while paying attention to the possibility of the piston popping out. Unscrew the piston with spring along with the stop plate from the cylinder while keeping the cylinder interior free from damage. When installing the parts use lithium soap base glycol grease before placing the piston with spring inside the cylinder then secure the stop plate to the push rod and put the rod back into the cylinder body using the snap ring. Proceed with fitting the boot followed by lock nut before fixing the push rod clevis but only use the lock nut temporarily while you install new inlet components including the union and grommet before driving the slotted spring pin into place. After installing the clutch master cylinder assembly with two nuts torqued to 12 Nm, use Special Service Tool: 09023-00101 to secure the clutch master cylinder to the flexible hose tube with a torque of 15 Nm. You should connect the clutch reservoir tube with its clip in a straight position while having the white mark pointing upward. The hole pin requires MP grease application before connecting the clutch pedal assembly with the hole pin and installing the clip. The sequence finishes with the installation of clutch pedal spring followed by brake booster assembly and brake actuator assembly while taking out the brake master cylinder sub-assembly. Bleeding of the clutch pipeline requires fluent clutch fluid introduction into the brake reservoir tank followed by clutch system bleeding procedures before torquing the line to 8.4 Nm. The technician should verify fluid levels in reservoirs and inspect clutch pedal assembly adjustments.

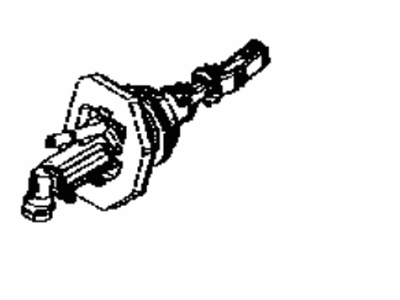

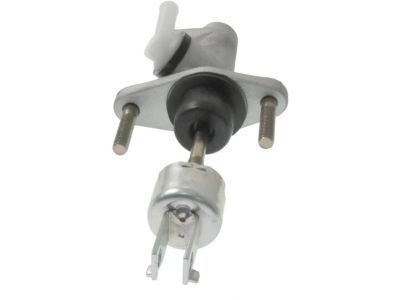

• Master Cylinder
  31420-12030
  Q: How to remove the Clutch Master Cylinder on Scion xB?

  A: The removal of the Clutch Master Cylinder starts with breaking away the brake booster assembly. After removing the clip from the clutch master cylinder push rod clevis you must also detach the push rod clevis from the clutch pedal. Begin by loosening the clip before disconnecting the clutch reservoir tube from the clutch master cylinder while using a container to collect flowing fluid. Use a union nut wrench to disconnect the flexible hose tube while catching the fluid inside a container that should be placed underneath. The last step entails clutch master cylinder assembly extraction through removal of its two securing nuts.

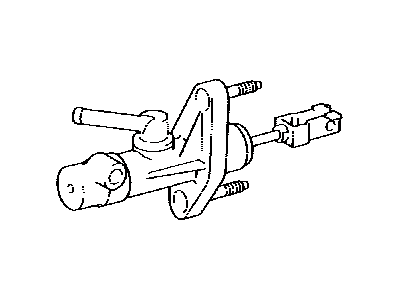

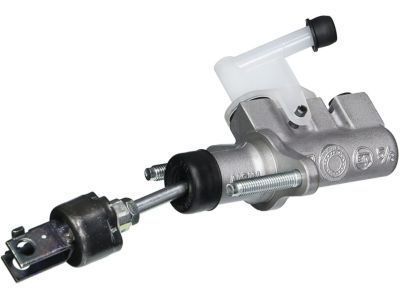

• Master Cylinder
  31420-20070
  Q: How to remove and replace the Clutch Master Cylinder on Scion tC?

  A: The first step to replace the Clutch Master Cylinder is draining brake fluid before immediately washing off all affected painted surfaces. The first step involves removing both brake master cylinder sub-assembly coupled with the brake booster assembly from the vehicle. Remove the clutch reservoir tube by unscrewing the clip while detaining the fluid through a container. Prior to disconnecting the clutch master cylinder flexible hose tube use Special Service Tool: 09023-00101 while placing fluids into a container. The procedure ends with removing the clip and hole pin from the clutch master cylinder push rod clevis hole before extracting the clutch master cylinder assembly by loosening its two retaining nuts.
