How to service and repair the Clutch Slave Cylinder on Toyota Camry?

The Clutch Slave Cylinder repair process starts with disconnecting the clutch line through tool 09023-00100 while trapped fluid collects in a container then torques to 15 Nm (155 kgf-cm 11 ft. lbs.). By using a 12 Nm (120 kgf-cm, 9 ft. lbs.) torque force workers should remove the two bolts which secure the release cylinder before they can extract it. The bleeder plug removal along with boot and push rod extraction leads to piston and spring removal by blowing compressed air into the release cylinder. First apply lithium soap base glycol grease to the piston before inserting it along with the spring into the cylinder and then installing the boot with the push rod followed by the bleeder plug installation at 8.4 Nm (85 kgf-cm, 74 inch lbs.). The reverse process of removal needs to be followed during installation before clutch system bleeding becomes necessary.

How to install the Clutch Slave Cylinder assembly and related components on Toyota Camry?

Begin the clutch release cylinder assembly installation process by using 2 bolts to attach it with the clutch line bracket then torque them to 12 Nm (120 kgf-cm, 9 ft-lbf). After the clutch accumulator assembly installation proceed to attach the clutch line before installing the release cylinder heat insulator. Secure the clutch accumulator bracket then conduct a brake fluid lubrication of the clutch line while maintaining 8.3 Nm (85 kgf-cm, 74 in-lbf) torque in the brake reservoir. Search for fluid leakage through the clutch system following the bleeding process. Put in order the air cleaner case sub-assembly along with the air cleaner cap sub-assembly and the air cleaner inlet assembly. As the last step confirm the reservoir fluid level and connect the negative battery terminal cable.

OEM Toyota Camry Clutch Slave Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Clutch Slave Cylinders found

View related parts

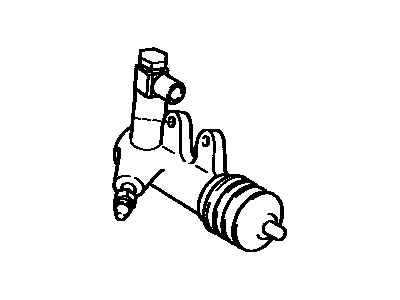

Toyota Camry Slave Cylinder
Part Number: 31470-42031
$73.10 MSRP: $102.62
You Save: $29.52 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Release With Bearing; Clutch Slave Cylinder; Cylinder Assembly, Clutch Release
- Replaces: 31470-42030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2009 Toyota Camry | Base, CE, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts

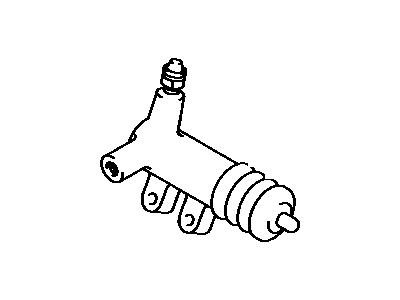

Toyota Camry Cylinder Assembly, Clutch Release
Part Number: 31470-32032
$82.23 MSRP: $115.42
You Save: $33.19 (29%)
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Release With Bearing; Clutch Slave Cylinder
- Replaces: 31470-32030, 31470-32031
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2001, 1989-1991 Toyota Camry | Base, CE, DLX, DLX All Trac, LE, LE All Trac, XLE | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
View related parts

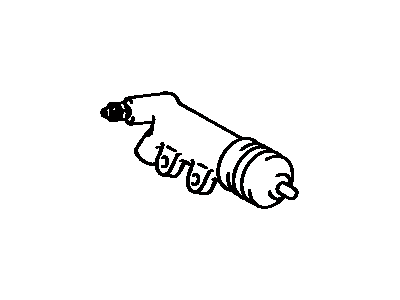

Toyota Camry Slave Cylinder
Part Number: 31400-39006
$241.49 MSRP: $344.80
You Save: $103.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Set, Clutch; Clutch Slave Cylinder; Release Bearing; Cylinder Assembly, Clutch Release W/Bearing
- Replaces: 31400-39005
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2011 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

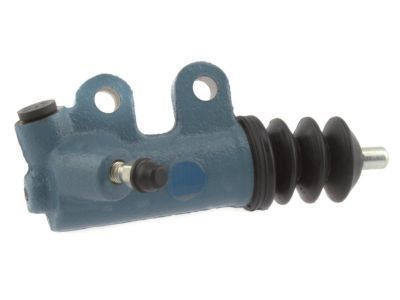

Toyota Camry Slave Cylinder
Part Number: 31470-32023
$73.58 MSRP: $103.28
You Save: $29.70 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Release With Bearing; Clutch Slave Cylinder; Cltch Slave Cylinder
- Replaces: 31470-32010, 31470-32022, 31470-32021, 31470-32020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1988 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 1.8 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Slave Cylinder
Part Number: 31470-28081
$82.70 MSRP: $116.09
You Save: $33.39 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Release With Bearing; Clutch Slave Cylinder
- Replaces: 31470-28080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2003 Toyota Camry | LE, SE, XLE | 4 Cyl 2.4 L GAS
View related parts
Toyota Camry Cylinder Assembly, Clutch Release With Bearing
Part Number: 31470-33010
Product Specifications
- Other Name: CYLINDER ASSY, CLUTC; Clutch Slave Cylinder
- Replaces: 31470-33020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1996 Toyota Camry | DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Slave Cylinder
Part Number: 31470-20210
$97.16 MSRP: $136.37
You Save: $39.21 (29%)
Product Specifications
- Other Name: Cylinder Assembly, Clutch Release With Bearing; Clutch Slave Cylinder; Cltch Slave Cylinder; Cylinder Assembly, Clutch Release
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-1999 Toyota Camry | CE, LE, XLE | 6 Cyl 3.0 L GAS

Toyota Camry Clutch Slave Cylinder

Choose genuine Clutch Slave Cylinder that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Clutch Slave Cylinder for your Toyota Camry? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Camry parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Camry Clutch Slave Cylinder Parts and Q&A

Cylinder Assembly, Clutch Release
31470-32032
Q: How to service and repair the Clutch Slave Cylinder on Toyota Camry?
A:
The Clutch Slave Cylinder repair process starts with disconnecting the clutch line through tool 09023-00100 while trapped fluid collects in a container then torques to 15 Nm (155 kgf-cm 11 ft. lbs.). By using a 12 Nm (120 kgf-cm, 9 ft. lbs.) torque force workers should remove the two bolts which secure the release cylinder before they can extract it. The bleeder plug removal along with boot and push rod extraction leads to piston and spring removal by blowing compressed air into the release cylinder. First apply lithium soap base glycol grease to the piston before inserting it along with the spring into the cylinder and then installing the boot with the push rod followed by the bleeder plug installation at 8.4 Nm (85 kgf-cm, 74 inch lbs.). The reverse process of removal needs to be followed during installation before clutch system bleeding becomes necessary.
Slave Cylinder
31470-42031
Q: How to install the Clutch Slave Cylinder assembly and related components on Toyota Camry?
A:
Begin the clutch release cylinder assembly installation process by using 2 bolts to attach it with the clutch line bracket then torque them to 12 Nm (120 kgf-cm, 9 ft-lbf). After the clutch accumulator assembly installation proceed to attach the clutch line before installing the release cylinder heat insulator. Secure the clutch accumulator bracket then conduct a brake fluid lubrication of the clutch line while maintaining 8.3 Nm (85 kgf-cm, 74 in-lbf) torque in the brake reservoir. Search for fluid leakage through the clutch system following the bleeding process. Put in order the air cleaner case sub-assembly along with the air cleaner cap sub-assembly and the air cleaner inlet assembly. As the last step confirm the reservoir fluid level and connect the negative battery terminal cable.
