OEM Scion Neutral Safety Switch
Transmission Neutral Safety Switch- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
13 Neutral Safety Switches found

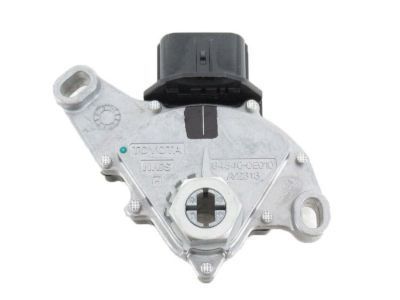

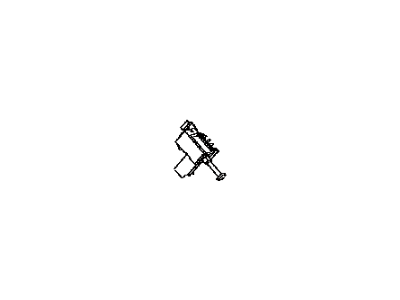

Scion Neutral Safety Switch
Part Number: 84540-0E010$144.51 MSRP: $204.57You Save: $60.06 (30%)Ships in 1 Business DayProduct Specifications- Other Name: Switch Assembly, Neutral; Range Sensor; Switch Assembly, Neutral Start
- Manufacturer Note: (L)
- Replaces: 84540-48010
Scion Neutral Safety Switch
Part Number: 84540-07010$131.35 MSRP: $185.95You Save: $54.60 (30%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Switch Assembly, Neutral; Back Up Light Switch; Range Sensor; Back-Up Switch; Switch Assembly, Neutral Start
- Manufacturer Note: (L)
- Replaces: 84540-33010
Scion Clutch Switch
Part Number: SU003-02489$17.23 MSRP: $22.30You Save: $5.07 (23%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Switch Assembly, Clutch Start
Scion Neutral Safety Switch
Part Number: SU003-00822$23.39 MSRP: $30.28You Save: $6.89 (23%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
Product Specifications- Other Name: Switch, Clutch Start; Switch Assembly, Clutch Start
- Replaces: 84520-52020
Scion Neutral Safety Switch
Part Number: 84520-42010$52.33 MSRP: $72.84You Save: $20.51 (29%)Ships in 1 Business DayProduct Specifications- Other Name: Switch Assembly, Clutch; Clutch Switch; Switch Assembly, Cruise Control Cancel; Switch Assembly, Clutch Start
Scion Range Sensor
Part Number: 84540-52080$143.93 MSRP: $203.75You Save: $59.82 (30%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
Scion Range Sensor
Part Number: 84540-52070$144.51 MSRP: $204.57You Save: $60.06 (30%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Switch Assembly, Neutral; Automatic Transmission Position Switch; Switch Assembly, Neutral Start
Scion Neutral Safety Switch
Part Number: 84540-52050$143.93 MSRP: $203.75You Save: $59.82 (30%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
- Product Specifications
- Other Name: Switch, Neutral; Range Sensor; Switch Assembly, Neutral Start
Scion Range Sensor
Part Number: 84540-74010$143.93 MSRP: $203.75You Save: $59.82 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Switch Assembly, Neutral; Switch Assembly, Neutral Start
Product Specifications- Other Name: Switch Assembly, Clutch; Switch Assembly, Clutch Start
Product Specifications- Other Name: Switch Assembly, Clutch; Switch Assembly, Clutch Start
Scion Neutral Safety Switch Parts and Q&A
- Q: How to install the Park/Neutral Safety Switch Assembly for the U241E automatic transaxle on Scion tC?A:Start the installation of the u241e automatic transaxle Park/Neutral Position Switch Assembly by positioning the switch onto the manual valve shaft and then fixing it using two bolts. The lock plate installation requires a new nut with 6.9 Nm tightness strength (70 kgf-cm, 61 in-lbf). Set the control shaft lever at the 2 positions clockwise from its stop and remove it. After aligning the groove with the neutral basic line users should hold the switch in position before tightening the two bolts to 5.4 Nm (55 kgf-cm, 48 in-lbf). Position the control shaft lever together with its washer and screw it down using a screwdriver which also staked the nut with the lock plate and tighten the fastener to a torque of 13 Nm (132 kgf-cm, 10 ft-lbf). Connect the switch connector. Installation of the transmission control cable assembly requires cable and clip attachment to its bracket followed by a temporary connection of the cable to the lever shaft with the secure nut. The technician must position the engine under cover LH before adjusting the shift lever position for inspection of shift lever alignment. The procedure requires checking of the park/neutral position switch assembly before connecting to the negative battery terminal for performance of initialization activities during which system-specific initialization steps should be noted after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Q: How to service the Neutral Safety Switch on Scion xB?A:Service of the Neutral Safety Switch starts with battery and No. 2 battery carrier removal. Detach the connector which operates the park/neutral position switch assembly first. Disengage the transmission control cable assembly by removing the nut at the control shaft lever and detach the lever at its nut. A screwdriver can be used to detach the lock plate after which another attempt with a screwdriver will separate the manual valve shaft nut and lock plate. To finish disconnect the assembly of the park/neutral position switch by removing its 2 bolts and extracting it from the manual valve lever shaft.
