How to install the Engine Coolant Temperature Sensor on Scion tC?

The installation of the Engine Coolant Temperature Sensor for 2AZ-FE engines requires a new gasket placement on the sensor before proceeding to connect the Special Service Tool 09817-33190. Pass the sensor installation through Special Service Tool: 09817-33190 while tightening it to 19.6 Nm (200 kgf-cm, 14 ft-lbf). Connect the sensor connector after its installation is complete. The installation starts by connecting the cable to the negative battery terminal followed by engine coolant addition. You must check for coolant leaks before completing the initialization procedure when systems need battery cable initialization after reconnection from the negative (-) terminal.

How to service the Coolant Temperature Sensor/Switch for the computer on Scion xB?

Disconnection of the negative battery terminal cable must start with a 90-second wait to avoid activating Air Bags and pretensioners in the Coolant Temperature Sensor/Switch (For Computer) servicing process. Users should first remove the air cleaner assembly before disconnecting the engine wire through removal of two clamps. The sensor connector needs to be disconnected while you proceed to take out the engine coolant temperature sensor and its gasket. New installation begins with fitting a gasket on the sensor after which the sensor must be installed following a 20 N.m (204 kgf.cm, 15 ft.lbf) torque guideline before connecting the sensor connector. Complete the procedure by restoring the engine wire clamps, reattaching the air cleaner assembly then ending with connecting the cable to the negative terminal of the battery.

OEM Scion Coolant Temperature Sensor

Coolant Water Temperature Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Coolant Temperature Sensors found

View related parts

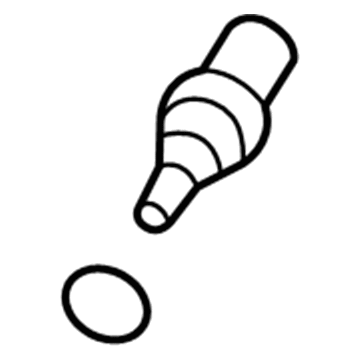

Scion Coolant Temperature Sensor
Part Number: 89422-06010
$65.64 MSRP: $92.13
You Save: $26.49 (29%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Water Temperature; Engine Coolant Temperature Sensor; Coolant Temperature Sensoror; Temperature Sensor; Temperature Sending Unit; Sensor, Water Temperature (For E.F.I.)
Fits the following Scion Models:
- xB | 2006 | Base | 4 Cyl 1.5 L GAS
View related parts

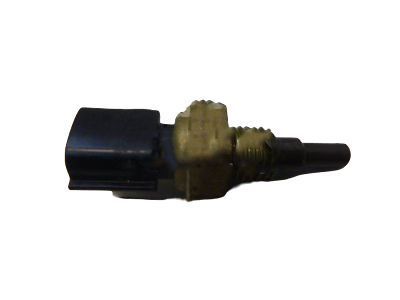

Scion Coolant Temperature Sensor
Part Number: SU003-04714
$18.63 MSRP: $24.12
You Save: $5.49 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Temperature; Engine Coolant Temperature Sensor; Coolant Temperature Sensoror; Temperature Sensor; Sensor, Water Temperature (For E.F.I.); Sensor, Temperature
Fits the following Scion Models:
- FR-S | 2014-2016 | Base | 4 Cyl 2.0 L GAS
View related parts
Scion Coolant Temperature Sensor
Part Number: 89422-33030
$69.78 MSRP: $97.95
You Save: $28.17 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Water Temperature; Engine Coolant Temp; Cooling Fan Temp Switch; Temperature Sensor; Sensor, Water Temperature (For E.F.I.)
Fits the following Scion Models:
- iM | 2016 | Base | 4 Cyl 1.8 L GAS
- iQ | 2012-2015 | Base | 4 Cyl 1.3 L GAS
- tC | 2005-2016 | Base, Spec | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS
- xB | 2008-2015 | Base | 4 Cyl 2.4 L GAS
- xD | 2008-2014 | Base | 4 Cyl 1.8 L GAS
View More
View related parts
Scion Coolant Temperature Sensor
Part Number: 89422-16010
$67.77 MSRP: $95.12
You Save: $27.35 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Water Temperature; Engine Coolant Temperature Sensor; Temperature Sending Unit; Sensor; Sensor, Water Temperature (For E.F.I.)
Fits the following Scion Models:
- xA | 2004-2006 | Base | 4 Cyl 1.5 L GAS
- xB | 2004-2006 | Base | 4 Cyl 1.5 L GAS
View related parts
Scion Coolant Temperature Sensor
Part Number: 89422-22030
$68.84 MSRP: $96.62
You Save: $27.78 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Water Temperature; Engine Coolant Temperature Sensor; Coolant Temperature Sensoror; Temperature Sending Unit; Sensor; Sensor, Water Temperature (For E.F.I.)
Fits the following Scion Models:
- xA | 2004-2006 | Base | 4 Cyl 1.5 L GAS
- xB | 2004-2006 | Base | 4 Cyl 1.5 L GAS
View related parts
Scion Coolant Temperature Sensor
Part Number: SU003-00420
$18.63 MSRP: $24.12
You Save: $5.49 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Temperature; Engine Coolant Temperature Sensor; Coolant Temperature Sensoror; Temperature Sensor; Sensor, Water Temperature (For E.F.I.); Sensor, Temperature
Fits the following Scion Models:
- FR-S | 2013-2014 | Base | 4 Cyl 2.0 L GAS
View related parts
Scion Coolant Temperature Sensor
Part Number: 89422-WB002
$50.51 MSRP: $70.31
You Save: $19.80 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Water Temperature; Engine Coolant Temp; Cooling Fan Temp Switch; Temperature Sensor
Fits the following Scion Models:
- iA | 2016 | Base | 4 Cyl 1.5 L GAS
View related parts
Scion Coolant Temperature Sensor
Part Number: 89422-WB001
$49.83 MSRP: $69.35
You Save: $19.52 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Water Temperature; Engine Coolant Temperature Sensor; Coolant Temperature Sensoror; Sensor, Water Temperature (For E.F.I.)
Fits the following Scion Models:
- iA | 2016 | Base | 4 Cyl 1.5 L GAS

Scion Coolant Temperature Sensor

OEM parts deliver unmatched quality you can rely on. They pass extensive quality control inspections. Scion produces them to the official factory specifications. This process helps prevent defects and imperfections. So you can get exceptional lifespan and a flawless fit. Need new OEM Scion Coolant Temperature Sensor? You'll love our wide selection of genuine options. Shop in minutes and skip the hunt. Our prices are unbeatable, you'll save time and money. It's easy to shop and find the right piece. Our committed customer service team gives professional help from start to finish. Every part includes a manufacturer's warranty. We ship quickly, your parts will arrive fast at your door.

Scion Coolant Temperature Sensor ensures that the engine does not overheat and drivers can push about miles without care. Scion came out in 2003 having small vehicles with an orientation to youthful motorists who desire uniqueness and low trust. The brand abandoned haggling, provided bold paint, and told the owners to make an impression on each ride. Limited Release Series releases, online virtual towns, and music events continued interest buzz out of showroom walls. Scion served as the test ground of Toyota and implemented new concepts that eventually permeated the parent brand. By the year 2016, more than 1,000,000 cars had been sold prior to this experiment, but the experiment continues to have a role to play in small car sales. Scion brought out that young vigor and intelligent naivety could still be paired with a longevity that older customers already believed in. The Coolant Temperature Sensor is located close to the thermostat housing and it transmits real-time heat data to the ECU. That signal varies fuel mix and ignition timing to maintain combustion vigor and to maintain low emissions. A second Coolant Temperature Sensor is applied to activate the dashboard warning earlier than the old style gauges had the chance to respond. Accurate values provided by the Coolant Temperature Sensor make the radiator fan switch intelligently rather than operating continuously. The Coolant Temperature Sensor attaches the gaskets and pistons in a warped position by nailing the unit to the car in traffic jams. Any Scion will gain when the sensors transmit the correct heat information as constant chemistry within the block equates to an increase in its life.

Scion Coolant Temperature Sensor Parts and Q&A

Coolant Temperature Sensor
89422-33030
Q: How to install the Engine Coolant Temperature Sensor on Scion tC?
A:
The installation of the Engine Coolant Temperature Sensor for 2AZ-FE engines requires a new gasket placement on the sensor before proceeding to connect the Special Service Tool 09817-33190. Pass the sensor installation through Special Service Tool: 09817-33190 while tightening it to 19.6 Nm (200 kgf-cm, 14 ft-lbf). Connect the sensor connector after its installation is complete. The installation starts by connecting the cable to the negative battery terminal followed by engine coolant addition. You must check for coolant leaks before completing the initialization procedure when systems need battery cable initialization after reconnection from the negative (-) terminal.
Coolant Temperature Sensor
89422-16010
Q: How to service the Coolant Temperature Sensor/Switch for the computer on Scion xB?
A:
Disconnection of the negative battery terminal cable must start with a 90-second wait to avoid activating Air Bags and pretensioners in the Coolant Temperature Sensor/Switch (For Computer) servicing process. Users should first remove the air cleaner assembly before disconnecting the engine wire through removal of two clamps. The sensor connector needs to be disconnected while you proceed to take out the engine coolant temperature sensor and its gasket. New installation begins with fitting a gasket on the sensor after which the sensor must be installed following a 20 N.m (204 kgf.cm, 15 ft.lbf) torque guideline before connecting the sensor connector. Complete the procedure by restoring the engine wire clamps, reattaching the air cleaner assembly then ending with connecting the cable to the negative terminal of the battery.
