OEM Scion Oil Pressure Switch
Oil Pressure Sender Switch- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
4 Oil Pressure Switches found

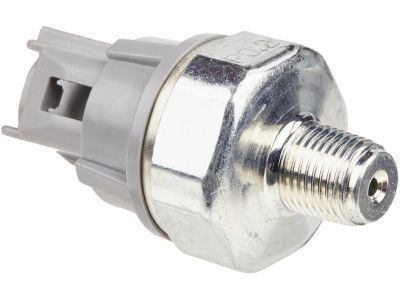

Scion Oil Pressure Sensor
Part Number: 83530-0E010$46.39 MSRP: $64.57You Save: $18.18 (29%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Switch Assembly, Oil Pressure; Engine Oil Pressure Switch; Oil Pres Gauge Switch; Pressure Switch; Oil Pressure Sending Unit; Switch; Switch Assembly, Oil Pressure (For Engine); Oil Pressure Switch
- Replaces: 83530-28020, 83530-AA011, 83530-AA010
Scion Oil Pressure Sending Unit
Part Number: SU003-06104$18.82 MSRP: $24.37You Save: $5.55 (23%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Switch Assembly-Oil Pressure; Engine Oil Pressure Switch; Oil Pressure Switch; Switch Assembly, Oil Pressure (For Engine)
- Replaces: SU003-00523
Scion Oil Pressure Sending Unit
Part Number: 83530-WB004$27.56 MSRP: $38.36You Save: $10.80 (29%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Switch Assembly, Oil Pressure; Engine Oil Pressure Switch; Oil Pressure Switch; Switch Assembly, Oil Pressure (For Engine)
- Replaces: 83530-WB001
Scion Oil Pressure Sending Unit
Part Number: 83530-12060$37.19 MSRP: $51.76You Save: $14.57 (29%)Ships in 1 Business DayProduct Specifications- Other Name: Switch Assembly, Oil Pressure; Oil Pressure Switch; Switch Assembly, Oil Pressure (For Engine)
- Replaces: 83530-12050, 83530-12070
Scion Oil Pressure Switch Parts Questions & Experts Answers
- Q: How to install the engine oil pressure switch assembly on Scion xD?A: Installation of the engine oil pressure switch assembly on a 2ZR-FE lubrication system requires application of Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent adhesive product to 2 or 3 threads of the oil pressure switch. Embed the oil pressure switch into position using a 24 mm deep socket wrench while tightening it to 15 Nm (153 kgf-cm, 11 ft-lbf). One should avoid starting the engine for a minimum period of one hour after completing the installation work. After hooking up the oil pressure switch connector users should check for any possible oil leakage. You should put back the front wheel on the right-hand side while applying a torque of 103 Nm (1050 kgf-cm, 76 ft-lbf).
- Q: How to install the oil pressure switch on Scion xB?A: The installation of the 2AZ-FE lubrication system oil pressure switch requires two or three threads of adhesive from Toyota Genuine Adhesive 1344 or Three Bond 1344 or an equivalent product. The deep socket wrench 24 mm should be used to install the oil pressure switch at a torque value of 15 Nm (153 kgf-cm, 11 ft-lbf). The engine should never be started until 1 hour has passed after installation. Post-installation, you should connect the connector before checking oil levels and examining for engine oil leaks.
