How to install the spark plugs and related components on Toyota Sequoia?

A 16 mm plug wrench should be used to bolt in the 8 spark plugs for the 2UZ-FE engine with a torque of 18 Nm (178 kgf-cm, 13 ft-lbf). Position the 8 ignition coil assemblies with the help of 8 bolts which need to be torqued to 7.5 Nm (76 kgf-cm, 66 in-lbf). Afterward, connect the 8 ignition coil assembly connectors. Next install the Bank 2 air switching valve assembly before attaching both the Bank 2 air tube and No. 2 air injection system hose. Proceed to connect the No. 1 water by-pass pipe before installing the front fender apron seal right-hand side. The technical sequences includes installing the air switching valve assembly for Bank 1 and the No. 3 air tube and the No. 2 air hose then putting on the front fender apron seal LH. To finish the installation place the throttle body cover assembly together with the air cleaner hose assembly.

OEM Toyota Sequoia Spark Plug

Ignition Spark Plug

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Spark Plugs found

View related parts

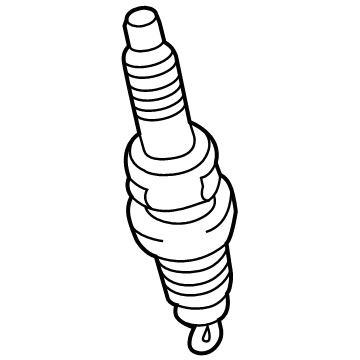

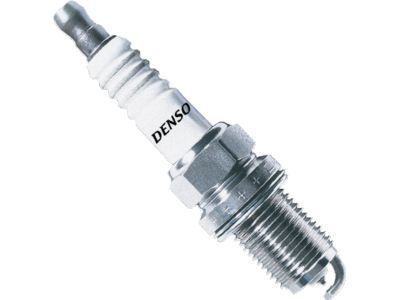

Toyota Sequoia Plug, Spark
Part Number: 90919-01191
$11.10 MSRP: $15.46
You Save: $4.36 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spark Plug
- Replaces: 90919-A1002
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Sequoia Plug, Spark
Part Number: 90919-01295
$18.99 MSRP: $26.43
You Save: $7.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spark Plug
- Replaces: 90919-A1006
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2024 Toyota Sequoia | Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)

Toyota Sequoia Spark Plug

Choose genuine Spark Plug that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Spark Plug for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Spark Plug operates in Toyota Sequoia automobiles as a controlled source of the electric spark that ignites the fuel/air mixture within the cylinders. It works by supplying an electric current from the ignition system into the combustion chamber so as to produce a spark to enable running of the engine. The spark plug contains a metal shell, central electrode and ceramic insulator hence has to operate with high voltage ranging from 12000V - 45000V. In the course of time different kinds of spark plugs are used in Sequoia models, for instance with multiple ground electrodes, and spark surface-discharge spark plugs which help to optimize ignition efficiency and the service life of the spark plug. Routine inspections are also critical in checking if the engine has features of wearing out such as presence of carbon or signs of overheating.

Toyota Sequoia Spark Plug Parts and Q&A

Plug, Spark
90919-01191
Q: How to install the spark plugs and related components on Toyota Sequoia?
A:
A 16 mm plug wrench should be used to bolt in the 8 spark plugs for the 2UZ-FE engine with a torque of 18 Nm (178 kgf-cm, 13 ft-lbf). Position the 8 Ignition Coil assemblies with the help of 8 bolts which need to be torqued to 7.5 Nm (76 kgf-cm, 66 in-lbf). Afterward, connect the 8 ignition coil assembly connectors. Next install the Bank 2 air switching valve assembly before attaching both the Bank 2 air tube and No. 2 air injection system hose. Proceed to connect the No. 1 water by-pass pipe before installing the front fender apron seal right-hand side. The technical sequences includes installing the air switching valve assembly for Bank 1 and the No. 3 air tube and the No. 2 air hose then putting on the front fender apron seal LH. To finish the installation place the throttle body cover assembly together with the air cleaner hose assembly.
