OEM Toyota RAV4 Brake Line

Brake Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

30 Brake Lines found

View related parts

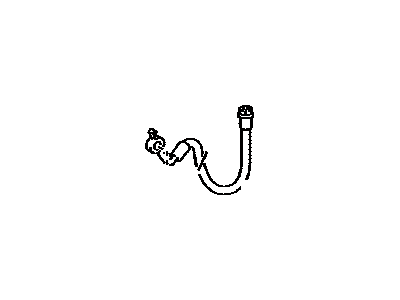

Toyota RAV4 Flex Hose, Rear
Part Number: 90947-02780
$81.52 MSRP: $114.42
You Save: $32.90 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Rear Left, Rear Right; Brake Hose; Brake Line; Hose, Flexible(For Rear Brake Tube); Hydraulic Hose
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts

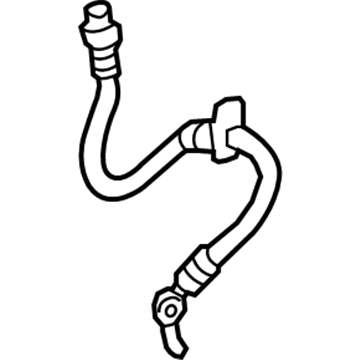

Toyota RAV4 Flex Hose, Passenger Side
Part Number: 90947-A2044
$53.05 MSRP: $73.83
You Save: $20.78 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Hydraulic Hose; Brake Hose; Brake Line; Hose, Flexible(For Rear Passenger Side)
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

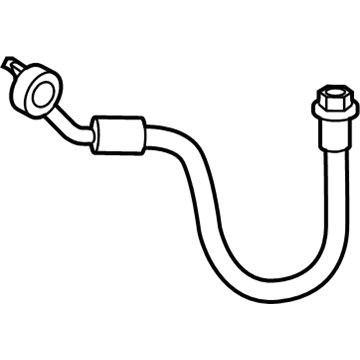

Toyota RAV4 Flex Hose, Front Passenger Side
Part Number: 90947-02781
$81.52 MSRP: $114.42
You Save: $32.90 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Front Right; Brake Hose; Brake Line; Hose, Flexible(For Front); Hydraulic Hose
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts

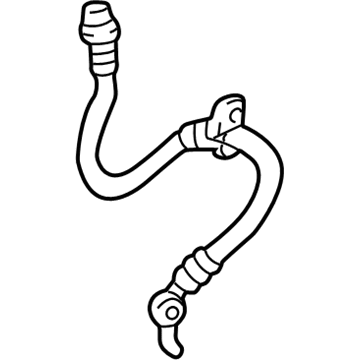

Toyota RAV4 Flex Hose, Front Driver Side
Part Number: 90947-02782
$81.52 MSRP: $114.42
You Save: $32.90 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Front Left; Brake Hose; Brake Line; Hose, Flexible(For Front); Hydraulic Hose
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Flex Hose, Rear Driver Side
Part Number: 90947-02J09
$69.90 MSRP: $98.13
You Save: $28.23 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Rear Left; Brake Hose; Brake Line; Hose, Flexible(For Rear Driver Side); Hydraulic Hose
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Flex Hose, Driver Side
Part Number: 90947-A2138
$73.10 MSRP: $102.62
You Save: $29.52 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hose
- Position: Driver Side
- Replaces: 90947-02J15
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Flex Hose, Front Driver Side
Part Number: 90947-A2080
$93.48 MSRP: $131.22
You Save: $37.74 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Front Left; Brake Hose; Brake Line; Hose, Flexible(For Front); Hydraulic Hose
- Position: Front Driver Side
- Replaces: 90947-02F48
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Flex Hose, Driver Side
Part Number: 90947-A2043
$121.72 MSRP: $172.31
You Save: $50.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Hydraulic Hose; Brake Hose; Brake Line; Hose, Flexible(For Front)
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Flex Hose, Passenger Side
Part Number: 90947-02C54
$90.76 MSRP: $127.40
You Save: $36.64 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Front Right; Brake Hose; Brake Line; Hose, Flexible(For Front); Brake Hydraulic Hose; Hydraulic Hose
- Manufacturer Note: RH
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota RAV4 Flex Hose, Passenger Side
Part Number: 90947-A2137
$72.75 MSRP: $102.12
You Save: $29.37 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hose
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Hose, Flexible(For Front), Passenger Side
Part Number: 90947-02J10
$65.16 MSRP: $91.47
You Save: $26.31 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Hydraulic Hose; Brake Hose; Brake Line
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Flex Hose, Rear Driver Side
Part Number: 90947-A2045
$53.05 MSRP: $73.83
You Save: $20.78 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Hydraulic Hose; Brake Hose; Brake Line; Hose, Flexible(For Rear Driver Side)
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Brake Hose, Passenger Side
Part Number: 90947-02D02
$53.05 MSRP: $73.83
You Save: $20.78 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Rear Right Outer; Brake Line; Hose, Flexible(For Rear Passenger Side); Brake Hydraulic Hose; Hydraulic Hose
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota RAV4 Brake Hose, Rear Driver Side
Part Number: 90947-02D03
$53.05 MSRP: $73.83
You Save: $20.78 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Rear Left Outer; Brake Line; Hose, Flexible(For Rear Driver Side); Brake Hydraulic Hose; Hydraulic Hose
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota RAV4 Flex Hose, Rear Driver Side
Part Number: 90947-A2082
$49.34 MSRP: $68.68
You Save: $19.34 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Rear Left; Brake Hose; Brake Line; Hose, Flexible(For Rear Driver Side); Hydraulic Hose
- Position: Rear Driver Side
- Replaces: 90947-02G80
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Flex Hose, Front Passenger Side
Part Number: 90947-A2115
$65.16 MSRP: $91.47
You Save: $26.31 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Front Right; Brake Hose; Brake Line; Hose, Flexible(For Front); Hydraulic Hose
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Hose, Flexible(For Front), Driver Side
Part Number: 90947-02J11
$65.16 MSRP: $91.47
You Save: $26.31 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Hydraulic Hose; Brake Hose; Brake Line
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Flex Hose, Passenger Side
Part Number: 90947-A2081
$49.34 MSRP: $68.68
You Save: $19.34 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Rear Right; Brake Hose; Brake Line; Hose, Flexible(For Rear Passenger Side); Hydraulic Hose
- Position: Passenger Side
- Replaces: 90947-02G79
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Hose, Flexible(For Front), Driver Side
Part Number: 90947-A2116
$65.16 MSRP: $91.47
You Save: $26.31 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Hydraulic Hose; Brake Hose; Brake Line
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Flex Hose, Passenger Side
Part Number: 90947-A2113
$69.90 MSRP: $98.13
You Save: $28.23 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Flexible; Brake Hydraulic Hose, Rear Right; Brake Hose; Brake Line; Hose, Flexible(For Rear Passenger Side); Hydraulic Hose
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS

| Page 1 of 2 |Next >

1-20 of 30 Results

Toyota RAV4 Brake Line

Choose genuine Brake Line that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Brake Line for your Toyota RAV4? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota RAV4 Brake Line Parts and Q&A

Flex Hose, Front Driver Side
90947-02F50
Q: How to install the front Brake Line on Toyota RAV4?
A:
The front brake flexible hose installation process should be performed identically on both LH and RH sides but the upcoming steps pertain to the LH side. Install the flexible hose by connecting new gaskets with a union bolt to the disc brake cylinder. Also verify the flexible hose identification color. The torque setting for the union bolt is 29.4 Nm. Keeping a torque of 29.4 Nm (300 kgf-cm, 22 ft-lbf) is necessary for this connection. The flexible hose lock needs installation into the lock hole of the cylinder before setting the flexible hose clamp on the flexible hose bracket. Hook part A of the sensor clamp should hang from flexible hose bracket C simultaneously while hook part B should enter flexible hose bracket D. Use a torque wrench to tighten the bolt (labeled C) to 18.5 Nm (189 kgf-cm, 14 ft-lbf) for fixing the flexible hose clamp and sensor clamp before installing the flexible hose with the bolt (labeled D) at exactly the same torque. Attach the flexible hose to its connecting point with the brake tube (A) while using a new clip (B). Follow Step 10 of SMR: Brake/Master Cylinder Replacement. Special Service Tool 09023-00101 helps during the process by attaching the flexible hose to brake tube (A) while using a wrench for light torquing that reaches 15.2 Nm (155 kgf-cm, 11 ft-lbf) without the tool or 14 Nm (144 kgf-cm, 10 ft-lbf) with tool assistance. Apply extreme caution when attaching the brake tubes because curving the tube should be prohibited and the connection point needs protection from foreign substances. Fill the reservoir with brake fluid and bleed the Brake Master Cylinder and brake line and ABS and traction actuator assembly to remove air before inspecting the fluid level along with checking for leaks then install the front wheel at 103 Nm (1,050 kgf-cm, 76 ft-lbf).
Flex Hose, Passenger Side
90947-A2044
Q: How to remove the rear Brake Line on Toyota RAV4?
A:
Begin the process of removing the rear brake flexible hose by taking off the rear wheel followed by draining brake fluid while washing away any fluid that touches painted parts immediately. A union nut wrench (10 mm) should be used to disconnect brake tube (labeled A) from the flexible hose while holding the flexible hose with a wrench since this process must avoid bending or damaging the brake tube and foreign matter entrance at the connection point. The maintenance sequence includes removing the clip (marked B), then the union bolt along with the gasket, until you detach the flexible hose from the disc brake cylinder.
