How to remove the Vacuum Brake Booster on Toyota RAV4?

The Vacuum Brake Booster removal process begins with disassembling either the air cleaner case sub-assembly for 2AR-FE models or using the air cleaner case for 2GR-FE vehicles. To start, properly drain the brake fluid but immediately wash away fluid which touches painted surfaces. Begin by disconnecting the brake lines followed by removing the ABS and traction actuator assembly together with its bracket and the brake master cylinder sub-assembly. First disconnect the vacuum hose before removing the push rod pin from its clevis by unclipping the push rod pin and pulling out the pin. Before removing the push rod clevis users must loosen its lock nut before pulling it out. Disconnect the brake booster assembly through the process of removing four nuts to extract it along with its attached gasket. Finish the task by taking out the brake booster gasket and brake vacuum check valve assembly along with the check valve grommet.

How to install the vacuum brake booster on Toyota RAV4?

The check valve grommet must be fitted to the booster before installing the brake vacuum check valve assembly onto the grommet. Set a new brake booster gasket on the booster before connecting the brake master cylinder push rod clevis. Tighten the push rod clevis lock nut only partially as you will set the specified torque during subsequent brake pedal height adjustment. Fasten and tighten the brake booster assembly with four nuts to reach 13 Nm torque value (130 kgf-cm or 9 ft-lbf). Use lithium soap base glycol grease to treat the push rod pin followed by installing it into the push rod clevis before securing it with a clip according to the provided illustration. Adjust and check the brake booster push rod before you install the master cylinder assembly with its sub-components and vacuum hose to the check valve. Position the ABS and traction actuator assembly with bracket before connecting brake lines and filling the reservoir with brake fluid then bleeding air from the brake master cylinder as well as the brake line and ABS and traction actuator assembly. After installation you must verify that the brake pedal height and free play as well as reserve distance are correct while checking the reservoir fluid level and inspecting for brake fluid leaks before installing the air cleaner case sub-assembly for 2AR-FE or the air cleaner case for 2GR-FE accordingly.

OEM Toyota RAV4 Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Brake Boosters found

View related parts

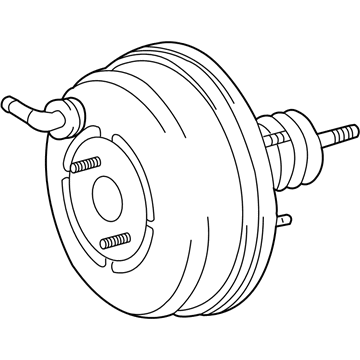

Toyota RAV4 Brake Booster
Part Number: 44610-0R060
$574.19 MSRP: $841.48
You Save: $267.29 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Replaces: 44610-42380
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota RAV4 | Adventure, Limited, Platinum, XLE | 4 Cyl 2.5 L GAS
View related parts

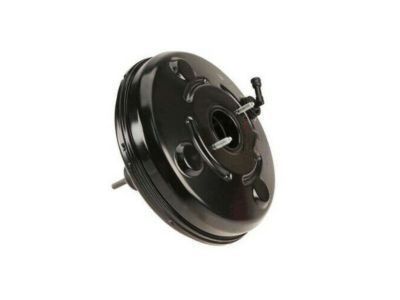

Toyota RAV4 Brake Booster
Part Number: 44610-42321
$716.06 MSRP: $1049.39
You Save: $333.33 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Manufacturer Note: THIRD SEAT-WITH(2PERSONS)
- Replaces: 44610-42320
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2011 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

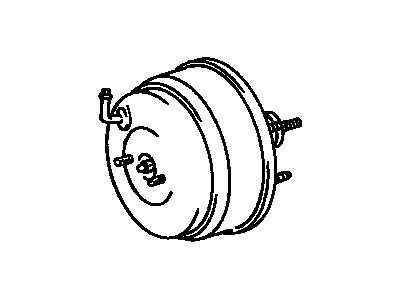

Toyota RAV4 Brake Booster
Part Number: 44610-42301
$686.78 MSRP: $1006.48
You Save: $319.70 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Replaces: 44610-42300
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2011 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-42170
$675.36 MSRP: $989.74
You Save: $314.38 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Booster Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-0R131
$599.95 MSRP: $879.23
You Save: $279.28 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022 Toyota RAV4 | LE, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-0R130
$658.86 MSRP: $965.56
You Save: $306.70 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Replaces: 44610-42510
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-0R120
$600.97 MSRP: $880.73
You Save: $279.76 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Manufacturer Note: MEXICO SPEC
- Replaces: 44610-42500
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-0R050
$574.19 MSRP: $841.48
You Save: $267.29 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Replaces: 44610-42360
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2018 Toyota RAV4 | LE | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-0R021
$609.48 MSRP: $893.21
You Save: $283.73 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Manufacturer Note: THIRD SEAT-WITH
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-0R011
$609.48 MSRP: $893.21
You Save: $283.73 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly, Brake; Power Brake Booster; Booster Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-42020
Product Specifications
- Other Name: Booster Assembly, Brake
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-42131
Product Specifications
- Other Name: Booster Assembly, Brake; Booster Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.4 L GAS
View related parts
Toyota RAV4 Brake Booster
Part Number: 44610-42130
Product Specifications
- Other Name: Booster Assembly, Brake; Booster Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2002 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS

Toyota RAV4 Brake Booster

Choose genuine Brake Booster that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Brake Booster for your Toyota RAV4? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota RAV4 Brake Booster Parts and Q&A

Brake Booster
44610-42301
Q: How to remove the Vacuum Brake Booster on Toyota RAV4?
A:
The Vacuum Brake Booster removal process begins with disassembling either the air cleaner case sub-assembly for 2AR-FE models or using the air cleaner case for 2GR-FE vehicles. To start, properly drain the brake fluid but immediately wash away fluid which touches painted surfaces. Begin by disconnecting the Brake Lines followed by removing the ABS and traction actuator assembly together with its bracket and the Brake Master Cylinder sub-assembly. First disconnect the vacuum hose before removing the push rod pin from its clevis by unclipping the push rod pin and pulling out the pin. Before removing the push rod clevis users must loosen its lock nut before pulling it out. Disconnect the brake booster assembly through the process of removing four nuts to extract it along with its attached gasket. Finish the task by taking out the brake booster gasket and brake vacuum check valve assembly along with the check valve grommet.
Brake Booster
44610-0R021
Q: How to install the vacuum brake booster on Toyota RAV4?
A:
The check valve grommet must be fitted to the booster before installing the brake vacuum check valve assembly onto the grommet. Set a new brake booster gasket on the booster before connecting the Brake Master Cylinder push rod clevis. Tighten the push rod clevis lock nut only partially as you will set the specified torque during subsequent brake pedal height adjustment. Fasten and tighten the brake booster assembly with four nuts to reach 13 Nm torque value (130 kgf-cm or 9 ft-lbf). Use lithium soap base glycol grease to treat the push rod pin followed by installing it into the push rod clevis before securing it with a clip according to the provided illustration. Adjust and check the brake booster push rod before you install the master cylinder assembly with its sub-components and vacuum hose to the check valve. Position the ABS and traction actuator assembly with bracket before connecting Brake Lines and filling the reservoir with brake fluid then bleeding air from the brake master cylinder as well as the brake line and ABS and traction actuator assembly. After installation you must verify that the brake pedal height and free play as well as reserve distance are correct while checking the reservoir fluid level and inspecting for brake fluid leaks before installing the air cleaner case sub-assembly for 2AR-FE or the air cleaner case for 2GR-FE accordingly.
