OEM Toyota RAV4 Yaw Sensor

Toyota RAV4 Yaw Sensor Parts and Q&A

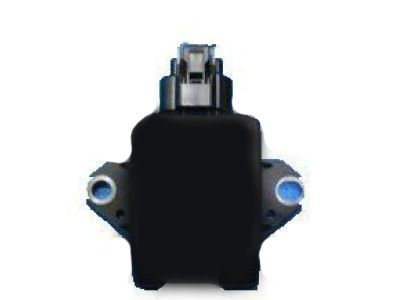

• Yaw Rate Sensor
  89180-42030
  Q: How to remove the Yaw Sensor on Toyota RAV4?

  A:

  Disabling the SRS system takes a minimum 90-second delay after installing a cable to the negative battery terminal. The installation process begins with front seat assembly removal from the left-hand side. Users should follow manual seat removal instructions whereas power seat owners must follow left-side power seat removal steps. Unsheath the front door scuff plate from the left-hand side position. The yaw rate sensor bracket needs bypassing the mounting bolt to perform its removal. Disengage the yaw rate sensor connector followed by removing the two bolts which will remove the yaw rate sensor assembly without detaching it from its bracket.

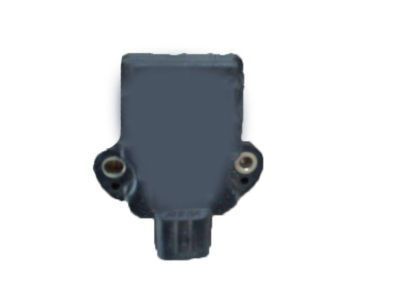

• Yaw Rate Sensor
  89180-42020
  Q: How to install the Yaw Sensor assembly and ensure its proper functionality on Toyota RAV4?

  A:

  You must connect the yaw rate sensor assembly with 2 bolts according to 14.5 Nm (148 kgf-cm, 11 ft-lbf) while making sure to protect both the sensor and its proper installation. Attach the yaw rate sensor connector as the subsequent step. The yaw rate sensor bracket installation requires a bolt with torque setting at 14.5 Nm (148 kgf-cm, 11 ft-lbf). Starting with the front door scuff plate LH installation, the installer must complete front seat assembly LH installation using manual seat procedures and power seat installation protocols. Affixment of the seats allows you to hook up the battery cable to the negative battery terminal. Use the necessary procedures to perform zero point calibration of and ensure proper operation for the yaw rate and deceleration sensor. The final step includes checking the yaw rate sensor signal to verify its operational status.
