How to remove the thermostat on Scion xB?

The starting point for removing the thermostat is to uninstall the No. 1 engine under cover. Next, drain the engine coolant. Remove the outlet radiator hose as the following step. Proceed to eliminate the inlet water by unfastening its 2 nuts to disconnect it from the cylinder block. Then take off the thermostat while also detracting the gasket attached to it.

How to replace a thermostat on Scion xA?

The first step for replacing the thermostat requires drain of engine coolant. The next step is to disconnect the water inlet from the cylinder block through removing its two nuts. Install the new thermostat by placing a fresh gasket on it before setting the jiggle valve upward at a 10-degree angle. The jiggle valve requires a 10-degree alignment either to the left or right side. Reinstall the water inlet after applying 9.0 Nm of torque (92 kgf-cm or 80 inch lbs.) yet maintain caution against perserving the gasket between these parts. Instructions to complete the task include adding engine coolant and inspecting the area for fluid leaks.

How to replace the thermostat on Scion tC?

Draining engine coolant must be the first step when replacing the 2AZ-FE thermostat. The water inlet needs removal after unscrewing the 2 nuts to release it from the cylinder block. Position the thermostat with its jiggle valve aimed upward after seaming a new gasket against it while maintaining a placement within 10 degrees of the recommended location on both sides. Reinstall the water inlet by tightening it to 9.0 Nm (92 kgf-cm, 80 inch lbs.). Last step is to put in engine coolant while inspecting for fluid leaks.

OEM Scion Thermostat

Engine Coolant Thermostat

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Thermostats found

View related parts
Scion Water Inlet
Part Number: 90916-A3003
$22.69 MSRP: $31.59
You Save: $8.90 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Thermostat; Engine Coolant Thermostat; Thermostat, Coolant
- Replaces: 90916-03129, 90916-03084
Fits the following Scion Models:
- tC | 2011-2016, 2005 | Base | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS
- xD | 2008-2010 | Base | 4 Cyl 1.8 L GAS
View related parts

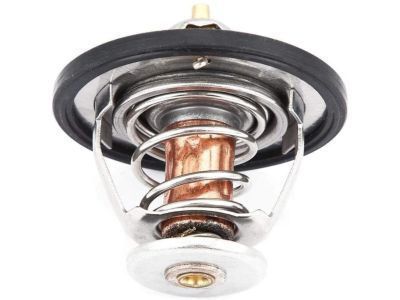

Scion Thermostat
Part Number: 90916-03145
$22.69 MSRP: $31.59
You Save: $8.90 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Coolant Thermostat; Thermostat, Coolant
- Manufacturer Note: *WAX 82-95,TYPE C:REFER ILLUST.
Fits the following Scion Models:
- xD | 2011-2014 | Base | 4 Cyl 1.8 L GAS
View related parts
Scion Thermostat, Lower
Part Number: SU003-04960
$30.19 MSRP: $39.07
You Save: $8.88 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Thermo&Gasket Assembly; Engine Coolant Thermostat, Lower; Engine Coolant Thermostat
- Position: Lower
- Replaces: SU003-00407
Fits the following Scion Models:
- FR-S | 2013-2016 | Base | 4 Cyl 2.0 L GAS
View related parts
Scion Thermostat
Part Number: 90916-03144
$22.69 MSRP: $31.59
You Save: $8.90 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Coolant Thermostat; Thermostat, Coolant
Fits the following Scion Models:
- xD | 2009-2014 | Base | 4 Cyl 1.8 L GAS
View related parts
Scion Thermostat
Part Number: 90916-03136
$26.28 MSRP: $36.57
You Save: $10.29 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Coolant Thermostat
- Replaces: 90916-C3001
Fits the following Scion Models:
- tC | 2005-2010 | Base, Spec | 4 Cyl 2.4 L GAS
- xB | 2008-2015 | Base | 4 Cyl 2.4 L GAS
View related parts
Scion Thermostat
Part Number: 90916-03093
$22.57 MSRP: $31.42
You Save: $8.85 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Coolant Thermostat; Thermostat, Coolant
- Manufacturer Note: *WAX 82-95
Fits the following Scion Models:
- xA | 2004-2006 | Base | 4 Cyl 1.5 L GAS
- xB | 2004-2006 | Base | 4 Cyl 1.5 L GAS
View related parts
Scion Thermostat
Part Number: SU003-11169
$35.73 MSRP: $49.74
You Save: $14.01 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Thermo&Gasket Assembly; Standard Parts
Fits the following Scion Models:
- FR-S | 2013-2016 | Base | 4 Cyl 2.0 L GAS
View related parts
Scion Thermostat
Part Number: 90916-A3004
$26.04 MSRP: $36.25
You Save: $10.21 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Coolant Thermostat
- Replaces: 90916-03149, 90916-03148
Fits the following Scion Models:
- iM | 2016 | Base | 4 Cyl 1.8 L GAS
View related parts
Scion Thermostat
Part Number: 90916-03147
$23.89 MSRP: $33.26
You Save: $9.37 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Thermostat, Element; Engine Coolant Thermostat
- Manufacturer Note: *WAX 82-95
Fits the following Scion Models:
- iQ | 2012-2015 | Base | 4 Cyl 1.3 L GAS
View related parts
Scion Thermostat
Part Number: 90118-WB459
$20.92 MSRP: $29.12
You Save: $8.20 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Coolant Thermostat
Fits the following Scion Models:
- iA | 2016 | Base | 4 Cyl 1.5 L GAS

Scion Thermostat Parts Questions & Experts Answers

Thermostat
90916-03136
Q: How to remove the thermostat on Scion xB?
A: The starting point for removing the thermostat is to uninstall the No. 1 engine under cover. Next, drain the engine coolant. Remove the outlet radiator hose as the following step. Proceed to eliminate the inlet water by unfastening its 2 nuts to disconnect it from the cylinder block. Then take off the thermostat while also detracting the gasket attached to it.
Thermostat
90916-03093
Q: How to replace a thermostat on Scion xA?
A: The first step for replacing the thermostat requires drain of engine coolant. The next step is to disconnect the water inlet from the cylinder block through removing its two nuts. Install the new thermostat by placing a fresh gasket on it before setting the jiggle valve upward at a 10-degree angle. The jiggle valve requires a 10-degree alignment either to the left or right side. Reinstall the water inlet after applying 9.0 Nm of torque (92 kgf-cm or 80 inch lbs.) yet maintain caution against perserving the gasket between these parts. Instructions to complete the task include adding engine coolant and inspecting the area for fluid leaks.
Water Inlet
90916-A3003
Q: How to replace the thermostat on Scion tC?
A: Draining engine coolant must be the first step when replacing the 2AZ-FE thermostat. The water inlet needs removal after unscrewing the 2 nuts to release it from the cylinder block. Position the thermostat with its jiggle valve aimed upward after seaming a new gasket against it while maintaining a placement within 10 degrees of the recommended location on both sides. Reinstall the water inlet by tightening it to 9.0 Nm (92 kgf-cm, 80 inch lbs.). Last step is to put in engine coolant while inspecting for fluid leaks.
