OEM Scion Cigarette Lighter

Scion Cigarette Lighter Parts and Q&A

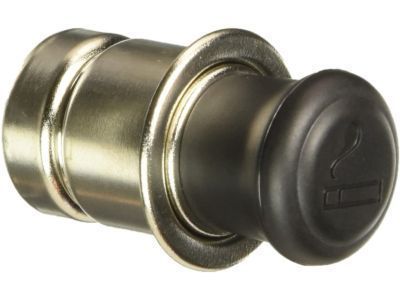

• Lighter Assembly, Cigarette, Front
  85500-12240
  Q: How to service the Auxiliary Cigarette Lighter on Scion tC?

  A:

  Start service of the Cigarette Lighter by detaching the negative battery terminal cable first then waiting 90 seconds to stop Air Bag and seat belt pretensioner activation. The service begins with removal of the shift lever knob sub-assembly for manual transaxle and it continues with front console panel upper and the rear console panel sub-assembly upper and finally the rear console box sub-assembly. To remove the power point socket assembly first turn the socket until the claw separates from between the socket and power point socket cover before pulling out the socket from its position. Date the installation of the new power point socket assembly by sliding it into the notched area of the power point socket cover before securely pushing it in. Reinstall the assembly of rear console box followed by rear console panel sub-assembly upper, front console panel upper and shift lever knob sub-assembly. After reconnecting the cable to the negative battery terminal users need to complete initialization since several systems need this maneuver when disconnecting and reconnecting the cable.

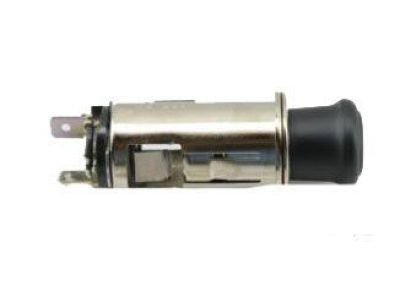

• Element
  85520-28010
  Q: How to replace the cigarette lighter assembly on Scion xB?

  A:

  Installation of a new cigarette lighter assembly starts with disconnection of the battery negative terminal. The replacement starts with removing the instrument cluster finish panel sub-assy center and instrument cluster finish panel sub-assy lower center. The 2 claws on the cigarette lighter cover need to be disengaged before removal. Uninstall the cigarette lighter assembly by first removing the cigarette lighter knob and element assembly then rotating the socket according to the illustration to unhook the claw from between the socket and cigarette lighter bezel stay while pulling the socket straight out. Push the socket toward the notch on the cigarette lighter bezel stay to get rid of the cigarette lighter assembly. Installation starts with aligning the socket to the cigarette lighter bezel stay notch before pushing the cigarette lighter assembly with maximum force followed by cigarette lighter knob assembly and element assembly installation.
