34 Trailing Arms found

View related parts

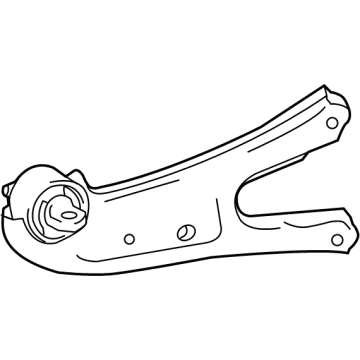

Toyota Arm Assembly, Trailing, Rear Driver Side
Part Number: 48780-0E060
$255.47 MSRP: $364.76
You Save: $109.29 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm Bushing; Suspension Trailing Arm; Trailing Arm
- Position: Rear Driver Side
Fits the following Toyota Models:
- Highlander | 2014-2016 | Hybrid Limited, LE, LE Plus, Limited, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

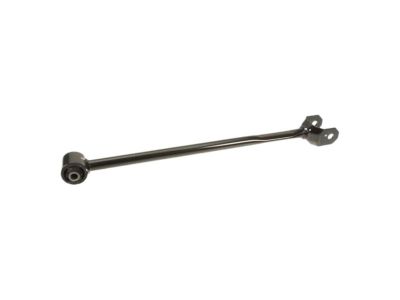

Toyota Trailing Arm, Rear
Part Number: 48780-0E020
$127.36 MSRP: $180.29
You Save: $52.93 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Assembly, Strut, Rear; Suspension Trailing Arm, Control Arm, Strut Rod; Torque Arm; Strut Rod
- Position: Rear
- Replaces: 48780-48040
Fits the following Toyota Models:
- Highlander | 2004-2007 | Base, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L GAS
View related parts
Toyota Trailing Arm, Rear Driver Side
Part Number: 48780-47020
$185.69 MSRP: $265.12
You Save: $79.43 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Arm Assembly, Trailing, Rear Driver Side
- Position: Rear Driver Side
Fits the following Toyota Models:
- Prius | 2023 | LE, Limited, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
- Prius AWD-e | 2023 | LE, Limited, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
- Prius Prime | 2023 | SE, XSE, XSE Premium | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Toyota Trailing Arm, Rear Driver Side
Part Number: 48780-08010
$181.73 MSRP: $259.47
You Save: $77.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side
- Position: Rear Driver Side
Fits the following Toyota Models:
- Sienna | 2021-2023 | 25th Anniversary Edition, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-08010
$181.73 MSRP: $259.47
You Save: $77.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side
- Position: Rear Passenger Side
Fits the following Toyota Models:
- Sienna | 2021-2023 | 25th Anniversary Edition, LE, Limited, Platinum, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-0E080
$181.73 MSRP: $259.47
You Save: $77.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side; Suspension Trailing Arm
- Position: Rear Passenger Side
- Replaces: 48760-0E051
Fits the following Toyota Models:
- Highlander | 2017-2023 | Hybrid Bronze Edition, Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid Platinum, Hybrid XLE, L, LE, LE Plus, Limited, Limited Platinum, Platinum, SE, XLE, XSE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-47020
$185.69 MSRP: $265.12
You Save: $79.43 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Arm Assembly, Trailing, Rear Passenger Side
- Position: Rear Passenger Side
Fits the following Toyota Models:
- Prius | 2023 | LE, Limited, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
- Prius AWD-e | 2023 | LE, Limited, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
- Prius Prime | 2023 | SE, XSE, XSE Premium | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-02020
$142.75 MSRP: $202.08
You Save: $59.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side; Suspension Trailing Arm
- Position: Rear Passenger Side
- Replaces: 48760-F4010, 48760-47010
Fits the following Toyota Models:
- C-HR | 2018-2022 | LE, Limited, Nightshade, XLE, XLE Premium | 4 Cyl 2.0 L GAS
- Corolla | 2019-2024 | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, Nightshade, SE, SE Apex, SE Nightshade, XLE, XSE, XSE Apex | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
- Corolla Cross | 2022-2023 | Hybrid S, Hybrid SE, Hybrid XSE, L, LE, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS
- Prius | 2016-2022 | 2020 Edition, Four, Four Touring, L Eco, LE, Limited, One, Three, Three Touring, Two, Two Eco, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
- Prius AWD-e | 2019-2022 | LE, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
- Prius Prime | 2017-2022 | Advanced, LE, Limited, Plus, Premium, XLE | 4 Cyl 1.8 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Toyota Trailing Arm, Rear Driver Side
Part Number: 48780-02070
$142.75 MSRP: $202.08
You Save: $59.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side; Suspension Trailing Arm
- Position: Rear Driver Side
- Replaces: 48780-47010, 48780-F4010
Fits the following Toyota Models:
- C-HR | 2018-2022 | LE, Limited, Nightshade, XLE, XLE Premium | 4 Cyl 2.0 L GAS
- Corolla | 2019-2024 | Hybrid LE, Hybrid SE, Hybrid XLE, L, LE, Nightshade, SE, SE Apex, SE Nightshade, XLE, XSE, XSE Apex | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
- Corolla Cross | 2022-2023 | Hybrid S, Hybrid SE, Hybrid XSE, L, LE, XLE | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS
- Prius | 2016-2022 | 2020 Edition, Four, Four Touring, L Eco, LE, Limited, One, Three, Three Touring, Two, Two Eco, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
- Prius AWD-e | 2019-2022 | LE, XLE | 4 Cyl 1.8 L FULL HYBRID EV-GAS (FHEV)
- Prius Prime | 2017-2022 | Advanced, LE, Limited, Plus, Premium, XLE | 4 Cyl 1.8 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-0R040
$150.98 MSRP: $213.72
You Save: $62.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side
- Position: Rear Passenger Side
- Replaces: 48760-42070
Fits the following Toyota Models:
- RAV4 | 2019-2023 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
- RAV4 Prime | 2021-2023 | SE, XSE | 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
- Venza | 2021-2023 | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View More
View related parts
Toyota Trailing Arm, Rear Driver Side
Part Number: 48780-0R040
$150.98 MSRP: $213.72
You Save: $62.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side
- Position: Rear Driver Side
- Replaces: 48780-42070
Fits the following Toyota Models:
- RAV4 | 2019-2023 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
- RAV4 Prime | 2021-2023 | SE, XSE | 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
- Venza | 2021-2023 | LE, Limited, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View More
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-12010
$127.48 MSRP: $180.45
You Save: $52.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side; Suspension Trailing Arm
- Position: Rear Passenger Side
Fits the following Toyota Models:
- Corolla iM | 2017-2018 | Base | 4 Cyl 1.8 L GAS
View related parts
Toyota Trailing Arm, Rear Driver Side
Part Number: 48780-06120
$151.33 MSRP: $214.22
You Save: $62.89 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side; Suspension Trailing Arm
- Position: Rear Driver Side
- Replaces: 48780-33090
Fits the following Toyota Models:
- Avalon | 2019-2022 | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Limited, Touring, TRD, XSE, XSE Nightshade | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
- Camry | 2018-2024 | Hybrid LE, Hybrid SE, Hybrid SE Nightshade, Hybrid XLE, Hybrid XSE, L, LE, SE, SE Nightshade, TRD, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Trailing Arm, Rear Driver Side
Part Number: 48780-42100
$167.31 MSRP: $236.85
You Save: $69.54 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Arm Assembly, Trailing, Rear Driver Side
- Position: Rear Driver Side
Fits the following Toyota Models:
- bZ4X | 2023 | Limited, XLE | BATTERY EV (EV/BEV)
View related parts
Toyota Arm Assembly, Trailing, Rear Passenger Side
Part Number: 48760-76010
$138.87 MSRP: $196.59
You Save: $57.72 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing
- Position: Rear Passenger Side
Fits the following Toyota Models:
- GR Corolla | 2023 | Circuit Edition, Core, Morizo Edition | 3 Cyl 1.6 L GAS
View related parts

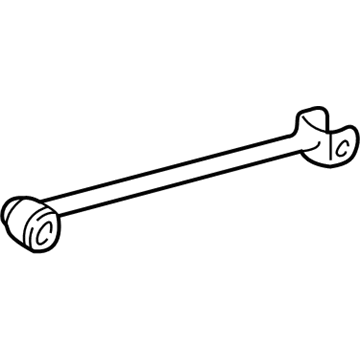

Toyota Rod Assembly, Strut, Rear
Part Number: 48780-0E010
$127.36 MSRP: $180.29
You Save: $52.93 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ROD ASSY, STRUT, RR; Suspension Strut Rod; Trailing Arm; Lateral Arm
- Position: Rear
- Replaces: 48780-48030
Fits the following Toyota Models:
- Highlander | 2004-2007 | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-06130
$142.75 MSRP: $202.08
You Save: $59.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side; Suspension Trailing Arm
- Manufacturer Note: MEXICO SPEC
- Position: Rear Passenger Side
- Replaces: 48760-33160
Fits the following Toyota Models:
- Avalon | 2019-2022 | XLE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
- Camry | 2018-2024 | L, LE, XLE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Trailing Arm, Rear Driver Side
Part Number: 48780-06110
$142.75 MSRP: $202.08
You Save: $59.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side; Suspension Trailing Arm
- Manufacturer Note: MEXICO SPEC
- Position: Rear Driver Side
- Replaces: 48780-33080
Fits the following Toyota Models:
- Avalon | 2019-2022 | XLE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
- Camry | 2018-2024 | L, LE, XLE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-42100
$167.31 MSRP: $236.85
You Save: $69.54 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Arm Assembly, Trailing, Rear Passenger Side
- Position: Rear Passenger Side
Fits the following Toyota Models:
- bZ4X | 2023 | Limited, XLE | BATTERY EV (EV/BEV)
View related parts
Toyota Trailing Arm, Rear Passenger Side
Part Number: 48760-06310
$151.33 MSRP: $214.22
You Save: $62.89 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side; Suspension Trailing Arm
- Position: Rear Passenger Side
- Replaces: 48760-33170
Fits the following Toyota Models:
- Avalon | 2019-2022 | Hybrid Limited, Hybrid XLE, Hybrid XSE, Hybrid XSE Nightshade, Limited, Touring, TRD, XSE, XSE Nightshade | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
- Camry | 2018-2024 | Hybrid LE, Hybrid SE, Hybrid SE Nightshade, Hybrid XLE, Hybrid XSE, L, LE, SE, SE Nightshade, TRD, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS

| Page 1 of 2 |Next >

1-20 of 34 Results

Toyota Trailing Arm

Choose genuine Trailing Arm that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Trailing Arm for your Toyota ? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Trailing Arm Parts and Q&A

Trailing Arm, Rear
48780-0E020
Q: How to service and repair the trailing arm on Toyota Highlander?
A:
The rear wheel needs to be removed first before performing service and repairs on the trailing arm of both 2WD and 4WD vehicles. Support the rear axle carrier with a jack and detach the parking brake cable before removing the strut rod assembly rear by disconnecting the strut rod from the front side while ensuring the nut stays fixed. Proceed by taking away the strut rod from the rear axle carrier yet maintain control of the nut to prevent rotation. Install the rear strut rod with attached bolt and nut onto the rear position just right of where it needs to be placed before supporting the rear axle and connecting the rod on its inner side with another bolt and nut. Tighten all components temporarly before proceeding. Use wood blocking during suspension stabilization to stabilize the rear axle carrier and maintain the installed bolt of the suspension arm assembly No.1 at a horizontal angle matched with the center of the rear axle hub for 2WD or the rear drive shaft assembly for 4WD. Install the parking brake cable while tightening the bolt to 39 Nm and the nut to 6.0 Nm. Following this, fully tighten the rear bolts for the strut rod assembly to 80 Nm. The last steps include completing the installation of the rear wheel followed by a 103 Nm (1,050 kgf-cm, 76 ft. lbs.) torque specification before visually checking the rear wheel alignment.
Trailing Arm, Rear Passenger Side
48760-42010
Q: How to remove the rear trailing arm on Toyota RAV4?
A:
Inspection of the rear trailing arm starts by taking off the rear wheel. The second step requires disconnecting the No. 2 parking brake cable assembly. Start by disconnecting the No. 2 parking brake cable assembly. Afterward, remove the rear trailing arm assembly on the left-hand side by removing 3 bolts and the nut which secures the trailing arm to the axle carrier and suspension arm bracket. During this process you must hold the nut until after the bolt is loosened. Apply the right-hand side procedures.
