How to remove the rear trailing arm on Toyota RAV4?

The first step to disassemble the rear trailing arm is to remove the rear wheel. Unconnecting the No. 2 parking brake cable assembly follows as the next step. You must disconnect the left-hand rear trailing arm assembly by removing the three bolts and nut that keeps the part attached to the axle carrier and suspension arm bracket. Hold the nut steady when you remove the bolt. Follow exactly the same method on the right-side section.

How to install the rear trailing arm assembly on the LH side on Toyota RAV4?

The LH side rear trailing arm assembly should be mounted onto the axle carrier and suspension arm bracket by using three bolts with a nut while torquing the bolt to secure the nut. You should now install the No. 2 parking brake cable assembly. The rear wheel installation should be done with 103 Nm (1,050 kgf-cm, 76 ft-lbf) torque. Tighten the LH side rear trailing arm assembly by securing its 3 bolts and nut to their respective torque values of 200 Nm (2,039 kgf-cm, 148 ft-lbf) and 150 Nm (1,530 kgf-cm, 111 ft-lbf). The checklist includes an examination and adjustment step for the rear wheel alignment.

OEM Toyota RAV4 Trailing Arm

Trailing Control Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Trailing Arms found

View related parts

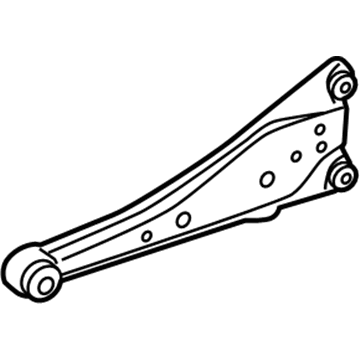

Toyota RAV4 Trailing Arm, Rear Passenger Side
Part Number: 48760-42010
$162.61 MSRP: $230.19
You Save: $67.58 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side; Arm Assembly, Trailing, Rear; Suspension Trailing Arm
- Manufacturer Note: RH
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2010 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

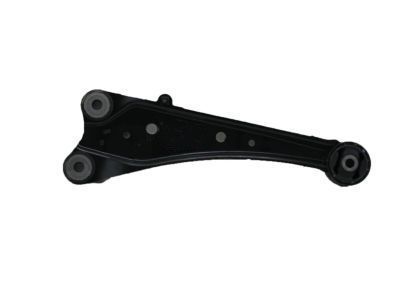

Toyota RAV4 Lower Control Arm, Driver Side
Part Number: 48720-42030
$277.96 MSRP: $396.87
You Save: $118.91 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Rear Suspension; Suspension Trailing Arm, Rear Left; Control Arm; Trailing Arm; Arm Sub-Assembly, Rear Suspension, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota RAV4 | Base, L, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, BATTERY EV (EV/BEV)
View related parts

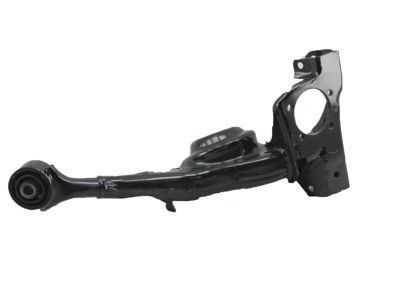

Toyota RAV4 Trailing Arm, Rear Driver Side
Part Number: 48780-48110
$147.69 MSRP: $209.07
You Save: $61.38 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side; Suspension Trailing Arm
- Position: Rear Driver Side
- Replaced by: 48780-42030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts

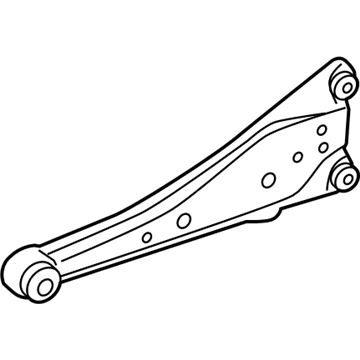

Toyota RAV4 Trailing Arm, Rear Driver Side
Part Number: 48780-42030
$147.69 MSRP: $209.07
You Save: $61.38 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side; Arm Assembly, Trailing, Rear; Suspension Trailing Arm
- Manufacturer Note: LH
- Position: Rear Driver Side
- Replaces: 48780-48110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2014 Toyota RAV4 | Base, LE, Limited, Sport, XLE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Trailing Arm, Rear Driver Side
Part Number: 48780-42010
$162.61 MSRP: $230.19
You Save: $67.58 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side; Arm Assembly, Trailing, Rear; Suspension Trailing Arm
- Manufacturer Note: LH
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2010 Toyota RAV4 | Base, Limited, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Trailing Arm, Rear Driver Side
Part Number: 48780-0R040
$150.98 MSRP: $213.72
You Save: $62.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Assembly, Trailing, Rear Driver Side
- Position: Rear Driver Side
- Replaces: 48780-42070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Trailing Arm, Rear Passenger Side
Part Number: 48760-48110
$147.69 MSRP: $209.07
You Save: $61.38 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Control Arm, Rear Right; Suspension Trailing Arm; Arm Assembly, Trailing, Rear Passenger Side
- Position: Rear Passenger Side
- Replaced by: 48760-42030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Trailing Arm, Rear Passenger Side
Part Number: 48760-42030
$147.69 MSRP: $209.07
You Save: $61.38 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side; Arm Assembly, Trailing, Rear; Suspension Trailing Arm
- Manufacturer Note: RH
- Position: Rear Passenger Side
- Replaces: 48760-48110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2014 Toyota RAV4 | Base, LE, Limited, Sport, XLE | 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Trailing Arm, Rear Passenger Side
Part Number: 48760-0R040
$150.98 MSRP: $213.72
You Save: $62.74 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Trailing; Suspension Trailing Arm, Rear Right; Suspension Control Arm, Rear Right; Arm Assembly, Trailing, Rear Passenger Side
- Position: Rear Passenger Side
- Replaces: 48760-42070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2023 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts

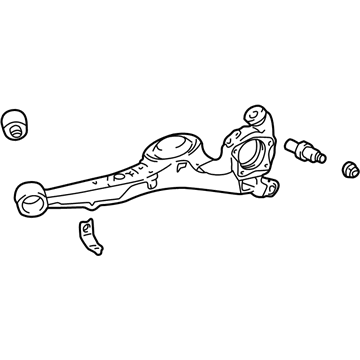

Toyota RAV4 Trailing Arm, Driver Side
Part Number: 48712-42905
Product Specifications
- Other Name: Arm, Rear Suspension No; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Sub-Assembly, Rear Suspension, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Trailing Arm, Driver Side
Part Number: 48712-42904
Product Specifications
- Other Name: Arm, Rear Suspension No; Suspension Trailing Arm, Rear Left; Suspension Control Arm, Rear Left; Arm Sub-Assembly, Rear Suspension, Driver Side
- Manufacturer Note: W(ABS)
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS, BATTERY EV (EV/BEV)

Toyota RAV4 Trailing Arm

Choose genuine Trailing Arm that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Trailing Arm for your Toyota RAV4? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota RAV4 Trailing Arm Parts and Q&A

Trailing Arm, Rear Passenger Side
48760-42010
Q: How to remove the rear trailing arm on Toyota RAV4?
A:
The first step to disassemble the rear trailing arm is to remove the rear wheel. Unconnecting the No. 2 Parking Brake Cable assembly follows as the next step. You must disconnect the left-hand rear trailing arm assembly by removing the three bolts and nut that keeps the part attached to the axle carrier and suspension arm bracket. Hold the nut steady when you remove the bolt. Follow exactly the same method on the right-side section.
Trailing Arm, Rear Driver Side
48780-42010
Q: How to install the rear trailing arm assembly on the LH side on Toyota RAV4?
A:
The LH side rear trailing arm assembly should be mounted onto the axle carrier and suspension arm bracket by using three bolts with a nut while torquing the bolt to secure the nut. You should now install the No. 2 Parking Brake Cable assembly. The rear wheel installation should be done with 103 Nm (1,050 kgf-cm, 76 ft-lbf) torque. Tighten the LH side rear trailing arm assembly by securing its 3 bolts and nut to their respective torque values of 200 Nm (2,039 kgf-cm, 148 ft-lbf) and 150 Nm (1,530 kgf-cm, 111 ft-lbf). The checklist includes an examination and adjustment step for the rear wheel alignment.
