How to install the Starter assembly and related components on Toyota Sequoia?

The starter wire requires a 9.8 Nm (100 kgf-cm, 87 in-lbf) torque level when connecting it with the nut before attaching the starter assembly connector and mounting the starter assembly on the cylinder block. First connect the ground wire to the bolt using 17 Nm torque while installing the engine wire protector to the starter using a bolt tightened to 9.8 Nm. Fasten the starter assembly by utilizing 2 bolts tightened to 25 Nm (255 kgf-cm, 18 ft-lbf). Install two new gaskets to the cylinder head with the flat-bottom facing downward and attach the joint through 4 nuts tightened to 18 Nm (184 kgf-cm, 13 ft-lbf). Install a new gasket to the air tube and fasten it with bolt A using 10 Nm torque before applying 16 Nm torque to bolt B for installation of the No. 2 air hose with the clip. The installation of the Bank 1 air pump assembly should follow the provided instructions. Finish the process by connecting the cable at the negative battery terminal while initialization steps might be necessary following the reconnect.

How to remove and replace the Starter on Toyota Sequoia?

The first step to replace or remove the Starter of a 2UZ-FE engine includes disconnecting the negative battery cable before waiting 90 seconds then re-connecting because some systems need post-reconnection initialization. The service and repair procedures should be followed to remove the Bank 1 air pump assembly. Start by loosening the clip on the No. 2 air hose and remove the three bolts before taking off the air tube with its gasket. First uninstall the rear water by-pass joint from the cylinder head through nut removal and gasket handling of all four elements together with both gaskets. The starter assembly removal begins by taking down two cylinder block securing bolts before detaching from the block followed by starter wire protector bolt removal. First disconnect the starter assembly wire by removing its bolt followed by disconnecting the ground wire then separating the starter assembly connector before removing its nut and finally removing the starter assembly.

OEM Toyota Sequoia Starter

Starter Ignition

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Starters found

View related parts
Toyota Sequoia Starter Assembly Part Number: 28100-0S050
$220.17 MSRP: $314.36
You Save: $94.19 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Motor; Starter
- Manufacturer Note: 12V 2.0KW
- Replaced by: 28100-38080
- Replaces: 28100-38040, 28100-0S011, 28100-38041
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Sequoia Starter Part Number: 28100-50100-84
$117.39 MSRP: $163.33
You Save: $45.94 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter Assembly; Starter Motor
- Replaces: 28100-50100
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2004 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Starter Part Number: 28100-50090-84
$167.82 MSRP: $236.25
You Save: $68.43 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-50090
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Starter Part Number: 28100-0S060
$318.38 MSRP: $454.58
You Save: $136.20 (30%)
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor; Alternators
- Manufacturer Note: 12V 2.0KW,COLD AREA SPEC
- Replaces: 28100-0S021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2012 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.6 L GAS
View related parts
Toyota Sequoia Starter Part Number: 28100-50101-84
$140.87 MSRP: $198.03
You Save: $57.16 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-50101
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2009 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

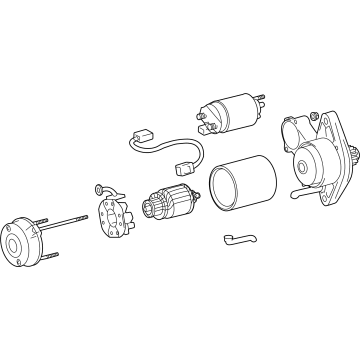

Toyota Sequoia Starter Assembly Part Number: 28100-F4021
$185.92 MSRP: $265.45
You Save: $79.53 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: STARTER ASSY
- Replaces: 28100-F4020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2024 Toyota Sequoia | Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Sequoia Starter Part Number: 28100-70090
$211.79 MSRP: $302.38
You Save: $90.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly
- Manufacturer Note: 12V 1.7KW
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2025 Toyota Sequoia | 1794 Edition, Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)

Toyota Sequoia Starter

Choose genuine Starter that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Starter for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Sequoia Starter transforms battery electricity into mechanical rotation that cranks the engine and therefore ignition. The Starter housing has an armature inside it, and this rotates inside field coils or permanent magnets. When current is passed, electromagnetic force causes the armature and the drive connected to it to rotate. The Starter has a solenoid attached to the battery with heavy gauge wire, and when the ignition key is switched to START, it activates the motor and forces the drive gear to engage with the flywheel or flexplate ring gear. The overrunning clutch disengages the gear when the engine fires. Two styles are described: a direct drive arrangement and a gear reduction Starter, which introduces a reduction gear between armature and drive to provide the motor with additional torque with a compact motor. The ignition switch, a relay, and a safety switch ensure that the control circuit cannot be engaged unless an automatic transmission is in neutral or, on manual versions, the clutch is depressed. These characteristics contribute to the Toyota Sequoia system providing reliable starts. All in all, Toyota Sequoia Starter provides essential cranking power every time the Toyota Sequoia engine is started.

Toyota Sequoia Starter Parts and Q&A

Starter
28100-50101-84
Q: How to install the Starter assembly and related components on Toyota Sequoia?
A:
The starter wire requires a 9.8 Nm (100 kgf-cm, 87 in-lbf) torque level when connecting it with the nut before attaching the starter assembly connector and mounting the starter assembly on the cylinder block. First connect the ground wire to the bolt using 17 Nm torque while installing the engine wire protector to the starter using a bolt tightened to 9.8 Nm. Fasten the starter assembly by utilizing 2 bolts tightened to 25 Nm (255 kgf-cm, 18 ft-lbf). Install two new gaskets to the cylinder head with the flat-bottom facing downward and attach the joint through 4 nuts tightened to 18 Nm (184 kgf-cm, 13 ft-lbf). Install a new gasket to the air tube and fasten it with bolt A using 10 Nm torque before applying 16 Nm torque to bolt B for installation of the No. 2 air hose with the clip. The installation of the Bank 1 air pump assembly should follow the provided instructions. Finish the process by connecting the cable at the negative battery terminal while initialization steps might be necessary following the reconnect.
Starter Assembly
28100-0S050
Q: How to remove and replace the Starter on Toyota Sequoia?
A:
The first step to replace or remove the Starter of a 2UZ-FE engine includes disconnecting the negative battery cable before waiting 90 seconds then re-connecting because some systems need post-reconnection initialization. The service and repair procedures should be followed to remove the Bank 1 air pump assembly. Start by loosening the clip on the No. 2 air hose and remove the three bolts before taking off the air tube with its gasket. First uninstall the rear water by-pass joint from the cylinder head through nut removal and gasket handling of all four elements together with both gaskets. The starter assembly removal begins by taking down two cylinder block securing bolts before detaching from the block followed by starter wire protector bolt removal. First disconnect the starter assembly wire by removing its bolt followed by disconnecting the ground wire then separating the starter assembly connector before removing its nut and finally removing the starter assembly.
