How to remove the alternator on Toyota Sequoia?

The first step towards removing the alternator involves disconnecting the negative battery cable while letting the SRS system disable for at least 90 seconds. The next step involves removing the No. 1 engine under cover sub-assembly then proceeding with removal of the throttle body cover sub-assembly and the air cleaner hose assembly. Clean the procedure by first taking off the fan V belt along with the generator V belt followed by the vane pump assembly disconnection. The generator assembly removal begins by disconnecting the generator assembly connector then removing the terminal cap and nut to disconnect the generator wire. Lastly remove the bolt to disconnect the wire harness bracket from the generator assembly and finish by removing the bolt and two nuts before detaching the generator assembly.

How to install the alternator assembly and related components on Toyota Sequoia?

The generator assembly should be fastened using a bolt and two nuts while applying 39 Nm (398 kgf-cm, 29 ft-lbf) torque to the bolt and nut (A) and 16 Nm (163 kgf-cm, 12 ft-lbf) torque to the second nut (B). Connect the generator connector while attaching the generator wire with its nut until reaching 9.8 Nm of torque (100 kgf-cm or 87 in-lbf). Fasten the terminal cap then mount the harness bracket onto the generator assembly through a bolt that requires 8.2 Nm (84 kgf-cm, 73 in-lbf) torque. After installing the vane pump assembly continue with adding the fan device and the generator V belt. After attaching the air cleaner hose assembly it is necessary to install the throttle body cover sub-assembly. As the last step install the No. 1 engine under cover sub-assembly while connecting the cable to the negative battery terminal except for systems needing initialization after reconnection.

OEM Toyota Sequoia Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Alternators found

View related parts

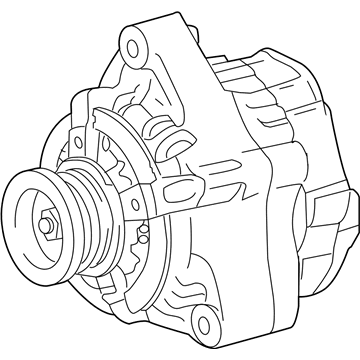

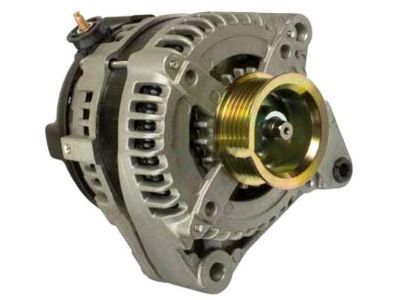

Toyota Sequoia Alternator
Part Number: 27060-0F040-84
$222.61 MSRP: $296.45
You Save: $73.84 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator 2Uz
- Replaces: 27060-0F040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

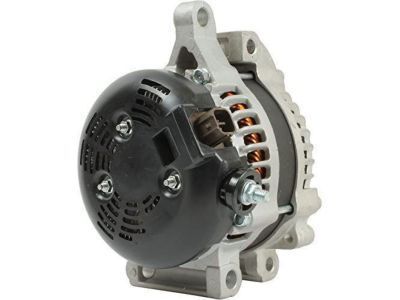

Toyota Sequoia Alternator
Part Number: 27060-0F050-84
$266.52 MSRP: $355.34
You Save: $88.82 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Alternator 2Uz
- Replaces: 27060-0F050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

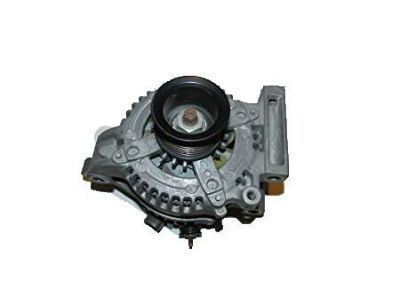

Toyota Sequoia Alternator
Part Number: 27060-0S010
$296.60 MSRP: $423.47
You Save: $126.87 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Reman; Alternators; Alternator Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

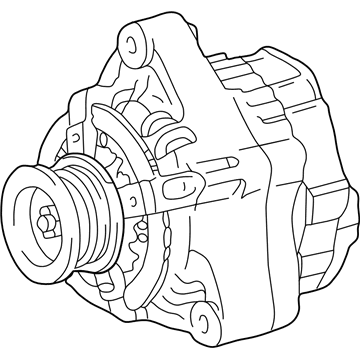

Toyota Sequoia Alternator
Part Number: 27060-38050
$444.45 MSRP: $651.35
You Save: $206.90 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Reman; Alternators; Alternator Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

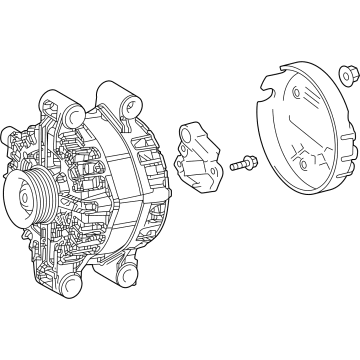

Toyota Sequoia Alternator
Part Number: 27060-0S020
$377.26 MSRP: $552.89
You Save: $175.63 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Reman; Alternators; Alternator Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

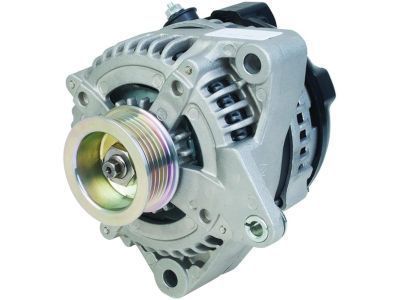

Toyota Sequoia Alternator
Part Number: 27060-0F070-84
$222.13 MSRP: $295.81
You Save: $73.68 (25%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Reman Alternator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2009 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

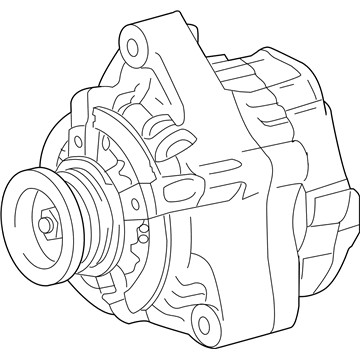

Toyota Sequoia Alternator
Part Number: 27060-0W070
$359.22 MSRP: $526.43
You Save: $167.21 (32%)
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Assembly, W/Regulator
- Manufacturer Note: 12V 180A
- Replaces: 27060-F4020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023 Toyota Sequoia | Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts

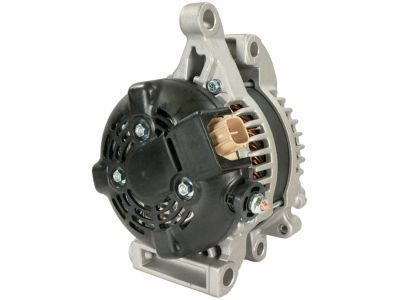

Toyota Sequoia Alternator
Part Number: 27060-0F020-84
Product Specifications
- Other Name: Reman Alternator W/R
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Alternator
Part Number: 27060-0F110
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Reman; New Alternator; Alternators; Alternator Assembly
- Manufacturer Note: 12V 150A,TOWING PACKAGE-WITH
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2009 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS

Toyota Sequoia Alternator

Choose genuine Alternator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Alternator for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Alternator is one of the components in Toyota Sequoia vehicles and is responsible for charging the battery while the vehicle is in use and supply electrical power to the vehicle's parts. Believed to be positioned ahead of the engine, the Alternator acts as power convertor that transmute mechanical energy produced by the engine into electrical energy and subsequently supply the energy to devices such as the battery among others. Applying the stationary armature with a rotating magnetic field make the Alternator to produce the direct current which charges the battery and the Alternator also provides the AC to the vehicle's electric system. Depending on the voltage output that is regulated to avoid charges that are below or above the ideal, the alternator helps in maintaining functionality of the electrical system of the vehicle. Furthermore, high-output Alternators are also manufactured for the vehicles with more electrical requirement to produce more amperage to accommodate the electrical parts of custom vehicles and additional electrical loads.

Toyota Sequoia Alternator Parts and Q&A

Alternator
27060-0S010
Q: How to remove the alternator on Toyota Sequoia?
A:
The first step towards removing the alternator involves disconnecting the negative battery cable while letting the SRS system disable for at least 90 seconds. The next step involves removing the No. 1 engine under cover sub-assembly then proceeding with removal of the throttle body cover sub-assembly and the air cleaner hose assembly. Clean the procedure by first taking off the fan V belt along with the generator V belt followed by the vane pump assembly disconnection. The generator assembly removal begins by disconnecting the generator assembly connector then removing the terminal cap and nut to disconnect the generator wire. Lastly remove the bolt to disconnect the wire harness bracket from the generator assembly and finish by removing the bolt and two nuts before detaching the generator assembly.
Alternator
27060-0S020
Q: How to install the alternator assembly and related components on Toyota Sequoia?
A:
The generator assembly should be fastened using a bolt and two nuts while applying 39 Nm (398 kgf-cm, 29 ft-lbf) torque to the bolt and nut (A) and 16 Nm (163 kgf-cm, 12 ft-lbf) torque to the second nut (B). Connect the generator connector while attaching the generator wire with its nut until reaching 9.8 Nm of torque (100 kgf-cm or 87 in-lbf). Fasten the terminal cap then mount the harness bracket onto the generator assembly through a bolt that requires 8.2 Nm (84 kgf-cm, 73 in-lbf) torque. After installing the vane pump assembly continue with adding the fan device and the generator V belt. After attaching the air cleaner hose assembly it is necessary to install the throttle body cover sub-assembly. As the last step install the No. 1 engine under cover sub-assembly while connecting the cable to the negative battery terminal except for systems needing initialization after reconnection.
