How to remove a crankshaft seal on Toyota RAV4?

The first step to remove the crankshaft main bearing seal demands disconnecting the negative battery cable then waiting for at least 90 seconds to deactivate the SRS system. Start by taking out the engine together with its transaxle. The procedure for 2WD requires automatic transaxle removal while 4WD demands the removal of automatic transaxle in addition to automatic transaxle. As per Special Service Tool: 09213-54015 91551-80650 you should hold the crankshaft pulley then remove the 8 bolts as well as the front drive plate spacer together with the drive plate and finally the rear drive plate spacer. Select a screwdriver with taped tip before using it to pry out the engine rear oil seal after cutting off its lip with a knife so no damage happens to these parts. Pay attention when replacing the oil seal to prevent surface damage on the press fit hole of the crankshaft and the hole surface.

How to install a Crankshaft Seal and its related components on Toyota RAV4?

New oil seals must start with an application of MP grease to their lips before installation while avoiding both foreign material contact with the lip and grease contact with the dust seal. Special Service Tools 09223-15030 and 09950-70010 should be used together with a hammer to drive the oil seal until its surface matches cylinder block and crankcase dimensions while maintaining a secure position that separates the lip from foreign materials and excludes angled impacts. Clean both bolts and their installation holes before adding a few drops of Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent to the bolt end up to 2 or 3 threads. Begin by attaching the front drive plate spacer while guiding its pin into the crankshaft pin hole. Position the drive plate and rear drive plate spacer before torquing the eight installation bolts to 98 Nm. Apply Toyota Genuine Adhesive 1324 or Three Bond 1324 or equivalent to 2 or 3 threads of bolt ends before installing and evenly torquing the specified 8 bolts to 98 Nm (999 kgf-cm, 72 ft-lbf) while being cautious about drive plate installation bolt damage. The automatic transaxle installation requires three essential steps according to the vehicle 2WD or 4WD specification. The procedure requires you to first install both the engine and the transaxle. A cable needs connection to the negative terminal before running the Reset Memory procedure on U241E for 2WD or U140F for 4WD.

OEM Toyota RAV4 Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Crankshaft Seals found

View related parts

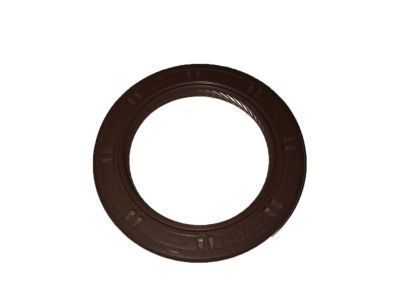

Toyota RAV4 Oil Seal, Front Part Number: 90311-A0005
$19.11 MSRP: $26.60
You Save: $7.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Seal; Timing Cover Oil Seal; Engine Crankshaft Seal
- Position: Front
- Replaces: 90311-42019, 90311-42007, 90311-42037, 90311-42036
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2010 Toyota RAV4 | Base, Limited, Sport | 6 Cyl 3.5 L GAS
View related parts

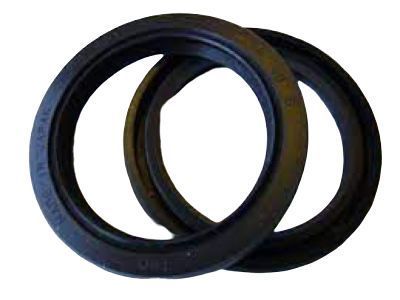

Toyota RAV4 Rear Main Seal Part Number: 90311-A0027
$44.08 MSRP: $61.37
You Save: $17.29 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Oil Seal; Rear Seal; Front Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Position: Rear
- Replaces: 90080-31053, 90311-92003, 90311-92010, 90311-92004, 90311-92006, 90311-92009
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2012 Toyota RAV4 | Base, Limited, Sport | 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Crankshaft Seal, Front Part Number: 90311-A0015
$8.11 MSRP: $11.29
You Save: $3.18 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Timing Cover Seal; Front Crank Seal; Oil Seal for Timing Gear or Chain Case; Engine Crankshaft Seal
- Position: Front
- Replaces: 90311-A0019, 90311-42043
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2018 Toyota RAV4 | Adventure, Base, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Rear Main Seal Part Number: 90311-A0020
$29.15 MSRP: $40.57
You Save: $11.42 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Rear Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Position: Rear
- Replaces: 90311-A0016, 90311-89006
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2018 Toyota RAV4 | Adventure, Base, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Oil Seal, Front Part Number: 90080-31049
$10.27 MSRP: $14.29
You Save: $4.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Front Seal; Timing Cover Oil Seal; Cover Seal; Oil Seal for Timing Chain/Belt.
- Manufacturer Note: (L)
- Position: Front
- Replaces: 90311-38059, 90080-31060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2008 Toyota RAV4 | Base, L, Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Toyota RAV4 Oil Seal, Front Part Number: 90080-31022
$11.82 MSRP: $16.45
You Save: $4.63 (29%)
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Front Crank Seal; Case Seal; Front Cover Seal; Damper & Pulley Oil Seal; Seal; Seal(For Crankshaft); Crankshaft Seal
- Manufacturer Note: (L)
- Position: Front
- Replaces: 90311-42015, 90311-42026, 90311-42001, 90311-42003
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts
Toyota RAV4 Oil Seal, Front Part Number: 90311-42035
$11.94 MSRP: $16.62
You Save: $4.68 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Multi-Purpose Seal; Front Crank Seal; Seal(For Crankshaft); Engine Crankshaft Seal; Crankshaft Seal
- Position: Front
- Replaces: 90311-42028, 90311-42032, 90311-42034
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS, BATTERY EV (EV/BEV)
View related parts
Toyota RAV4 Crankshaft Seal, Front Part Number: 90311-42045
$15.76 MSRP: $21.94
You Save: $6.18 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Oil Seal; Front Crank Seal; Timing Cover Oil Seal; Engine Crankshaft Seal.
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2012 Toyota RAV4 | Base, Limited, Sport | 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Seal, Engine Rear Oil Part Number: 90311-89015
$29.27 MSRP: $40.74
You Save: $11.47 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal
- Position: Rear
- Replaces: 90311-89005, 90311-89013, 90311-C0023
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota RAV4 | Hybrid Limited, Hybrid SE, Hybrid XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Rear Main Seal Part Number: 90311-89010
$41.57 MSRP: $57.87
You Save: $16.30 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Crankshaft Pulley Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Manufacturer Note: 2AZ-FE,*195
- Position: Rear
- Replaces: 90311-89002, 90311-89001, 90080-31073, 90311-89007, 90311-89003, 90311-89004, 90311-C0001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2008 Toyota RAV4 | Base, L, Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, BATTERY EV (EV/BEV)
View related parts
Toyota RAV4 Rear Main Seal Part Number: 90080-31021
$47.31 MSRP: $65.85
You Save: $18.54 (29%)
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Crankshaft Pulley Seal; Seal, Engine Rear Oil; Engine Crankshaft Seal; Crankshaft Seal
- Manufacturer Note: (L)
- Replaces: 90311-85006, 90311-85001, 90311-85008, 90311-85009, 90311-85003
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS, BATTERY EV (EV/BEV)
View related parts
Toyota RAV4 Front Cover Seal Part Number: 90311-38084
$15.40 MSRP: $21.44
You Save: $6.04 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Oil Seal; Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS, BATTERY EV (EV/BEV)
View related parts
Toyota RAV4 Crankshaft Seal, Front Part Number: 90311-A0033
$14.09 MSRP: $19.61
You Save: $5.52 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Timing Cover Seal; Front Crank Seal; Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Position: Front
- Replaces: 90311-40044
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2025 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid Woodland Edition, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, Plug-In Hybrid SE, Plug-In Hybrid XSE, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Toyota RAV4 Rear Main Seal Part Number: 90311-A0035
$41.57 MSRP: $57.87
You Save: $16.30 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Rear; Rear Seal; Seal, Engine Rear Oil; Crankshaft Seal
- Position: Rear
- Replaces: 90311-90010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2025 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid Woodland Edition, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, Plug-In Hybrid SE, Plug-In Hybrid XSE, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Toyota RAV4 Crankshaft Seal, Front Part Number: 90311-42061
$12.06 MSRP: $16.78
You Save: $4.72 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Type T Oil; Engine Crankshaft Seal, Front; Timing Cover Gasket; Timing Cover Seal; Front Cover Seal; Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Manufacturer Note: *524
- Position: Front
- Replaces: 90311-40042
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota RAV4 | Adventure, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS

Toyota RAV4 Crankshaft Seal

Choose genuine Crankshaft Seal that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Crankshaft Seal for your Toyota RAV4? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota RAV4 Crankshaft Seal Parts and Q&A

Rear Main Seal
90311-A0027
Q: How to remove a crankshaft seal on Toyota RAV4?
A:
The first step to remove the crankshaft main bearing seal demands disconnecting the negative battery cable then waiting for at least 90 seconds to deactivate the SRS system. Start by taking out the engine together with its transaxle. The procedure for 2WD requires automatic transaxle removal while 4WD demands the removal of automatic transaxle in addition to automatic transaxle. As per Special Service Tool: 09213-54015 91551-80650 you should hold the crankshaft pulley then remove the 8 bolts as well as the front drive plate spacer together with the drive plate and finally the rear drive plate spacer. Select a screwdriver with taped tip before using it to pry out the engine rear oil seal after cutting off its lip with a knife so no damage happens to these parts. Pay attention when replacing the oil seal to prevent surface damage on the press fit hole of the crankshaft and the hole surface.
Oil Seal, Front
90311-A0005
Q: How to install a Crankshaft Seal and its related components on Toyota RAV4?
A:
New oil seals must start with an application of MP grease to their lips before installation while avoiding both foreign material contact with the lip and grease contact with the dust seal. Special Service Tools 09223-15030 and 09950-70010 should be used together with a hammer to drive the oil seal until its surface matches cylinder block and crankcase dimensions while maintaining a secure position that separates the lip from foreign materials and excludes angled impacts. Clean both bolts and their installation holes before adding a few drops of Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent to the bolt end up to 2 or 3 threads. Begin by attaching the front drive plate spacer while guiding its pin into the crankshaft pin hole. Position the drive plate and rear drive plate spacer before torquing the eight installation bolts to 98 Nm. Apply Toyota Genuine Adhesive 1324 or Three Bond 1324 or equivalent to 2 or 3 threads of bolt ends before installing and evenly torquing the specified 8 bolts to 98 Nm (999 kgf-cm, 72 ft-lbf) while being cautious about drive plate installation bolt damage. The automatic transaxle installation requires three essential steps according to the vehicle 2WD or 4WD specification. The procedure requires you to first install both the engine and the transaxle. A cable needs connection to the negative terminal before running the Reset Memory procedure on U241E for 2WD or U140F for 4WD.
