What components are included in the Air Bag system and what precautions should be taken during servicing on Toyota Highlander?

The Air Bag system contains sensors named center Air Bag sensor assembly combined with front Air Bag sensors (LH and RH), side Air Bag sensors (LH and RH), and rear Air Bag sensors (LH and RH) which are classified together as Air Bag sensors while steering pad with front passenger Air Bag assembly and front seat side Air Bag assembly and curtain shield Air Bag assembly and driver side knee Air Bag assembly and front seat outer belt assembly belong to SRS parts. The Supplementary Restraint System (SRS) within the vehicle consists of seven main components including a driver Air Bag, front passenger Air Bag, driver side knee Air Bag, center Air Bag sensor assembly, front seat side Air Bags, curtain shield Air Bags and front seat belt pretensioners along with seat position Air Bag sensor, seat belt buckle switch, front Air Bag sensors, side Air Bag sensors and rear Air Bag sensors. Following the exact service sequence remains essential to stop accidental SRS deployments causing critical accidents and maintain SRS functionality when required. Service requirements start after the ignition has been turned off followed by disconnecting the negative terminal cable at least 90 seconds later because the SRS maintains its power supply. Exposure to hot air and flames must be avoided while inspecting SRS components and all DTCs should be checked before battery disconnection due to the challenging nature of SRS malfunction symptom verification. Manual inspections of SRS components should take place following any collision activity including minor ones and sensors should get removed before operations involving the possibility of shock exposure. The replacement of SRS components should use brand new parts while prohibition exists for all dismantling and restoration work. Broken SRS materials require immediate part substitution. You should conduct electrical troubleshooting using a volt/ohmmeter that has minimum impedance of 10 kOhms/V. Always follow SRS part labels for instructions after which you should activate SRS warning light checks upon finishing your work. The process of clearing the memory requires notes about system contents before battery removal so the systems can be returned to their proper states after the repair work. Handling of Air Bag sensors requires waiting 90 seconds after disconnecting the negative (-) terminal cable before both sensor replacements and front seat side Air Bag and curtain shield Air Bag door adjustments. Install the Air Bag sensors inside the vehicle before joining and separating their wiring connections while abstaining from utilizing sensors that have fallen. Follow specific instructions for disconnection then connection of steering pad and other components including front passenger Air Bag assembly along with curtain shield Air Bag assembly, front seat outer belt assembly and driver side knee Air Bag assembly, spiral cable, center Air Bag sensor assembly and the front Air Bag sensor, side Air Bag sensor and rear Air Bag sensor until all attachments are properly locked.

How to properly disconnect and connect the side air bag on Toyota Highlander?

Removal of the side air bag requires users to hold both outer flank sides while sliding the outer part in the direction shown by arrows until the connector lock disengages to permit disconnected wires. Keep both outer flank sides in contact to avoid complicating the process. The connector must be aligned as shown in the pictures to establish connection precisely while the outer part should return to its initial position and produce an audible lock mechanism; users must not grasp the outer component while linking to avoid installing it improperly.

OEM Toyota Highlander Air Bag

Air Bag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

39 Air Bags found

View related parts

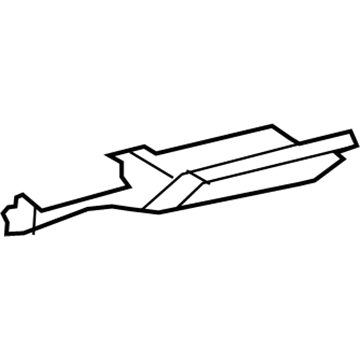

Toyota Highlander Knee Inflator Module, Black, Lower
Part Number: 73900-0E040-C0
$807.76 MSRP: $1183.78
You Save: $376.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Lower; Knee Air Bag; Air Bag Assembly, Instrument Panel, Lower
- Manufacturer Note: BLACK,TRIM2#
- Position: Lower
- Replaces: 73900-48030-C0
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

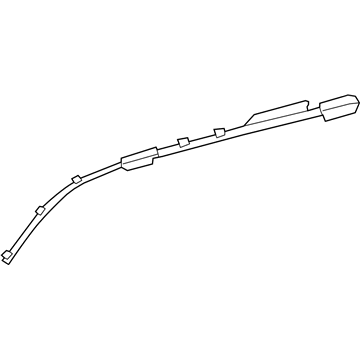

Toyota Highlander Inflator Curtain, Passenger Side
Part Number: 62170-48021
$591.11 MSRP: $866.27
You Save: $275.16 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Curtain Shield; Curtain Air Bag, Right; Head Air Bag; Air Bag Assembly, Curtain Shield, Passenger Side
- Manufacturer Note: SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
- Position: Passenger Side
- Replaces: 62170-48020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts

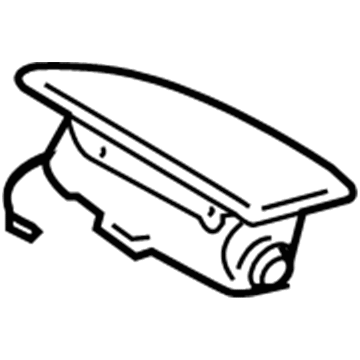

Toyota Highlander Passenger Air Bag
Part Number: 73970-48060-E0
$744.88 MSRP: $1091.62
You Save: $346.74 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Upper; Passenger Inflator Module; Air Bag Assembly, Instrument Panel Passenger
- Manufacturer Note: SANDAL WOOD,TRIM0#
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Passenger Air Bag, Upper
Part Number: 73960-0E050
$598.11 MSRP: $876.54
You Save: $278.43 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Upper; Passenger Inflator Module; Air Bag Assembly, Instrument Panel Passenger W/O Door
- Position: Upper
- Replaces: 73960-48070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Plus, SE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts

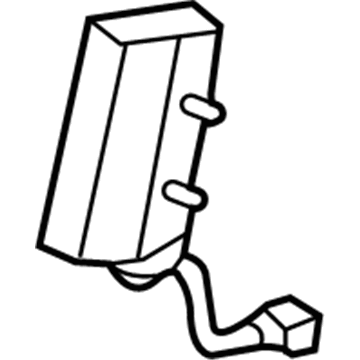

Toyota Highlander Side Impact Inflator Module, Passenger Side
Part Number: 73910-0E050
$427.20 MSRP: $626.07
You Save: $198.87 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Front Seat; Seat Air Bag, Front Right; Front Seat Air Bag; Air Bag Assembly, Front Seat, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2013 Toyota Highlander | Base, Limited, Plus, SE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Inflator Curtain, Passenger Side
Part Number: 62170-0E040
$1198.44 MSRP: $1756.32
You Save: $557.88 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Curtain Shield; Curtain Air Bag, Right; Head Air Bag; Air Bag Assembly, Curtain Shield, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Base, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Inflator Curtain, Driver Side
Part Number: 62180-0E040
$1198.44 MSRP: $1756.32
You Save: $557.88 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Curtain Shield; Curtain Air Bag, Left; Head Air Bag; Air Bag Assembly, Curtain Shield, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Base, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Knee Inflator Module, Beige, Lower
Part Number: 73900-0E040-E0
$884.72 MSRP: $1296.57
You Save: $411.85 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Lower; Knee Air Bag; Air Bag Assembly, Instrument Panel, Lower
- Manufacturer Note: SAND BEIGE,TRIM4#
- Position: Lower
- Replaces: 73900-48030-E0
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Knee Inflator Module, Gray, Lower
Part Number: 73900-0E040-B0
$884.72 MSRP: $1296.57
You Save: $411.85 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Lower; Knee Air Bag; Air Bag Assembly, Instrument Panel, Lower
- Manufacturer Note: GRAY,TRIM1#
- Position: Lower
- Replaces: 73900-48030-B0
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Plus, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Side Impact Inflator Module, Passenger Side
Part Number: 73910-48071
$393.03 MSRP: $575.99
You Save: $182.96 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Front Seat; Seat Air Bag, Front Right; Front Seat Air Bag; Air Bag Assembly, Front Seat, Passenger Side
- Position: Passenger Side
- Replaces: 73910-48070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2013 Toyota Highlander | Hybrid, Hybrid Limited | 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Highlander Inflator Curtain, Passenger Side
Part Number: 62170-48030
$1179.48 MSRP: $1728.54
You Save: $549.06 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Curtain Shield; Curtain Air Bag, Right; Head Air Bag; Air Bag Assembly, Curtain Shield, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Passenger Air Bag, Upper
Part Number: 73960-0E040
$677.80 MSRP: $993.32
You Save: $315.52 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Upper; Passenger Inflator Module; Air Bag Assembly, Instrument Panel Passenger W/O Door
- Position: Upper
- Replaces: 73960-48040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2010 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Inflator Curtain, Driver Side
Part Number: 62180-48021
$593.07 MSRP: $869.15
You Save: $276.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Curtain Shield; Curtain Air Bag, Left; Head Air Bag; Air Bag Assembly, Curtain Shield, Driver Side
- Manufacturer Note: SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
- Position: Driver Side
- Replaces: 62180-48020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Passenger Air Bag, Saddle Gray
Part Number: 73970-48060-B0
$744.88 MSRP: $1091.62
You Save: $346.74 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Upper; Passenger Inflator Module; Air Bag Assembly, Instrument Panel Passenger
- Manufacturer Note: SADDLE GRAY,TRIM1#
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.3 L GAS
View related parts
Toyota Highlander Passenger Air Bag
Part Number: 73970-48040-B0
$736.89 MSRP: $1079.92
You Save: $343.03 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Upper; Passenger Inflator Module; Air Bag Assembly, Instrument Panel Passenger
- Manufacturer Note: SADDLE GRAY,TRIM0#,1#
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Highlander | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Highlander Knee Inflator Module, Gray, Lower
Part Number: 73900-0E050-B0
$784.16 MSRP: $1149.19
You Save: $365.03 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Lower; Knee Air Bag; Air Bag Assembly, Instrument Panel, Lower
- Manufacturer Note: GRAY,TRIM1#
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Inflator Curtain, Driver Side
Part Number: 62180-48030
$1179.48 MSRP: $1728.54
You Save: $549.06 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Curtain Shield; Curtain Air Bag, Left; Head Air Bag; Air Bag Assembly, Curtain Shield, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Base, Hybrid, Hybrid Limited, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Front Seat Air Bag, Passenger Side
Part Number: 73910-48030
$488.95 MSRP: $716.56
You Save: $227.61 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Front Seat; Air Bag Assembly, Front Seat, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2010 Toyota Highlander | Base, Limited, SE, Sport | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Knee Inflator Module, Black, Lower
Part Number: 73900-0E050-C0
$784.16 MSRP: $1149.19
You Save: $365.03 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Instrument Panel; Instrument Panel Air Bag, Lower; Knee Air Bag; Air Bag Assembly, Instrument Panel, Lower
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | Hybrid LE, Hybrid Limited, Hybrid Limited Platinum, Hybrid XLE, LE, LE Plus, Limited, Limited Platinum, SE, XLE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Toyota Highlander Side Impact Inflator Module, Driver Side
Part Number: 73920-0E050
$413.36 MSRP: $605.78
You Save: $192.42 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Bag Assembly, Front Seat; Seat Air Bag, Front Left; Front Seat Air Bag; Air Bag Assembly, Front Seat, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2013 Toyota Highlander | Base, Limited, Plus, SE | 4 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS

| Page 1 of 2 |Next >

1-20 of 39 Results

Toyota Highlander Air Bag

Choose genuine Air Bag that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Air Bag for your Toyota Highlander? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Highlander parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Highlander Air Bag Parts and Q&A

Inflator Curtain, Passenger Side
62170-48030
Q: What components are included in the Air Bag system and what precautions should be taken during servicing on Toyota Highlander?
A:
The Air Bag system contains sensors named center Air Bag Sensor assembly combined with front Air Bag sensors (LH and RH), side Air Bag sensors (LH and RH), and rear Air Bag sensors (LH and RH) which are classified together as Air Bag sensors while steering pad with front passenger Air Bag assembly and front seat side Air Bag assembly and curtain shield Air Bag assembly and driver side knee Air Bag assembly and front seat outer belt assembly belong to SRS parts. The Supplementary Restraint System (SRS) within the vehicle consists of seven main components including a driver Air Bag, front passenger Air Bag, driver side knee Air Bag, center Air Bag sensor assembly, front seat side Air Bags, curtain shield Air Bags and front Seat Belt pretensioners along with seat position Air Bag sensor, seat belt buckle switch, front Air Bag sensors, side Air Bag sensors and rear Air Bag sensors. Following the exact service sequence remains essential to stop accidental SRS deployments causing critical accidents and maintain SRS functionality when required. Service requirements start after the ignition has been turned off followed by disconnecting the negative terminal cable at least 90 seconds later because the SRS maintains its power supply. Exposure to hot air and flames must be avoided while inspecting SRS components and all DTCs should be checked before battery disconnection due to the challenging nature of SRS malfunction symptom verification. Manual inspections of SRS components should take place following any collision activity including minor ones and sensors should get removed before operations involving the possibility of shock exposure. The replacement of SRS components should use brand new parts while prohibition exists for all dismantling and restoration work. Broken SRS materials require immediate part substitution. You should conduct electrical troubleshooting using a volt/ohmmeter that has minimum impedance of 10 kOhms/V. Always follow SRS part labels for instructions after which you should activate SRS warning light checks upon finishing your work. The process of clearing the memory requires notes about system contents before battery removal so the systems can be returned to their proper states after the repair work. Handling of Air Bag sensors requires waiting 90 seconds after disconnecting the negative (-) terminal cable before both sensor replacements and front seat side Air Bag and curtain shield Air Bag door adjustments. Install the Air Bag sensors inside the vehicle before joining and separating their wiring connections while abstaining from utilizing sensors that have fallen. Follow specific instructions for disconnection then connection of steering pad and other components including front passenger Air Bag assembly along with curtain shield Air Bag assembly, front seat outer belt assembly and driver side knee Air Bag assembly, spiral cable, center Air Bag sensor assembly and the front Air Bag sensor, side Air Bag sensor and rear Air Bag sensor until all attachments are properly locked.
Inflator Curtain, Passenger Side
62170-48021
Q: How to properly disconnect and connect the side air bag on Toyota Highlander?
A:
Removal of the side air bag requires users to hold both outer flank sides while sliding the outer part in the direction shown by arrows until the connector lock disengages to permit disconnected wires. Keep both outer flank sides in contact to avoid complicating the process. The connector must be aligned as shown in the pictures to establish connection precisely while the outer part should return to its initial position and produce an audible lock mechanism; users must not grasp the outer component while linking to avoid installing it improperly.

Related Toyota Highlander Parts

Browse Toyota Highlander Air Bag by Years

2023 2022 2021 2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001
