How to service and repair the rear wheel speed sensor on Toyota Echo?

Service or repairs of the rear wheel speed sensor begin with removing the rear wheel and disconnecting the speed sensor connector. Start by uninstalling the speed sensor that is mounted with the rear axle hub followed by unmounting the ABS speed sensor by extracting its two pins with a pin punch and hammer while separating the two attachments using Special Service Tool: 09520-00031 (09520-00040, 09521-00020). Before restoring the axle hub assembly into a soft jaw vise take precautionary measures by either replacing it if it meets a strong shock or if it drops. In order to remove the ABS speed sensor you need Special Service Tool: 09520-00031 (09520-00040, 09521-00020), 09950-00020 and 2 bolts (Diameter: 12 mm, Pitch: 1.5 mm) while avoiding debris on the sensor rotor and extracting it in a straight line for protection. Relevant damage to the sensor rotor will require new axle hub assembly installation while maintaining separation between the axle hub and speed sensor contact areas. Begin installation after cleaning both the contacting axle hub surface and new ABS speed sensor while inspecting that no foreign material exists on the sensor rotor. To install the ABS speed sensor on the axle hub connect it with the connector facing down then use Special Service Tool: 09214-76011 and a press in a straight motion at slow speed without hammering it. Finally install the speed sensor then reconnect its connector before torquing the rear wheel to 103 Nm (1,050 kgf-cm, 76 ft. lbs.) while verifying the speed sensor signal.

OEM Toyota Echo Speed Sensor

Speed Control Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Speed Sensors found

View related parts

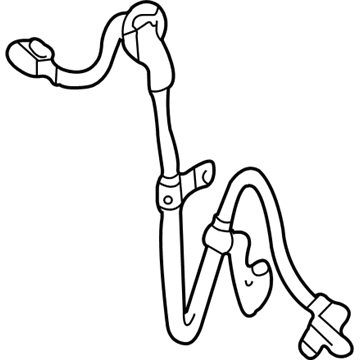

Toyota Echo ABS Sensor, Front Driver Side
Part Number: 89543-52010
$228.91 MSRP: $326.83
You Save: $97.92 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Speed, Front Left-Hand; ABS Wheel Speed Sensor, Front Left; Sensor, Wheel Speed; Front Speed Sensor; Sensor, Speed, Front Driver Side; ABS Wheel Speed Sensor
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo ABS Sensor, Front Passenger Side
Part Number: 89542-52010
$228.91 MSRP: $326.83
You Save: $97.92 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Speed, Front Right-Hand; ABS Wheel Speed Sensor, Front Right; Sensor, Wheel Speed; Front Speed Sensor; Sensor, Speed, Front Passenger Side; ABS Wheel Speed Sensor
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Speed Sensor
Part Number: 83181-12040
$299.36 MSRP: $427.42
You Save: $128.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Speedometer; Speedometer Impulse Sender; Vehicle Speed Sensor; Sensor, Speed / RPM; Speedometer Sensor; Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Sensor, Speedometer
Part Number: 83181-12020
$272.18 MSRP: $388.60
You Save: $116.42 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Vehicle Speed Sensor
- Replaces: 83181-12070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo ABS Sensor, Rear
Part Number: 89544-52030
$189.88 MSRP: $232.88
You Save: $43.00 (19%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Skid Control; ABS Wheel Speed Sensor, Rear, Rear Left, Rear Right; Sensor Ring; Sensor
- Manufacturer Note: NSK
- Position: Rear
- Replaces: 89544-52020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Sensor Ring, Front
Part Number: 89544-52010
$209.57 MSRP: $257.02
You Save: $47.45 (19%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Skid Control; ABS Wheel Speed Sensor, Front, Front Left, Front Right; ABS Tone Ring; ABS Sensor; Front Speed Sensor; ABS Rotor
- Manufacturer Note: KOYO
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo ABS Sensor, Front Driver Side
Part Number: 04895-52020
Product Specifications
- Other Name: Sensor Kit, Speed, Front; ABS Wheel Speed Sensor; Sensor, Wheel Speed; Sensor, Speed, Front Driver Side
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo ABS Sensor, Front Passenger Side
Part Number: 04895-52010
Product Specifications
- Other Name: Sensor Kit, Speed, Front; ABS Wheel Speed Sensor; Sensor, Wheel Speed; Sensor, Speed, Front Passenger Side
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000 Toyota Echo | Base | 4 Cyl 1.5 L GAS

Toyota Echo Speed Sensor

If you're thinking about purchasing OEM parts for your Toyota Echo, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Echo Speed Sensor at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Echo Speed Sensor Parts Questions & Experts Answers

Sensor, Speedometer
83181-12020
Q: How to service and repair the rear wheel speed sensor on Toyota Echo?
A: Service or repairs of the rear wheel speed sensor begin with removing the rear wheel and disconnecting the speed sensor connector. Start by uninstalling the speed sensor that is mounted with the rear axle hub followed by unmounting the ABS speed sensor by extracting its two pins with a pin punch and hammer while separating the two attachments using Special Service Tool: 09520-00031 (09520-00040, 09521-00020). Before restoring the axle hub assembly into a soft jaw vise take precautionary measures by either replacing it if it meets a strong shock or if it drops. In order to remove the ABS speed sensor you need Special Service Tool: 09520-00031 (09520-00040, 09521-00020), 09950-00020 and 2 bolts (Diameter: 12 mm, Pitch: 1.5 mm) while avoiding debris on the sensor rotor and extracting it in a straight line for protection. Relevant damage to the sensor rotor will require new axle hub assembly installation while maintaining separation between the axle hub and speed sensor contact areas. Begin installation after cleaning both the contacting axle hub surface and new ABS speed sensor while inspecting that no foreign material exists on the sensor rotor. To install the ABS speed sensor on the axle hub connect it with the connector facing down then use Special Service Tool: 09214-76011 and a press in a straight motion at slow speed without hammering it. Finally install the speed sensor then reconnect its connector before torquing the rear wheel to 103 Nm (1,050 kgf-cm, 76 ft. lbs.) while verifying the speed sensor signal.
