How to remove and replace the Rack And Pinion on Toyota Camry?

The procedure to remove and install the power steering link starts with facing the front wheels straight ahead while disconnecting the negative battery cable. You must first position the front wheels straight ahead before using the seat belt to immobilize the steering wheel because this technique protects the spiral cable from harm. Use a wrench to remove the bolt then pull out the steering sliding yoke which should stay as a single unit with the power steering link assembly along with a record of original positions. The tie rod assembly LH separation begins when technicians remove its cotter pin and nut followed by tool attachment using Special Service Tool: 09628-00011 to disconnect it from the steering knuckle. They must handle the tool correctly to avoid dropping it and protecting both the front disc brake dust cover along with ball joint dust cover and steering knuckle. Repeating these steps must be performed on the tie rod assembly RH as well. Follow engine-type instructions to remove the engine assembly combined with transaxle. Apply Special Service Tool: 09023-12701 to detach the pressure feed tube assembly from the power steering link assembly through both return tube side and pressure feed tube side where the removal of two bolts enables separation of the pressure feed tube clamp. The power steering link assembly demands two bolts and two nuts removal from separate sections while avoiding nut turning due to its built in stopper before removing the rack and pinion housing heat insulator from the power steering link assembly for 2GR-FE.

What are the steps involved in installing the power Rack And Pinion assembly on Toyota Camry?

Before installation apply power steering fluid or lithium base molybdenum disulfide grease on the marked parts. Begin by taking off the electrical connection at the widget after that remove both the horn button assembly and steering wheel assembly with tool number 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09950-05021). Remove the front wheel and spiral cable unit first. Then detach the left and right tie rod assemblies using Special Service Tool: 09628-62011. Unscrew the bolt and take off the clamp from the steering column hole cover No. 1 while separating the steering column hole cover No. 2. Mark matching points between the steering intermediate shaft sub-assembly and rack and pinion assembly before you detach them. Unfasten the front stabilizer link assemblies on both sides and remove the front stabilizer brackets. Then disconnect the pressure feed tube assembly and return tube assembly with Special Service Tool: 09021-12700. Separate the rack and pinion power steering rack and pinion along with its heat insulator (for 1MZ-FE engines) and both right and left turn pressure tubes with Special Service Tool 09023-38200. Using Special Service Tool 09612-00012 secure the rack and pinion assembly while you also remove both tie rod assemblies for proper torque measurements. Take apart the steering rack boot clips and clamps handily to prevent damage before removing the steering rack boots. Separate the claw washer and take out the rack ends with claw washers using Special Service Tool: 09922-10010 before using the same tool to extract the rack guide and power steering control valve with a socket wrench (27 mm). Disassemble the control valve rings and oil seal with Special Service Tool: 09950-70010 (09951-07150), 09950-60010 (09951-00250) by pressing them apart. You must install both new steering piston ring and oil seal into the new power steering cylinder while placing them right-side out.

OEM Toyota Camry Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

54 Rack And Pinions found

View related parts

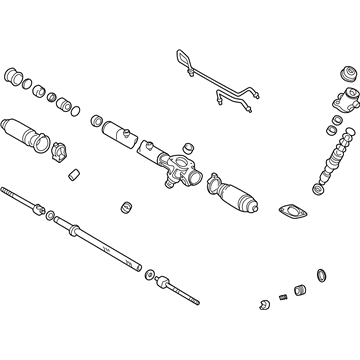

Toyota Camry Steering Gear
Part Number: 44250-06081
$634.05 MSRP: $928.99
You Save: $294.94 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Power Steering; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly, Power Steering(For Rack & Pinion)
- Replaces: 44250-06080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Camry | CE, LE, SE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Steering Gear
Part Number: 44250-06111
$653.07 MSRP: $957.08
You Save: $304.01 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Power Steering; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly
- Replaces: 44250-33150, 44250-06110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-1999 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2 L GAS
View related parts

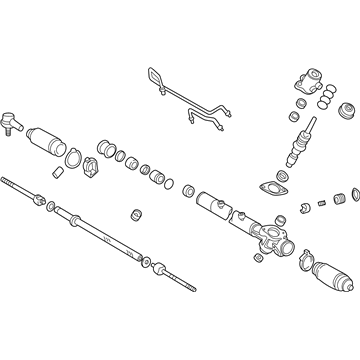

Toyota Camry Steering Gear
Part Number: 44200-16440
$606.44 MSRP: $888.75
You Save: $282.31 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Link Assembly, Power Steering; Steering Gearbox; Gear Assembly
- Replaces: 44250-16140, 44250-16240
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991-1994 Toyota Camry | Base, DLX, DLX All Trac, DX, LE, LE All Trac, SE, XLE | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS, 6 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Steering Gear
Part Number: 44200-33322
$620.83 MSRP: $909.83
You Save: $289.00 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Link Assembly, Power Steering
- Replaces: 44200-33321, 44200-33320, 44250-33320
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2006 Toyota Camry | Base, LE, SE, XLE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

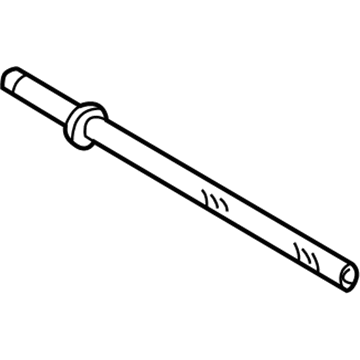

Toyota Camry Rack, Front
Part Number: 44204-07010
$401.78 MSRP: $588.81
You Save: $187.03 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Rack And Pinion Rack Gear, Front; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Rack, Front
Part Number: 44204-06060
$401.78 MSRP: $588.81
You Save: $187.03 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Rack And Pinion Rack Gear, Front; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts

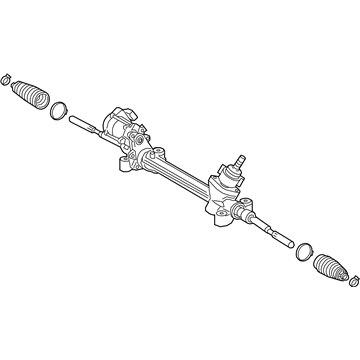

Toyota Camry Steering Gear
Part Number: 44250-06393
$925.47 MSRP: $1356.28
You Save: $430.81 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Electric; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly, Power Steering(For Rack & Pinion)
- Manufacturer Note: TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Camry | Hybrid SE, Hybrid XSE, SE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts

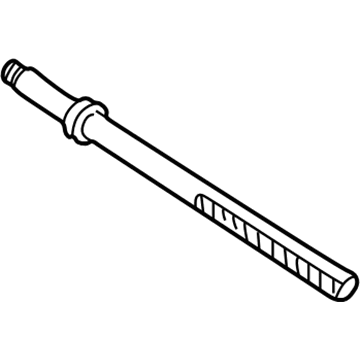

Toyota Camry Rack Sub-Assembly, Power Steering, Front
Part Number: 44204-33070
$401.78 MSRP: $588.81
You Save: $187.03 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Steering Gearbox; Steering Rack
- Manufacturer Note: (J)
- Position: Front
- Replaces: 44204-33020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-2001 Toyota Camry | CE, DLX, DX, LE, XLE | 4 Cyl 2.2 L CNG, 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts

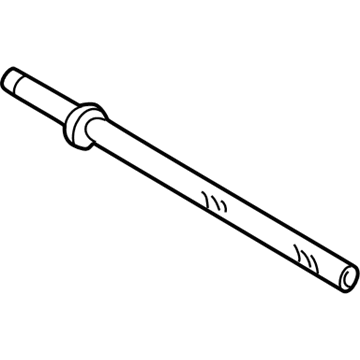

Toyota Camry Rack, Front
Part Number: 44204-33080
$322.10 MSRP: $459.89
You Save: $137.79 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Rack And Pinion Rack Gear, Front; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Position: Front
- Replaces: 44204-06010, 44204-33010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1999 Toyota Camry | CE, DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS
View related parts

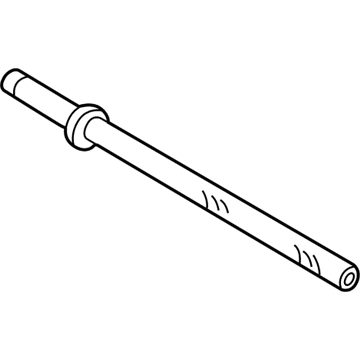

Toyota Camry Rack
Part Number: 44204-33031
$325.30 MSRP: $464.46
You Save: $139.16 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Steering Gearbox; Steering Rack
- Replaces: 44204-33030, 44204-06030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1996 Toyota Camry | LE, SE, XLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Steering Gear
Part Number: 44250-06500
$702.10 MSRP: $1028.94
You Save: $326.84 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Electric; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly, Power Steering(For Rack & Pinion)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020 Toyota Camry | TRD, XLE, XSE | 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Steering Gear
Part Number: 44250-06383
$728.66 MSRP: $1067.85
You Save: $339.19 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Electric; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly, Power Steering(For Rack & Pinion)
- Manufacturer Note: MEXICO SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2024, 2018 Toyota Camry | Hybrid XLE, SE, XLE, XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Steering Gear
Part Number: 44250-06501
$728.66 MSRP: $1067.85
You Save: $339.19 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Electric; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly, Power Steering(For Rack & Pinion)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota Camry | TRD, XLE, XSE | 6 Cyl 3.5 L GAS
View related parts
Toyota Camry Steering Gear
Part Number: 44250-32210-84
$396.38 MSRP: $509.94
You Save: $113.56 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Rack&Pinion; Steering Gearbox; Gear Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1991 Toyota Camry | DLX, LE | 6 Cyl 2.5 L GAS
View related parts
Toyota Camry Gear Assembly, Power Steering(For Rack & Pinion)
Part Number: 44250-33260
Product Specifications
- Other Name: Gear Assembly, Power Steering; Steering Gearbox
- Replaces: 44250-33160, 44250-33290
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2001 Toyota Camry | LE, XLE | 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Steering Gear
Part Number: 44250-32200-84
Product Specifications
- Other Name: Reman Rack&Pinion; Steering Gearbox; Gear Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1991 Toyota Camry | Base, DLX, DLX All Trac, LE, LE All Trac | 4 Cyl 2.0 L GAS
View related parts
Toyota Camry Rack, Front
Part Number: 44204-06070
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Rack And Pinion Rack Gear, Front; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2004 Toyota Camry | LE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Rack, Front
Part Number: 44204-06071
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Rack And Pinion Rack Gear, Front; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Camry | Base, LE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Rack
Part Number: 44204-16050
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991-1994 Toyota Camry | Base, DLX, DLX All Trac, DX, LE, LE All Trac, SE, XLE | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS, 6 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
View related parts
Toyota Camry Rack
Part Number: 44204-16070
Product Specifications
- Other Name: Rack Sub-Assembly, Power; Steering Gearbox; Steering Rack; Rack Sub-Assembly, Power Steering
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1994 Toyota Camry | DLX, DX, LE, SE, XLE | 4 Cyl 2.2 L GAS, 6 Cyl 3.0 L GAS

| Page 1 of 3 |Next >

1-20 of 54 Results

Toyota Camry Rack And Pinion

Choose genuine Rack And Pinion that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Rack And Pinion for your Toyota Camry? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Camry parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Toyota Camry Rack And Pinion is a device that takes SAS steering wheel rotation and converts it into front wheel side-to-side movement. This sort of a rack and pinion system has a gear that is housed in a metal tube while the rack gear is connected to the tie-rods which manoeuvre the wheels. Many current Camry cars come equipped with power steering rack and pinion kinds of steering columns; the hydraulic power is provided by fluid pressure in the entitlements passing through a rotary valve positioned in the pinion gear. But historically, rack and pinions were of the manual kind and the smaller automobiles used them. There are several problems that can occur with a Steering Rack, these can be due to leaks within the hydraulic system, worn gears, or damage to the seals. Signs that indicate steering rack problems are, stiffness in the steering, squealing or grinding sound, wandering and pulling to one side. Taking particular attention to Heui-Seon Moon & Sung-Moon Choi, it is crucial to regard the tenets of proper maintenance and timely replacement of worn components so that the Toyota Camry's Steering Rack functions to the optimal of its capabilities and security foremost.

Toyota Camry Rack And Pinion Parts and Q&A

Steering Gear
44200-33472
Q: How to remove and replace the Rack And Pinion on Toyota Camry?
A:
The procedure to remove and install the power steering link starts with facing the front wheels straight ahead while disconnecting the negative battery cable. You must first position the front wheels straight ahead before using the seat belt to immobilize the Steering Wheel because this technique protects the spiral cable from harm. Use a wrench to remove the bolt then pull out the steering sliding yoke which should stay as a single unit with the power steering link assembly along with a record of original positions. The tie rod assembly LH separation begins when technicians remove its cotter pin and nut followed by tool attachment using Special Service Tool: 09628-00011 to disconnect it from the steering knuckle. They must handle the tool correctly to avoid dropping it and protecting both the front disc brake dust cover along with ball joint dust cover and steering knuckle. Repeating these steps must be performed on the tie rod assembly RH as well. Follow engine-type instructions to remove the engine assembly combined with transaxle. Apply Special Service Tool: 09023-12701 to detach the pressure feed tube assembly from the power steering link assembly through both return tube side and pressure feed tube side where the removal of two bolts enables separation of the pressure feed tube clamp. The power steering link assembly demands two bolts and two nuts removal from separate sections while avoiding nut turning due to its built in stopper before removing the rack and pinion housing heat insulator from the power steering link assembly for 2GR-FE.
Steering Gear
44250-06141
Q: What are the steps involved in installing the power Rack And Pinion assembly on Toyota Camry?
A:
Before installation apply power steering fluid or lithium base molybdenum disulfide grease on the marked parts. Begin by taking off the electrical connection at the widget after that remove both the horn button assembly and Steering Wheel assembly with tool number 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09950-05021). Remove the front wheel and spiral cable unit first. Then detach the left and right tie rod assemblies using Special Service Tool: 09628-62011. Unscrew the bolt and take off the clamp from the steering column hole cover No. 1 while separating the steering column hole cover No. 2. Mark matching points between the steering intermediate shaft sub-assembly and rack and pinion assembly before you detach them. Unfasten the front stabilizer link assemblies on both sides and remove the front stabilizer brackets. Then disconnect the pressure feed tube assembly and return tube assembly with Special Service Tool: 09021-12700. Separate the rack and pinion power steering rack and pinion along with its heat insulator (for 1MZ-FE engines) and both right and left turn pressure tubes with Special Service Tool 09023-38200. Using Special Service Tool 09612-00012 secure the rack and pinion assembly while you also remove both tie rod assemblies for proper torque measurements. Take apart the steering rack boot clips and clamps handily to prevent damage before removing the steering rack boots. Separate the claw washer and take out the rack ends with claw washers using Special Service Tool: 09922-10010 before using the same tool to extract the rack guide and power steering control valve with a socket wrench (27 mm). Disassemble the control valve rings and oil seal with Special Service Tool: 09950-70010 (09951-07150), 09950-60010 (09951-00250) by pressing them apart. You must install both new steering piston ring and oil seal into the new power steering cylinder while placing them right-side out.
