OEM Scion Air Bag Control Module

SRS Airbag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

30 Air Bag Control Modules found

View related parts

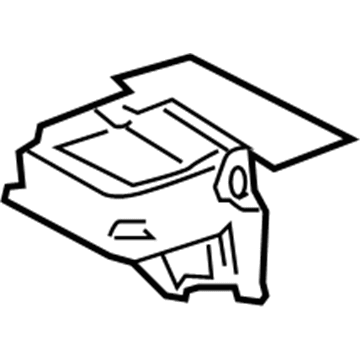

Scion Occupant Sensor, Passenger Side
Part Number: 89952-08011
$374.96 MSRP: $549.51
You Save: $174.55 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Computer, Occupant Detection; Air Bag Seat Sensor Mat, Right; Occupant Detection Sensor; Passenger Discriminating Sensor; Occupant Module
- Position: Passenger Side
- Replaces: 89952-47020, 89952-47021
Fits the following Scion Models:
- tC | 2011 | Base | 4 Cyl 2.5 L GAS
View related parts

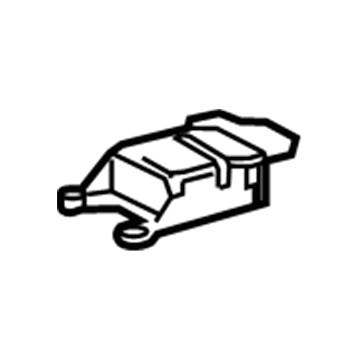

Scion Control Module, Passenger Side
Part Number: 89952-35020
$374.96 MSRP: $549.51
You Save: $174.55 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Computer, Occupant Detection; Air Bag Passenger Presence Module, Front Right, Right; Occupant Detection Sensor; Occupant Sensor; Passenger Discriminating Sensor; Occupant Module; Computer
- Position: Passenger Side
- Replaces: 89952-35010, 89952-35011
Fits the following Scion Models:
- tC | 2005-2010 | Base, Spec | 4 Cyl 2.4 L GAS
- xD | 2008-2014 | Base | 4 Cyl 1.8 L GAS
View related parts

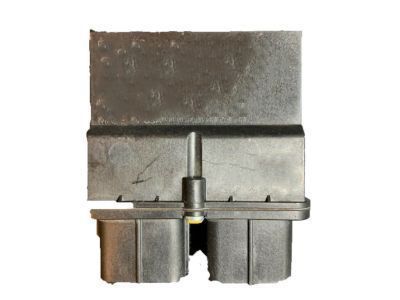

Scion Occupant Sensor, Passenger Side
Part Number: 89952-0W161
$332.53 MSRP: $474.77
You Save: $142.24 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Computer, Occupant Detection; Air Bag Seat Sensor Mat; Occupant Detection Sensor; Passenger Discriminating Sensor
- Position: Passenger Side
- Replaces: 89952-0W160
Fits the following Scion Models:
- xB | 2011-2015 | Base | 4 Cyl 2.4 L GAS
View related parts

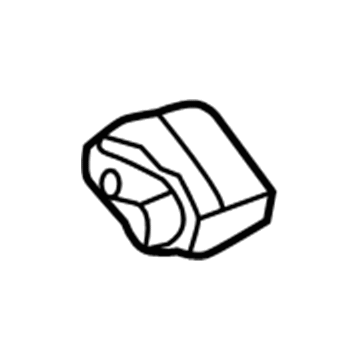

Scion Diag Unit W/Sensor
Part Number: 89170-0W390
$198.33 MSRP: $261.85
You Save: $63.52 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Center Sensor
Fits the following Scion Models:
- xA | 2004-2006 | Base | 4 Cyl 1.5 L GAS
View related parts

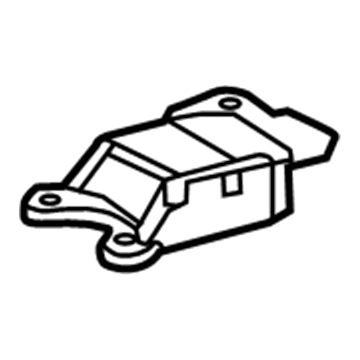

Scion Center Sensor
Part Number: 89170-52580
$589.39 MSRP: $741.94
You Save: $152.55 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Sensor
- Manufacturer Note: SPECIAL EDITION(USA)
Fits the following Scion Models:
- xA | 2005-2006 | Base | 4 Cyl 1.5 L GAS
View related parts

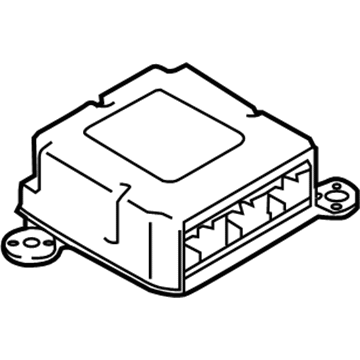

Scion Diagnostic Unit
Part Number: 89170-21070
$365.23 MSRP: $459.75
You Save: $94.52 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor
Fits the following Scion Models:
- tC | 2005-2006 | Base | 4 Cyl 2.4 L GAS
View related parts

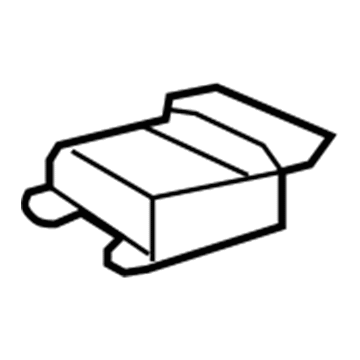

Scion SDM Module
Part Number: 89170-WB006
$415.60 MSRP: $523.16
You Save: $107.56 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Diagnostic Unit
- Replaces: 89170-WB003
Fits the following Scion Models:
- iA | 2016 | Base | 4 Cyl 1.5 L GAS
View related parts

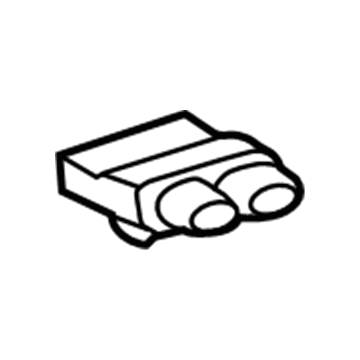

Scion SDM Module
Part Number: 89170-12D60
$451.85 MSRP: $568.80
You Save: $116.95 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Diag Unit W/Sensor; Computer Assembly, Air Bag
Fits the following Scion Models:
- iM | 2016 | Base | 4 Cyl 1.8 L GAS
View related parts
Scion Diagnostic Unit
Part Number: 89170-52390
$668.21 MSRP: $841.14
You Save: $172.93 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor; Computer Assembly, Air Bag
Fits the following Scion Models:
- xB | 2004-2006 | Base | 4 Cyl 1.5 L GAS
View related parts
Scion Diagnostic Unit
Part Number: 89170-21090
$374.64 MSRP: $471.60
You Save: $96.96 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor
Fits the following Scion Models:
- tC | 2007-2009 | Base, Spec | 4 Cyl 2.4 L GAS
View related parts
Scion SDM Module
Part Number: 89170-74080
$245.65 MSRP: $301.26
You Save: $55.61 (19%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Diag Unit W/Sensor; Computer Assembly, Air Bag
Fits the following Scion Models:
- iQ | 2012 | Base | 4 Cyl 1.3 L GAS
View related parts
Scion Diagnostic Unit
Part Number: 89170-21130
$309.97 MSRP: $380.15
You Save: $70.18 (19%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor; Computer Assembly, Air Bag
Fits the following Scion Models:
- tC | 2011-2012 | Base | 4 Cyl 2.5 L GAS
View related parts
Scion SDM Module
Part Number: 89170-52N90
$146.92 MSRP: $178.65
You Save: $31.73 (18%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Diag Unit W/Sensor; Computer Assembly, Air Bag
- Replaces: 89170-52L00
Fits the following Scion Models:
- xD | 2013-2014 | Base | 4 Cyl 1.8 L GAS
View related parts
Scion Occupant Sensor, Passenger Side
Part Number: 89952-47040
$336.45 MSRP: $480.38
You Save: $143.93 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Computer, Occupant Detection; Air Bag Seat Sensor Mat, Right; Occupant Detection Sensor; Passenger Discriminating Sensor; Occupant Module
- Position: Passenger Side
Fits the following Scion Models:
- tC | 2012-2016 | Base | 4 Cyl 2.5 L GAS
View related parts
Scion Occupant Sensor
Part Number: 89952-74011
$332.53 MSRP: $474.77
You Save: $142.24 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Computer, Occupant Detection; Air Bag Seat Sensor Mat; Occupant Detection Sensor; Passenger Discriminating Sensor
Fits the following Scion Models:
- iQ | 2012-2015 | Base | 4 Cyl 1.3 L GAS
View related parts
Scion Occupant Sensor, Passenger Side
Part Number: 89952-12020
$301.43 MSRP: $430.38
You Save: $128.95 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Computer, Occupant Detection; Air Bag Passenger Presence Module, Right; Seat Sensor Mat, Right; Passenger Discriminating Sensor; Occupant Module
- Position: Passenger Side
Fits the following Scion Models:
- iM | 2016 | Base | 4 Cyl 1.8 L GAS
View related parts
Scion Control Module
Part Number: SU003-04928
$690.07 MSRP: $940.52
You Save: $250.45 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor; Computer Assembly, Air Bag
Fits the following Scion Models:
- FR-S | 2014-2016 | Base | 4 Cyl 2.0 L GAS
View related parts
Scion Control Module
Part Number: SU003-03416
$690.07 MSRP: $940.52
You Save: $250.45 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor; Computer Assembly, Air Bag
Fits the following Scion Models:
- FR-S | 2013-2014 | Base | 4 Cyl 2.0 L GAS
View related parts
Scion Diag Unit W/Sensor
Part Number: 89170-52420
$668.21 MSRP: $841.14
You Save: $172.93 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor
Fits the following Scion Models:
- xA | 2004-2006 | Base | 4 Cyl 1.5 L GAS
View related parts
Scion Diag Unit W/Sensor
Part Number: 89170-12A40
Product Specifications
- Other Name: Sensor Assembly, Air Bag; Air Bag Control Module; Air Bag Sensor; Center Sensor; Computer Assembly, Air Bag
Fits the following Scion Models:
- xB | 2011-2012 | Base | 4 Cyl 2.4 L GAS

| Page 1 of 2 |Next >

1-20 of 30 Results

Scion Air Bag Control Module Parts Questions & Experts Answers

Diagnostic Unit
89170-21090
Q: How to service the Air Bag Control Module on Scion tC?
A: Service of the Air Bag Control Module starts with disconnecting the negative battery cable for at least 90 seconds to avoid Air Bag activation. The service procedure must start with the removal of the shift lever knob sub-assembly before moving on to take out the front console upper panel assembly and the console upper rear panel sub-assembly and the rear console box assembly. Disconnection of Air Bag sensor connectors must be followed by removing the 3 bolts that secure the center Air Bag sensor assembly in place.
SDM Module
89170-52B30
Q: How to service the Air Bag Control Module on Scion xD?
A: The initial step to serve the Air Bag Control Module requires disconnection of the negative battery terminal cable. Start by operating on the manual transaxle shift lever knob sub-assembly and then move to take out the upper console panel and rear console box cover and sub-assembly alongside front console box parts. The center Air Bag sensor assembly becomes accessible only after extraction of these components. Sustaining a severed state of the negative battery terminal represents essential safety practice throughout this procedure since any sensory impact could activate the Air Bag deployment function. The Air Bag sensor requires you to push down on the lever to free the connector holder before unbolting its three screws for complete removal.
Diag Unit W/Sensor
89170-12580
Q: How to remove the Air Bag Control Module on Scion xB?
A: A 90-second wait after disconnecting the negative battery cable is necessary to avoid deploying the Air Bags followed by removing the Air Bag Control Module. Workers need to first remove the shift lever knob sub-assembly for manual transaxle after which they should take out the instrument cluster finish center lower panel and proceed to the front No. 2 and front No. 1 console box inserts. The next step is removing the instrument panel finish lower panel. Both automatic transaxles require the removal of the transmission control cable assembly and manual transaxles need the additional removal of this assembly. You must eliminate both the automatic and manual transaxle shift lever assemblies one after another. Disconnection of the negative battery terminal is necessary before headset removal by pulling down the lever followed by unbolting the 3 screws from the Air Bag sensor assembly.
