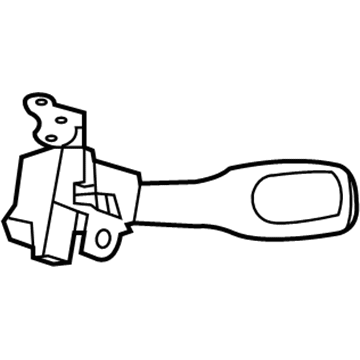

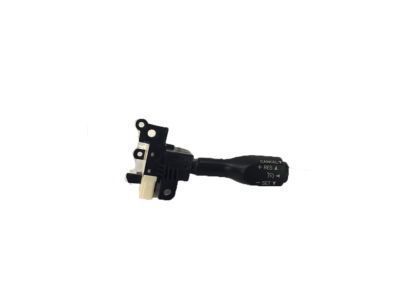

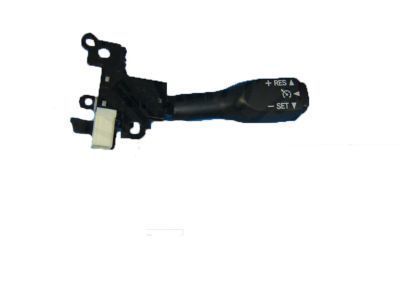

Toyota 84632-08021
On/Off Switch

A proper procedure to remove the cruise control main switch requires starting by disconnecting the cable from the negative battery terminal followed by a minimum 90-second wait period before working on the Air Bag system because of safety precautions. The first step is to remove the steering pad followed by disconnecting the connector that serves the cruise control main switch. After securing the cruise control main switch with 2 screws you can remove it from its position.

The first step to remove the cruise control main switch requires disconnecting the negative battery cable and waiting 90 seconds to avoid Air Bag deployment. Next, remove the steering pad. After disconnecting the cruise control main switch connector you must remove the 2 screws while pulling out the cruise control main switch.

One must follow precautions regarding Air Bag Systems before starting the replacement of the Cruise Control Switch. You must initialize both the power window control system as well as the sliding roof system through the correct procedure after reattaching the battery terminal. Start by detaching the battery negative terminal. First disconnect the horn button assembly followed by removing the cruise control main switch assembly by disconnecting its connector and unscrewing the 2 fasteners before pulling it out in the indicated direction. Check the horn button assembly after reconnection as the last step. You must reconnect the negative terminal of the battery before inspecting the SRS warning light.

The first step for cruise control main switch removal begins by disconnecting the cable from negative battery terminal while waiting 90 seconds for Air Bag deployment prevention. Next, remove the steering pad. You must remove the cruise control main switch by first disconnecting its connecter then removing 2 screws prior to extraction.

The servicing process for Cruise Control Main Switch begins with disconnecting the battery negative terminal. The service starts by removing the steering wheel cover lower No.3 together with the steering pad before the cruise control main switch. You should first disconnect the connector before unscrewing the two hardware pieces which enable the removal of the cruise control main switch. Begin by placing the cruise control main switch for installation before adding the steering pad followed by lower No.3 then lower No.2 of the steering wheel cover. Finish the connection of the negative terminal followed by pad steering inspection and SRS warning light examination.

Install the Cruise Control Main Switch as the first step and then install the Steering Pad as the following process. Proceed with installing Steering Wheel Cover Lower No. 3 followed by Steering Wheel Cover Lower No. 2. Add the negative battery terminal after completing the inspect of the Steering Pad's correct installation. The SRS warning light functionality needs to be checked as the final step.

Two screws should be used to fasten the cruise control main switch while applying 2.4 Nm of force (24 kgf-cm or 21 in-lbf) and then attach the connector. Next, install the steering pad. When installing the cable connect it to the negative battery terminal while applying 5.4 Nm of torque (55 kgf-cm, 48 in-lbf). Check the SRS warning light for correct operation as the final step.

The first step to work on the cruise control switch requires disconnecting the negative battery terminal cable followed by waiting for at least ninety seconds to avoid Air Bag and seat belt pretensioner activation. The service begins by taking away the lower No. 3 steering wheel cover followed by the removal of the lower No. 2 cover and finishing with removal of the pad. Proceed to disconnect the cruise control main switch through connector removal and afterward removing its 2 screws. Begin the installation process by inserting the cruise control main switch using its 2 screws then apply 2.4 N.m torque before connecting the connector. Reinstall the steering pad before retabling the lower No. 2 steering wheel cover and subsequently the lower No. 3 steering wheel cover. The final step includes restoring the cable connection to the negative battery terminal while checking the SRS warning light.

A proper servicing of the Cruise Control Main Switch begins with disconnecting the negative battery cable then waiting 90 seconds before Air Bag deployment. The service requires removing the No. 2 lower steering wheel cover first before continuing with the No. 3 lower steering wheel cover then finally exposing the steering pad. Begin the cruise control main switch removal process by disconnecting its connector while removing the two mounting screws. The cruise control main switch installation needs 2 screws to attach it while maintaining a torque strength at 2.4 N.m (24 kgf.cm, 21 in.lbf) and connector reattachment. Insert the steering pad and replace it with the No. 3 and then the No. 2 steering wheel lower covers. End the procedure by installing the cable onto the negative terminal with 3.9 N.m (40 kgf.cm, 35 in.lbf) torque force while checking the SRS warning light.

A procedure to service the Cruise Control Main Switch starts with disconnecting the negative battery terminal cable before waiting 90 seconds to avoid Air Bag activation. Service the Cruise Control Main Switch by beginning with the removal of the Steering Wheel No.3 Cover Lower and then the Steering Wheel No.2 Cover Lower and finally the Horn Button Assembly. Remove the Cruise Control Main Switch by disconnecting its connector while removing two screws before pulling the switch in the arrow-determined direction. Install the Cruise Control Main Switch by attaching its 2 screws while tightening them to 2.4 N.m (25 kgf.cm, 21 in.lbf) torque then restore the connector. Reinsert the Horn Button Assembly while you install first the Steering Wheel No.3 Cover Lower and then the Steering Wheel No.2 Cover Lower. Connect the cable to the negative terminal of the battery and verify the SRS Warning Light together with the Horn Button Assembly.

The service and repair procedure for the Cruise Control Main Switch begins by disconnecting the negative battery cable and waiting 90 seconds to avoid Air Bag and seat belt pretensioner activation. The service begins with removing the No. 2 steering wheel cover lower, then the No. 3 steering wheel cover lower before proceeding to the steering pad assembly and finally the steering wheel assembly. Unplug the cruise control main switch by disconnecting its connector as well as unfastening the two screws. First for installation connect the cruise control main switch to its positions with screws and reattach the connector. Reassemble the components by first installing the steering wheel assembly then the steering pad assembly after which put on the No. 2 steering wheel cover lower followed by the No. 3 steering wheel cover lower. The negative battery terminal cable must be reconnected following initialization procedures since some systems need this process when cables are installed and removed. To check SRS warning light functionality you need to inspect it at the end of the process.

The process to remove the Cruise Control Main Switch begins with disconnecting the negative battery cable terminal followed by a minimum 90-second wait for the SRS system to disable. Begin by removing the lower steering wheel cover number 3 and then move on to remove the lower steering wheel cover number 2. Then, remove the steering pad. You should disconnect both the connector and clamp from the cruise control main switch after which you should remove the two screws before extracting the switch.

The service of the cruise control main switch begins with disconnecting the negative battery cable and waiting for at least 90 seconds because this period prevents Air Bag and seat belt pretensioner activation. First disconnect the connector then liberate the steering pad assembly before removing the cruise control main switch through disconnecting its connector and unscrewing its 2 screws. Fit the cruise control main switch using two screws while tightening them to 1.7 to 3.0 N.m (17.34 to 30.60 kgf.cm, 15.04 to 26.55 in.lbf). Reconnect the connector after this procedure. steer pad assembly reinstallation completes the repair process where you should connect the cable to the negative battery terminal while testing the SRS warning light.

The first step for Cruise Control Main Switch servicing requires you to disconnect the negative battery cable then wait for 90 seconds to avoid Air Bag activation. Start the procedure by removing the No. 2 and No. 3 lower steering wheel covers and then detach the steering pad. To access the cruise control main switch disconnect its wiring connection then remove the dual screws before drawing it in the direction of the arrow mark. The installation procedure for the cruise control main switch requires using 2 screws that need a torque setting of 2.4 N.m (24 kgf.cm, 21 in.lbf) and connector reconnection. Follow the reinstall order of steering pad alongside No. 3 and No. 2 lower steering wheel covers before connecting the cable back to the negative battery terminal. Perform the initialization steps required after cable removal then check the steering pad together with the SRS warning light.

The first step to remove the Cruise Control Main Switch includes disconnecting the cable at the negative battery terminal and waiting at least 90 seconds before starting SRS system disabling procedures. System initialization may become necessary after reconnecting the cable. The first step should be to remove the lower No. 2 steering wheel cover and then proceed to remove the lower No. 3 steering wheel cover. Then, remove the steering pad. The process of complete switch removal requires disconnecting the cruise control main switch connector followed by removing its mounting screws.

Before servicing or repairing the Cruise Control Main Switch you must disconnect the negative battery terminal cable to avoid Air Bag and seat belt pretensioner activation. Some systems need an initialization process after reattaching the cable but should still wait at least 90 seconds. The user must let the ignition switch remain in the off position during a 90-second period before removing the cable. The technician needs to eliminate the lower No.2 steering wheel cover before extracting the lower No.3 steering wheel cover. When applicable use the same order to remove the steering pad or the steering pad switch and then disconnect the cruise control main switch by unscrewing the 2 screws while disassembling the switch in the indicated manner. The installation procedure requires you to follow the reverse order of removal steps which include connecting the cruise control main switch and securing it using two screws before returning the connector into place. Installation of the steering pad should be done first followed by reinstallation of lower No.3 and lower No.2 steering wheel covers. Before closing the cable connection to the negative battery terminal users should confirm system initialization requirements since it might be necessary then verify the SRS warning light indicates proper system functionality.

Start the cruise control switch service and repair procedure by taking the negative battery cable off then letting 90 seconds pass without electrical connection to stop the Air Bag from deploying. The technician should begin by taking away the lower No. 2 steering wheel cover followed by the lower No. 3 steering wheel cover and finish with steering pad assembly removal. The cruise control main switch requires removing after disconnecting the cable and unfastening both screws so you can extract it from the steering wheel. After reinstalling the cruise control main switch with two screws install the connector as the second step. Position the steering pad assembly before placing in order the lower No. 3 and lower No. 2 steering wheel covers. The cable installation process must end by connecting it to the negative battery terminal while tightening it to 3.9 N.m (40 kgf.cm, 35 in.lbf) torque then inspecting the steering pad assembly and SRS warning light.

A minimum of ninety seconds of disconnected cable from the negative battery terminal must pass before starting the Cruise Control Switch service or repair process to avoid Air Bag deployment. Next, remove the steering pad. Fit the connector from the cruise control main switch before extracting it through removal of the 2 screws and the cruise control main switch.

Connect the cable to the negative battery terminal with a torque of 5.4 Nm (55 kgf-cm, 48 in-lbf).

Disconnect the connector, remove the 2 screws, and pull out the assembly.

Remove the Steering Wheel No. 3 Cover Lower, followed by the Steering Wheel No. 2 Cover Lower.

Reinstall the Horn Button Assembly.

Connect the connector.

To prevent the airbag from deploying.

Inspect the SRS warning light for proper functionality.

Inspect the Horn Button Assy and the SRS Warning Light for proper functionality.

Remove the Steering Wheel Cover Lower No. 2.

Remove the steering pad.

Remove the lower No. 3 steering wheel cover, followed by the lower No. 2 steering wheel cover.

Connect the connector.

Install the Horn Button Assembly and inspect it.

Some systems may require initialization, so ensure to perform this step.

Install the Lower No. 3 Steering Wheel Cover and the Lower No. 2 Steering Wheel Cover.

Secure it with the 2 screws, applying a torque of 2.4 Nm (24 kgf-cm, 21 in-lbf).

Inspect the SRS warning light for proper functionality.

Inspect the SRS warning light for proper functionality.

Install the steering pad.

Remove the 2 screws securing the cruise control main switch and take it out.

Reattach the Horn Button Assembly and reconnect the battery negative terminal.

Remove the 2 screws, disconnect the connector, and carefully remove the switch as illustrated.

Connect the cable to the negative battery terminal.

Then, remove the Steering Pad Assembly and the Steering Wheel Assembly.

Connect the cable to the negative battery terminal.

Inspect the horn button assembly along with the SRS warning light.

Reconnect the cable to the negative battery terminal and perform initialization.

Remove the Steering Pad.

Connect the cable to the negative battery terminal.

Disconnect the connector, remove the 2 screws, and pull the switch in the arrow direction.

Reinstall the Horn Button Assembly and reconnect the battery negative terminal.

Connect the cable to the negative battery terminal.

Secure the switch using the 2 screws with a torque of 1.7 to 3.0 Nm (17.34 to 30.60 kgf-cm, 15.04 to 26.55 in-lbf).

Ensure to follow air bag system service precautions and disconnect the battery negative terminal.

Reinstall the steering pad assembly and reconnect the cable to the negative battery terminal.

Connect the cable to the negative battery terminal.

Remove the horn button assembly.

Disconnect the battery negative terminal.

Remove the two screws securing the switch.

Remove the steering wheel cover lower No.2, followed by the steering wheel cover lower No.3, and then take out the horn button assembly.

Remove the lower No. 2 steering wheel cover and then the lower No. 3 steering wheel cover.

Disconnect the connector, remove the 2 screws, and take out the switch as illustrated.

Remove the steering wheel cover lower No.2.

Disconnect the connector from the Cruise Control Main Switch, remove the 2 screws, and take out the switch.

Begin by observing Restraint Systems Service Precautions.

Connect the cable to the negative battery terminal.

Remove the horn button assembly and the cruise control main switch by disconnecting the connectors and removing the 2 screws.

Remove the Steering Wheel Cover Lower No.2, Steering Wheel Cover Lower No.3, and the Horn Button Assembly.

Install the steering wheel cover lower No.3 and then the steering wheel cover lower No.2.

Check the SRS warning light as part of the diagnostic overview of the diagnosis system.

Secure it with the 2 screws, applying a torque of 2.4 Nm (24 kgf-cm, 21 in-lbf).

Remove the Steering Wheel Cover Lower No.2, Steering Wheel Cover Lower No.3, and the Horn Button Assembly.

Inspect the SRS warning light for proper functionality.

Reinstall the steering pad.

Disconnect the cable from the negative battery terminal and wait at least 90 seconds to disable the SRS system.

Inspect the SRS warning light for proper function.

Remove the lower No. 2 steering wheel cover, followed by the lower No. 3 steering wheel cover.

The lower No. 3 steering wheel cover and the lower No. 2 steering wheel cover.

Secure it with the 2 screws and connect the connector.
