OEM Toyota Venza Hazard Warning Switch

Toyota Venza Hazard Warning Switch Parts and Q&A

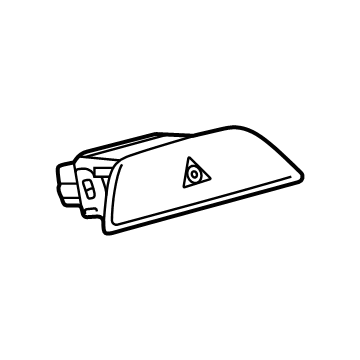

• Display Switch, Driver Side
  84977-0T010
  Q: How to install the Hazard Warning Switch on Toyota Venza?

  A:

  The first step for installing the Hazard Warning Switch involves fastening the 4 claws for driver monitor switch position. The radio receiver assembly goes next and then the number one instrument panel speaker panel. Add the No. 2 instrument panel speaker panel sub-assembly after the console box sub-assembly and position indicator housing assembly and shift lever knob sub-assembly. The installer must complete installation of the lower instrument panel sub-assembly before adding the No. 2 instrument panel under cover sub-assembly. Proceed to install the cowl side trim sub-assembly RH by using the same installation method for the LH side and then install front door scuff plate RH followed by installing the RH side using the same procedure for the LH side. Install the lower No. 1 instrument panel finish panel followed by the cowl side trim sub-assembly LH and finish with the front door scuff plate LH. The last steps include fitting the air conditioning control assembly and console box assembly followed by installation of the No. 2 console box carpet and the upper console panel sub-assembly (w/o Seat Heater System or w/ Seat Heater System as applicable).

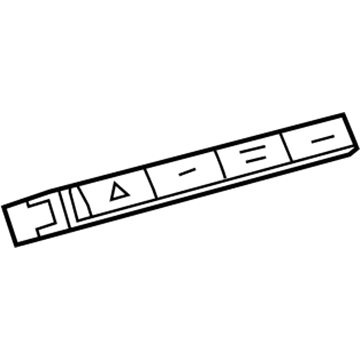

• Display Switch, Driver Side
  84977-0T020
  Q: How to remove the Hazard Warning Switch on Toyota Venza?

  A:

  The procedure starts by taking out the Upper Console Panel Sub-Assembly without Seat Heater System followed by its equivalent version with Seat Heater System when present. The work sequence starts by extracting the No. 2 Console Box Carpet and then continues with Console Box Assembly removal followed by the Air Conditioning Control Assembly. The maintenance process starts by disconnecting the Front Door Scuff Plate LH and the Cowl Side Trim Sub-Assembly LH before proceeding to take off the Lower No. 1 Instrument Panel Finish Panel. The procedure needs to be performed two more times for the Front Door Scuff Plate RH along with the Cowl Side Trim Sub-Assembly RH. The technician should then proceed with unfastening the No. 2 Instrument Panel Under Cover Sub-Assembly followed by the Lower Instrument Panel Sub-Assembly and Shift Lever Knob Sub-Assembly and finally the Position Indicator Housing Assembly. After removing the Console Box Sub-Assembly users should proceed with taking out the No. 2 Instrument Panel Speaker Panel Sub-Assembly. The owner should first remove the Radio Receiver Assembly with Bracket when the vehicle lacks a Navigation System but they must take out the Navigation Receiver Assembly with Bracket when a Navigation System is present. A screwdriver disconnects the 4 claws from the Drive Monitor Switch to extract it from the position.
