How to install the Starter on Toyota Tundra?

For 1GR-FE engine starter assembly installation with the 2.0 kW Type starter you need to install and tighten the two bolts reaching 58 Nm (591 kgf-cm, 43 ft-lbf) torque. Connect the starter wire to its connector then fasten it with a nut that needs to be tightened to 9.8 Nm (100 kgf-cm, 87 in-lbf). Finally, install the terminal cap. After the starter installation proceed to connect the cable to the negative battery terminal although some systems need initialization upon reattaching the cable.

How to remove and replace the Starter for a 1.6 kW Type on Toyota Tundra?

The first step to remove and replace the Starter (for 1.6 kW Type) requires disconnecting the negative battery cable but only after waiting 90 seconds after turning OFF the ignition switch because the navigation system needs time to record memory and settings. To access the starter assembly begin by unscrewing the terminal cap followed by disconnection of the starter wire through its nut and removal of both starter connector and two bolts holding the starter in place. Place the starter assembly correctly and bolt it to position using two bolts which should be torqued to 58 N.m (591 kgf.cm, 43 ft.lbf). Connect the starter connector followed by attaching the starter wire via its nut and secure it at 9.8 N.m (100 kgf.cm, 87 in.lbf) torque before final installation of the terminal cap. Connect the negative battery terminal cable while acknowledging that particular systems need to perform an initialization process after reconnection.

OEM Toyota Tundra Starter

Starter Ignition

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Starters found

View related parts
Toyota Tundra Starter Assembly Part Number: 28100-0S050
$220.17 MSRP: $314.36
You Save: $94.19 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Motor; Starter
- Manufacturer Note: 12V 2.0KW
- Replaced by: 28100-38080
- Replaces: 28100-38040, 28100-0S011, 28100-38041
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2021 Toyota Tundra | 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail, TRD Pro | 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-50100-84
$117.39 MSRP: $163.33
You Save: $45.94 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter Assembly; Starter Motor
- Replaces: 28100-50100
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-31131
$219.82 MSRP: $313.86
You Save: $94.04 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor; Alternators
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2014 Toyota Tundra | Base, SR, SR5 | 6 Cyl 4.0 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-31050-84
$154.48 MSRP: $217.33
You Save: $62.85 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter; Starter Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2010 Toyota Tundra | Base, SR5 | 6 Cyl 4.0 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-50090-84
$167.82 MSRP: $236.25
You Save: $68.43 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-50090
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2009 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-0S060
$318.38 MSRP: $454.58
You Save: $136.20 (30%)
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor; Alternators
- Manufacturer Note: 12V 2.0KW,COLD AREA SPEC
- Replaces: 28100-0S021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2019 Toyota Tundra | Base, Limited, Platinum, SR, SR5 | 8 Cyl 4.6 L GAS
View related parts
Toyota Tundra Starter Assembly Part Number: 28100-50070-84
$117.39 MSRP: $163.33
You Save: $45.94 (29%)
ADD TO CART
Product Specifications
- Other Name: REMAN,STARTER ASSY; Starter
- Replaces: 28100-50070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-50040-84
$134.41 MSRP: $188.87
You Save: $54.46 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter Assembly; Starter Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000 Toyota Tundra | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-07010-84
$164.29 MSRP: $231.25
You Save: $66.96 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter; Starter Motor
- Replaces: 28100-0W070, 28100-07010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-50101-84
$140.87 MSRP: $198.03
You Save: $57.16 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-50101
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2009 Toyota Tundra | Base, Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-62030-84
$146.23 MSRP: $205.63
You Save: $59.40 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter; Starter Motor
- Replaces: 28100-62030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-31040-84
$149.96 MSRP: $210.92
You Save: $60.96 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter; Starter Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2010 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Starter Assembly Part Number: 28100-F4021
$185.92 MSRP: $265.45
You Save: $79.53 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: STARTER ASSY
- Replaces: 28100-F4020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2025 Toyota Tundra | 1794 Edition, Limited, Platinum, SR, SR5 | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts
Toyota Tundra Starter Part Number: 28100-70090
$211.79 MSRP: $302.38
You Save: $90.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly
- Manufacturer Note: 12V 1.7KW
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2025 Toyota Tundra | 1794 Edition, Capstone, Limited, Platinum, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.4 L GAS
View related parts

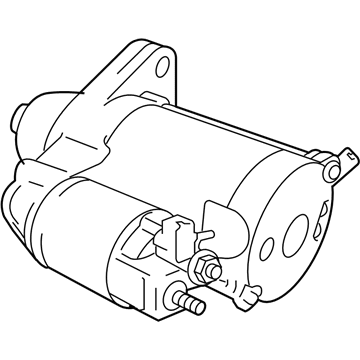

Toyota Tundra Starter Part Number: 28100-31041
$235.20 MSRP: $335.81
You Save: $100.61 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Manufacturer Note: 12V 1.6KW
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2014 Toyota Tundra | Base, SR, SR5 | 6 Cyl 4.0 L GAS

Toyota Tundra Starter

Choose genuine Starter that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Starter for your Toyota Tundra? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tundra parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Tundra Starter converts the electricity in the battery into the mechanical energy that cranks the engine to start combustion. The Starter is powered with heavy-gauge wiring and is energized by an externally mounted solenoid connected to the ignition switch, relay, and safety circuitry preventing operation when the vehicle is in gear. Within the metal casing, an armature rotates in field coils or permanent magnets. When current is applied, electromagnetic force can rotate the Starter and, via the drive system affixed to it, to rotate the flywheel ring gear. An overrunning clutch is installed, which engages when the engine fires, protecting the assembly from excessive speed. In those versions where gear reduction is employed, the armature torque is transmitted via reduction gears to the drive, giving additional turning force without increasing the size of the motor. The Starter design that Toyota applied in the Tundra focuses on reliable engagement and fast crank speed. Usually, when operating normally, the Starter will pull a lot of current, and Toyota has taken care of this through heavy internal contacts on all Tundra units.

Toyota Tundra Starter Parts and Q&A

Starter Assembly
28100-0S050
Q: How to install the Starter on Toyota Tundra?
A:
For 1GR-FE engine starter assembly installation with the 2.0 kW Type starter you need to install and tighten the two bolts reaching 58 Nm (591 kgf-cm, 43 ft-lbf) torque. Connect the starter wire to its connector then fasten it with a nut that needs to be tightened to 9.8 Nm (100 kgf-cm, 87 in-lbf). Finally, install the terminal cap. After the starter installation proceed to connect the cable to the negative battery terminal although some systems need initialization upon reattaching the cable.
Starter
28100-50090-84
Q: How to remove and replace the Starter for a 1.6 kW Type on Toyota Tundra?
A:
The first step to remove and replace the Starter (for 1.6 kW Type) requires disconnecting the negative battery cable but only after waiting 90 seconds after turning OFF the ignition switch because the navigation system needs time to record memory and settings. To access the starter assembly begin by unscrewing the terminal cap followed by disconnection of the starter wire through its nut and removal of both starter connector and two bolts holding the starter in place. Place the starter assembly correctly and bolt it to position using two bolts which should be torqued to 58 N.m (591 kgf.cm, 43 ft.lbf). Connect the starter connector followed by attaching the starter wire via its nut and secure it at 9.8 N.m (100 kgf.cm, 87 in.lbf) torque before final installation of the terminal cap. Connect the negative battery terminal cable while acknowledging that particular systems need to perform an initialization process after reconnection.
