OEM Toyota Sienna Power Steering Pump

Toyota Sienna Power Steering Pump Parts and Q&A

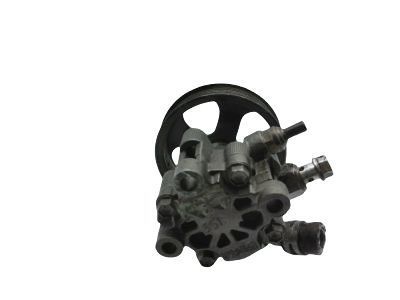

• Power Steering Pump
  44310-08010
  Q: How to service and repair the power steering pump on Toyota Sienna?

  A:

  The process to repair power steering pump begins with removing the power steering suction port union by unfastening both the bolt and union and replacing the O-ring afterward. The operation starts with removing the flow control valve components by independently detaching the pressure port union and its O-ring before extracting both the flow control valve and compression spring. Move to the next step which includes unscrewing both bolts and nuts from the vane pump bracket rear. You should first detach the vane pump housing rear from the front by unscrewing the 4 bolts before removing the gasket with two O-rings. Move on to detach the wave washer together with the vane pump side plate rear. The sequence continues with the removal of vane pump cam ring and vane pump shaft snap ring through screwdriver usage. The 10 vane pump plates must be removed first from the rotor followed by removing the rotor itself. Pursue this step by untighting the bolt from the w/pulley shaft sub-assembly and pump bracket front. Phase the vane pump housing oil seal removal from the front side with a screwdriver while avoiding contact with the bushing of the vane pump housing front.
• Power Steering Pump
  44310-08020
  Q: How to remove and replace the Power Steering Pump on Toyota Sienna?

  A:

  Before replacing a power steering vane pump you must drain all power steering fluid from the system. The first step involves taking out the front right wheel alongside the right side front fender apron seal. You should remove the fan and generator V belt after that. The No. 1 Fluid Reservoir to Pump Hose clip must be slid first then the vane pump assembly hose can be taken off. Empirical evidence shows it is essential to remove the union bolt so you can disconnect the pressure feed tube assembly from the vane pump assembly while extracting its gasket from the pressure feed tube assembly. The power steering fluid pressure switch connector requires disconnection. By employing Special Service Tool: 09249-63010 users should first free bolt (A) then remove bolt (B) before extracting the vane pump assembly while taking away the bolt which fastens the assembly.
