How to remove the front lower ball joint on Toyota Sequoia?

The first step to remove the front lower ball joint requires front-wheel removal. You should not remove the 4 lower ball joint set bolts at this time while loosening them. The disconnection process of the tie rod end includes removing its nut and cotter pin before utilizing special service tool: 09610-20012 to separate the tie rod end from the lower ball joint. Start with lower ball joint removal by detaching its cotter pin and nut followed by tool utilization of special service tool: 09628-62011 for disconnecting it from the lower suspension arm. Proceed by extracting the 4 lower ball joint set bolts before raising the upper suspension arm with steering knuckle and removing the lower ball joint with proper support for the upper components.

How to install the front lower ball joint on Toyota Sequoia?

Start by lifting upward on the upper suspension arm with the steering knuckle to correctly position the lower ball joint before placing temporary 4 bolts. Use a set nut and new cotter pin to connect the lower ball joint to its position on the lower suspension arm while applying torque at 159 Nm (1,621 kgf-cm, 117 ft. lbs). Additional torque of 60 degrees should be applied to the nut when the cotter pin holes are not aligned properly. Proceed by joining the tie rod end with the ball joint through a new nut and cotter pin installation while reaching a torque level of 91 Nm (930 kgf-cm, 67 ft. lbs.) followed by a 60° nut tightening sequence if the cotter pin holes are misaligned. Perform a torque of 65 Nm (663 kgf-cm, 48 ft. lbs.) on the 4 bolts of the lower ball joint before installing the front wheel using a torque of 110 Nm (1,150 kgf-cm, 83 ft. lbs.). To complete the procedure you must check the front wheel alignment and carry out zero point calibration on steering angle and master cylinder pressure sensors alongside yaw rate and deceleration sensors.

OEM Toyota Sequoia Ball Joint

Control Arm Joint

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Ball Joints found

View related parts

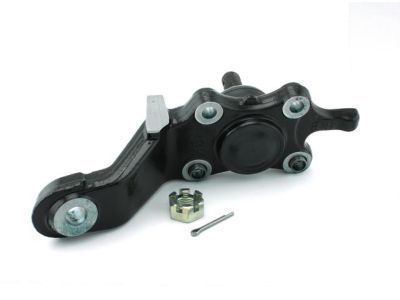

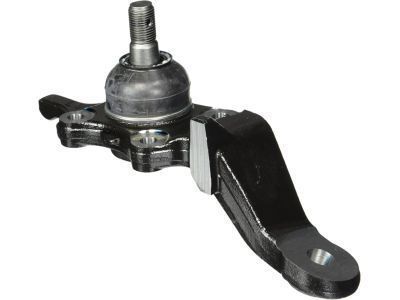

Toyota Sequoia Lower Ball Joint, Front Driver Side
Part Number: 43340-39465
$127.24 MSRP: $180.13
You Save: $52.89 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Left Lower; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint; Ball Joint
- Position: Front Driver Side
- Replaces: 43340-39475, 43340-39325, 43340-39455
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

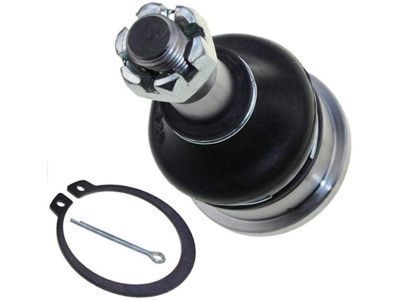

Toyota Sequoia Upper Ball Joint, Front
Part Number: 43310-39016
$49.94 MSRP: $69.51
You Save: $19.57 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Front Upper Ball; Suspension Ball Joint, Front Upper; Upper Ball Joints; Front Upper Ball Joint Assembly for Driver & Passenger Side.
- Position: Front Upper
- Replaces: 43310-39085, 43310-39065
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

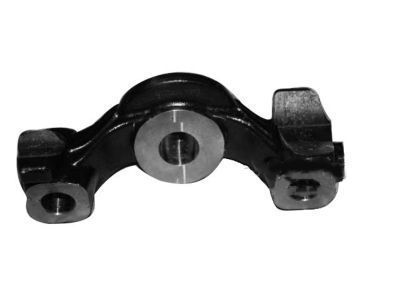

Toyota Sequoia Lower Ball Joint, Driver Side
Part Number: 48626-0C011
$116.95 MSRP: $164.16
You Save: $47.21 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Attachment, Lower Ball; Suspension Control Arm Bracket, Left; Ball Joint; Control Arm Bracket; Attachment, Front Lower Ball Joint, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

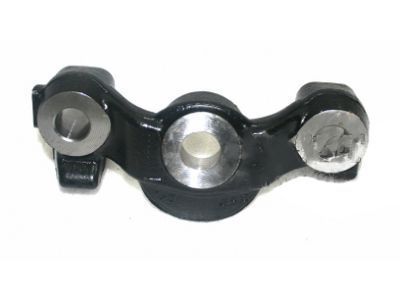

Toyota Sequoia Lower Ball Joint, Passenger Side
Part Number: 48625-0C011
$124.07 MSRP: $175.64
You Save: $51.57 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Attachment, Lower Ball; Suspension Control Arm Bracket, Right; Ball Joint; Control Arm Bracket; Attachment, Front Lower Ball Joint, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts

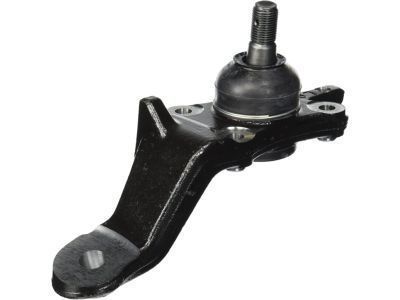

Toyota Sequoia Lower Ball Joint, Front Driver Side
Part Number: 43340-39595
$147.10 MSRP: $208.24
You Save: $61.14 (30%)
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Left Lower; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint; Ball Joint
- Position: Front Driver Side
- Replaces: 43340-39495, 43340-39575, 43340-39515
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

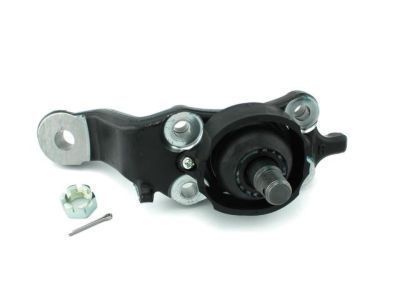

Toyota Sequoia Lower Ball Joint, Front Driver Side
Part Number: 43340-39485
$132.06 MSRP: $186.95
You Save: $54.89 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Left Lower; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint; Ball Joint
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

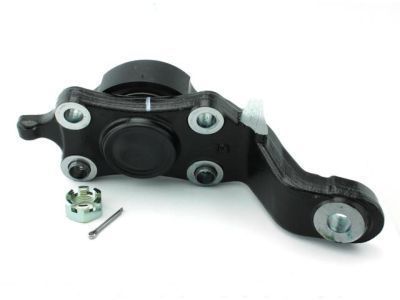

Toyota Sequoia Lower Ball Joint, Front Driver Side
Part Number: 43340-39356
$108.65 MSRP: $152.52
You Save: $43.87 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Left Lower; Joint Assembly, Lower Ball, Front Driver Side; Suspension Ball Joint; Ball Joint
- Position: Front Driver Side
- Replaces: 43340-39355
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

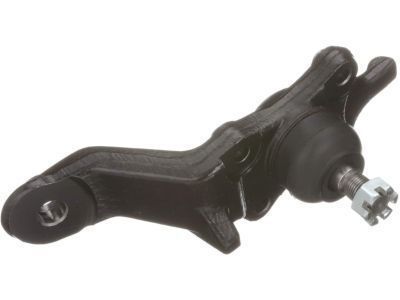

Toyota Sequoia Lower Ball Joint, Front Passenger Side
Part Number: 43330-39825
$145.81 MSRP: $206.40
You Save: $60.59 (30%)
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Right Lower; Joint Assembly, Lower Ball, Front Passenger Side; Suspension Ball Joint; Ball Joint
- Position: Front Passenger Side
- Replaces: 43330-39615, 43330-39805, 43330-39655
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Lower Ball Joint, Front Passenger Side
Part Number: 43330-39605
$132.06 MSRP: $186.95
You Save: $54.89 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Right Lower; Joint Assembly, Lower Ball, Front Passenger Side; Suspension Ball Joint; Ball Joint
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Lower Ball Joint, Front Passenger Side
Part Number: 43330-39466
$108.65 MSRP: $152.52
You Save: $43.87 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front Right Lower; Joint Assembly, Lower Ball, Front Passenger Side; Suspension Ball Joint; Ball Joint
- Position: Front Passenger Side
- Replaces: 43330-39465
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2003 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS

Toyota Sequoia Ball Joint

Choose genuine Ball Joint that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Ball Joint for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Ball Joint parts of Toyota Sequoia cars involve two of the automobile's essential systems, which are the suspension and the steering systems as it connects the control arms to the steering knuckles. These ball joints enable rotation in two planes, the movement that inhibits the translation of the other joint while also improving the vehicle handling, stability and ride comfort. Usually made of steel it is comprised of a bearing stud and a socket attached and covered with a rubber-like boot to shield the ball joint from the possibility of being contaminated by dirt or for grease to move around. Consequently, with regards to the Toyota Sequoia automobiles, the ball joints are important in the provision of proper tire to road traction enabling appropriate driving hazard conditions. Current ball joints have incorporated improved bearing designs and dust boot seals, thus these joints have hermetic sealing, thus do not require frequent greasing and, in fact, require much less attention from the driver than before.

Toyota Sequoia Ball Joint Parts and Q&A

Lower Ball Joint, Front Passenger Side
43330-39825
Q: How to remove the front lower ball joint on Toyota Sequoia?
A:
The first step to remove the front lower ball joint requires front-wheel removal. You should not remove the 4 lower ball joint set bolts at this time while loosening them. The disconnection process of the tie rod end includes removing its nut and cotter pin before utilizing special service tool: 09610-20012 to separate the tie rod end from the lower ball joint. Start with lower ball joint removal by detaching its cotter pin and nut followed by tool utilization of special service tool: 09628-62011 for disconnecting it from the lower suspension arm. Proceed by extracting the 4 lower ball joint set bolts before raising the upper suspension arm with Steering Knuckle and removing the lower ball joint with proper support for the upper components.
Lower Ball Joint, Front Driver Side
43340-39595
Q: How to install the front lower ball joint on Toyota Sequoia?
A:
Start by lifting upward on the upper suspension arm with the Steering Knuckle to correctly position the lower ball joint before placing temporary 4 bolts. Use a set nut and new cotter pin to connect the lower ball joint to its position on the lower suspension arm while applying torque at 159 Nm (1,621 kgf-cm, 117 ft. lbs). Additional torque of 60 degrees should be applied to the nut when the cotter pin holes are not aligned properly. Proceed by joining the tie rod end with the ball joint through a new nut and cotter pin installation while reaching a torque level of 91 Nm (930 kgf-cm, 67 ft. lbs.) followed by a 60° nut tightening sequence if the cotter pin holes are misaligned. Perform a torque of 65 Nm (663 kgf-cm, 48 ft. lbs.) on the 4 bolts of the lower ball joint before installing the front wheel using a torque of 110 Nm (1,150 kgf-cm, 83 ft. lbs.). To complete the procedure you must check the front wheel alignment and carry out zero point calibration on steering angle and master cylinder pressure sensors alongside yaw rate and deceleration sensors.
