How to remove the front Sway Bars on Toyota Sequoia?

The first step in unstabilizing the front bar involves removing the front wheel from its mounting point. The front Sway Bars assembly on the left-hand side needs its bolt and nut and sway bar link removed as well as a 6 mm hexagon wrench to hold the stud when the ball joint rotates with the nut. You must perform this process once again on the right-hand side of the vehicle. The procedure starts with front sway bar bracket removal through bolting out four pieces and detaching two brackets. Extract the front Sway Bars from the vehicle following which remove its 2 brackets together with cushions. The last step involves taking off both bushes present on the front Sway Bars to complete the removal process.

How to install the rear Sway Bars on Toyota Sequoia?

Begin rear Sway Bars installation by inserting the 2 bushes through their cutouts toward the back of the vehicle. These bushes must fit onto the outer bush stopper position of the rear Sway Bars. The 4 Sway Bars bolts should be used to temporarily secure the rear Sway Bars then tighten the rear sway bar bracket to 27 Nm (275 kgf-cm, 20 ft-lbf). Attach two nuts to the provisional installation of rear sway bar link assembly on the left side while performing the same steps for the right side. The installation of the propeller shaft assembly starts with 2WD vehicles but includes steps for installing the propeller shaft assembly for 4WD vehicles which also involves transferring heat insulator and removing propeller shaft heat insulator. Apply the exhaust pipe assembly tail according to the requirements of both the 3UR-FE and the 2UZ-FE engine types. Secure the suspension before using a torque wrench to fasten the left side of the rear sway bar link assembly to 98 Nm (999 kgf-cm, 72 ft-lbf). Then tighten the right side.

OEM Toyota Sequoia Sway Bars

Stabilizer Sway Bar Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Sway Bars found

View related parts

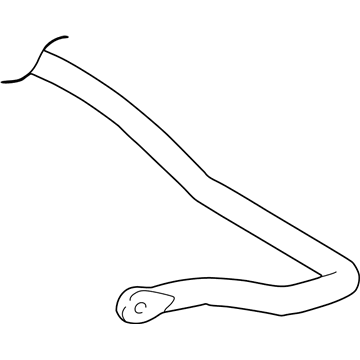

Toyota Sequoia Stabilizer Bar, Rear Part Number: 48812-AF010
$119.02 MSRP: $168.49
You Save: $49.47 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Manufacturer Note: W(SUN ROOF)
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

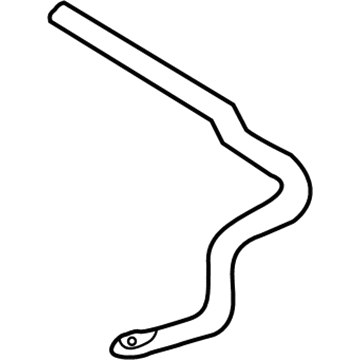

Toyota Sequoia Stabilizer Bar, Front Part Number: 48811-AF021
$134.64 MSRP: $190.61
You Save: $55.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Manufacturer Note: OFF ROAD PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2004 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Stabilizer Bar, Rear Part Number: 48812-AF020
$139.93 MSRP: $198.09
You Save: $58.16 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts

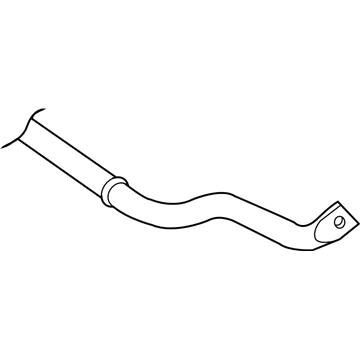

Toyota Sequoia Stabilizer Bar, Front Part Number: 48811-0C030
$147.10 MSRP: $208.24
You Save: $61.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Manufacturer Note: TRD SPORT PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Sequoia Stabilizer Bar, Front Part Number: 48811-AF040
$157.56 MSRP: $223.04
You Save: $65.48 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer; Suspension Stabilizer Bar, Front; Sway Bar; Bar, Stabilizer, Front
- Manufacturer Note: W(AIR SUSPENSION)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Stabilizer Bar, Front Part Number: 48811-AF030
$164.49 MSRP: $232.85
You Save: $68.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer; Suspension Stabilizer Bar, Front; Sway Bar; Bar, Stabilizer, Front
- Manufacturer Note: W(REAR STABILIZER)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7 L GAS
View related parts
Toyota Sequoia Stabilizer Bar, Front Part Number: 48804-0C010
$235.32 MSRP: $335.98
You Save: $100.66 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar Sub-Assembly, Front Stabilizer; Suspension Stabilizer Bar, Front; Bar, Stabilizer, Front
- Manufacturer Note: 3" LIFT KIT PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2025 Toyota Sequoia | 1794 Edition, Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota Sequoia Stabilizer Bar, Front Part Number: 48804-0C020
$318.27 MSRP: $454.41
You Save: $136.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar Sub-Assembly, Front Stabilizer; Suspension Stabilizer Bar, Front; Bar, Stabilizer, Front
- Manufacturer Note: TRD PRO PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2025 Toyota Sequoia | TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)
View related parts

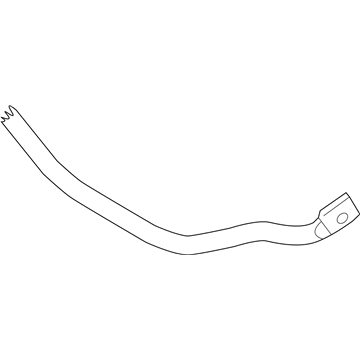

Toyota Sequoia Stabilizer Bar, Rear Part Number: 48812-0C020
$95.50 MSRP: $134.05
You Save: $38.55 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Manufacturer Note: TRD SPORT PACKAGE
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Nightshade, Platinum, SR5, TRD Pro, TRD Sport | 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Sequoia Stabilizer Bar, Rear Part Number: 48812-0C040
$101.90 MSRP: $143.03
You Save: $41.13 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2023-2025 Toyota Sequoia | 1794 Edition, Capstone, Limited, Platinum, SR5, TRD Pro | 6 Cyl 3.4 L FULL HYBRID EV-GAS (FHEV)

Toyota Sequoia Sway Bars

Choose genuine Sway Bars that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Sway Bars for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Sway Bars of Toyota Sequoia stabilize the vehicle by connecting suspension on both sides of the body. This makes the vehicle less prone to body roll during turns. The Sway Bars are applied in a Toyota Sequoia to counter the effect of chassis lean using bushings and end links to provide better handling and predictable steering reaction during rapid maneuvers. A Sway Bars assembly is made of durable metal, which can be deformed after colliding or rusted over time. The points of attachment can lengthen when stressed. The more frequent causes of clunking noises and loss of stability are worn bushings or end links. Those that use separate bushings can be renewed with replacement kits, whereas links with ball joints or integral bushings need to be replaced entirely when they become loose. It can be inspected periodically in loaded and unloaded suspension positions to identify cracked or deteriorated bushings and play in ball sockets before the looseness causing lack of control develops. The choice of a bar diameter will affect the overall stiffness. The thicker the Sway Bars, the more body roll is restricted. A Toyota suspension part repair will keep each Sequoia in charge of cornering, and Sway Bars hardware should be lubricated regularly to provide the Sequoia lineup with long-lasting performance.

Toyota Sequoia Sway Bars Parts and Q&A

Stabilizer Bar, Front
48811-0C030
Q: How to remove the front Sway Bars on Toyota Sequoia?
A:
The first step in unstabilizing the front bar involves removing the front wheel from its mounting point. The front Sway Bars assembly on the left-hand side needs its bolt and nut and sway bar link removed as well as a 6 mm hexagon wrench to hold the stud when the Ball Joint rotates with the nut. You must perform this process once again on the right-hand side of the vehicle. The procedure starts with front sway bar bracket removal through bolting out four pieces and detaching two brackets. Extract the front Sway Bars from the vehicle following which remove its 2 brackets together with cushions. The last step involves taking off both bushes present on the front Sway Bars to complete the removal process.
Stabilizer Bar, Rear
48812-0C020
Q: How to install the rear Sway Bars on Toyota Sequoia?
A:
Begin rear Sway Bars installation by inserting the 2 bushes through their cutouts toward the back of the vehicle. These bushes must fit onto the outer bush stopper position of the rear Sway Bars. The 4 Sway Bars bolts should be used to temporarily secure the rear Sway Bars then tighten the rear sway bar bracket to 27 Nm (275 kgf-cm, 20 ft-lbf). Attach two nuts to the provisional installation of rear sway bar link assembly on the left side while performing the same steps for the right side. The installation of the propeller shaft assembly starts with 2WD vehicles but includes steps for installing the propeller shaft assembly for 4WD vehicles which also involves transferring heat insulator and removing propeller shaft heat insulator. Apply the Exhaust Pipe assembly tail according to the requirements of both the 3UR-FE and the 2UZ-FE engine types. Secure the suspension before using a torque wrench to fasten the left side of the rear sway bar link assembly to 98 Nm (999 kgf-cm, 72 ft-lbf). Then tighten the right side.
