How to remove the rear windshield Washer Pump on Toyota Land Cruiser?

The first step for removing the rear windshield washer motor requires workers to detach the front fender mudguard LH, followed by the side step assembly LH, and ending with the body rocker panel moulding assembly LH. Detaching the front fender liner LH requires draining the washer fluid and removing both washer inlet sub-assembly and front fender liner LH. You should then remove the windshield washer jar assembly. The washer motor and assembly components can be removed by extracting the washer motor including its gasket according to the indicated direction.

How to install the windshield washer pump and pump assembly on Toyota Land Cruiser?

Install the windshield washer motor and pump assembly by placing the washer motor with gasket according to illustration specifications while connecting the connector. The windshield washer jar receives first 4 bolts beforestricted using specified order to 8.0 Nm (82 kgf-cm, 71 in-lbf), then the headlight cleaner hose connects to the headlight cleaner motor and pump. Users must join two connectors to each other before adding the clamp but motorists without headlight cleaning must just join the connector before securing the clamp. Apply the washer inlet sub-assembly by tightening the clip. Use any washer fluid to fill the windshield jar assembly through connecting the washer hose to the washing pump motor. Apply the left-hand front fender liner using 12 clips and 2 new grommets where installation requires a T30 "TORX" socket for 2 screws. Obtain the body rocker panel moulding assembly LH and the side step assembly LH prior to installation of the front fender mudguard LH.

OEM Toyota Land Cruiser Washer Pump

Windshield Washer Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Washer Pumps found

View related parts

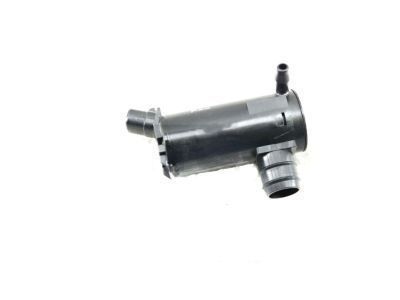

Toyota Land Cruiser Washer Pump
Part Number: 85330-06070
$62.67 MSRP: $87.98
You Save: $25.31 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Windshield Washer Pump; Washer Pump Repair Kit; Headlight Washer Pump; Front Pump; Front Washer Pump; Motor And Pump Assembly, Windshield Washer
- Replaces: 85330-47010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2021 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts

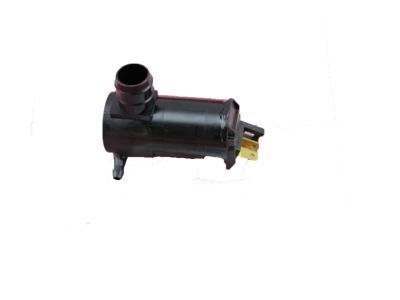

Toyota Land Cruiser Washer Pump
Part Number: 85330-60190
$75.47 MSRP: $105.94
You Save: $30.47 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Windshield Washer Pump; Washer Pump Repair Kit; Motor & Pump Assembly; Front Pump; Front Washer Pump; Rear Washer Pump; Motor And Pump Assembly, Windshield Washer
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2011 Toyota Land Cruiser | Base | 8 Cyl 5.7 L GAS
View related parts
Toyota Land Cruiser Washer Pump
Part Number: 85330-60180
$62.91 MSRP: $88.31
You Save: $25.40 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Back Glass Washer Pump; Washer Pump Repair Kit; Windshield Washer Pump; Rear Pump; Rear Washer Pump; Motor & Pump Assembly, Rear Washer; Motor Assembly, Rear Washer
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2013-2021, 2008-2011 Toyota Land Cruiser | Base, Heritage Edition | 8 Cyl 5.7 L GAS
View related parts
Toyota Land Cruiser Motor And Pump Assembly, Windshield Washer
Part Number: 85330-50020
$59.02 MSRP: $82.16
You Save: $23.14 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Washer Pump Repair Kit; Windshield Washer Pump
- Replaces: 85310-14080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1996 Toyota Land Cruiser | Base | 6 Cyl 4.0 L GAS, 6 Cyl 4.5 L GAS
View related parts
Toyota Land Cruiser Washer Pump
Part Number: 85330-60130
$78.79 MSRP: $110.59
You Save: $31.80 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Washer Pump Repair Kit; Windshield Washer Pump; Motor And Pump Assembly, Windshield Washer
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-1997 Toyota Land Cruiser | Base | 6 Cyl 4.5 L GAS
View related parts
Toyota Land Cruiser Washer Pump
Part Number: 85330-35080
$80.81 MSRP: $113.42
You Save: $32.61 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Windshield Washer Pump; Washer Pump Repair Kit; Front Washer Pump; Rear Washer Pump; Motor & Pump Assembly for Windshield and Rear Washers.
- Replaces: 85330-0C010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2002 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Motor And Pump Assembly, Windshield Washer
Part Number: 85330-35070
$87.09 MSRP: $122.24
You Save: $35.15 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Washer Pump Repair Kit; Windshield Washer Pump
- Manufacturer Note: JAR 5.0L
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Washer Pump
Part Number: 85330-50030
$87.09 MSRP: $122.24
You Save: $35.15 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor&Pump Assembly, F; Windshield Washer Pump; Washer Pump Repair Kit; Rear Washer Pump; Motor And Pump Assembly, Windshield Washer; Motor & Pump Assembly, Rear Washer
- Manufacturer Note: 4.5L TANK
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2007 Toyota Land Cruiser | Base | 8 Cyl 4.7 L GAS
View related parts
Toyota Land Cruiser Washer Pump
Part Number: 85310-22080
$62.91 MSRP: $88.31
You Save: $25.40 (29%)
Product Specifications
- Other Name: Motor&Pump Assembly, Washer; Washer Pump Repair Kit; Windshield Washer Pump; Motor Assembly, Rear Washer
- Replaces: 85310-22040, 85310-20100, 85310-20110, 85310-10130, 85310-12060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1990 Toyota Land Cruiser | Base | 6 Cyl 4.0 L GAS, 6 Cyl 4.2 L GAS
View related parts
Toyota Land Cruiser Washer Pump
Part Number: 85330-12310
Product Specifications
- Other Name: Motor&Pump Assembly, F; Washer Pump Repair Kit; Windshield Washer Pump
- Replaces: 85310-89107, 85310-14060, 85310-89103, 85310-20130, 85310-14050, 85310-14070, 85310-12130, 85310-12110, 85310-89106
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1987 Toyota Land Cruiser | Base | 6 Cyl 4.2 L GAS
View related parts
Toyota Land Cruiser Washer Pump
Part Number: 85310-89105
Product Specifications
- Other Name: Motor&Pump Assembly, Washer; Windshield Washer Pump; Washer Reservoir; Pump; Motor And Pump Assembly, Windshield Washer
- Replaces: 85310-18010, 85310-14030, 85310-10140, 85310-12120, 85310-1B010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984 Toyota Land Cruiser | Base | 6 Cyl 4.2 L GAS
View related parts
Toyota Land Cruiser Washer Pump, Rear
Part Number: 85340-60040
Product Specifications
- Other Name: Motor&Pump Assembly, Rear; Washer Pump Repair Kit; Windshield Washer Pump; Motor Assembly, Rear Washer
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991-1994 Toyota Land Cruiser | Base | 6 Cyl 4.0 L GAS, 6 Cyl 4.5 L GAS

Toyota Land Cruiser Washer Pump

Choose genuine Washer Pump that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Washer Pump for your Toyota Land Cruiser? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Land Cruiser parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Land Cruiser Washer Pump Parts and Q&A

Washer Pump
85330-60180
Q: How to remove the rear windshield Washer Pump on Toyota Land Cruiser?
A:
The first step for removing the rear windshield washer motor requires workers to detach the front fender mudguard LH, followed by the side step assembly LH, and ending with the body rocker panel moulding assembly LH. Detaching the front fender liner LH requires draining the washer fluid and removing both washer inlet sub-assembly and front fender liner LH. You should then remove the windshield washer jar assembly. The washer motor and assembly components can be removed by extracting the washer motor including its gasket according to the indicated direction.
Washer Pump
85330-60190
Q: How to install the windshield washer pump and pump assembly on Toyota Land Cruiser?
A:
Install the windshield washer motor and pump assembly by placing the washer motor with gasket according to illustration specifications while connecting the connector. The windshield washer jar receives first 4 bolts beforestricted using specified order to 8.0 Nm (82 kgf-cm, 71 in-lbf), then the headlight cleaner hose connects to the headlight cleaner motor and pump. Users must join two connectors to each other before adding the clamp but motorists without headlight cleaning must just join the connector before securing the clamp. Apply the washer inlet sub-assembly by tightening the clip. Use any washer fluid to fill the windshield jar assembly through connecting the washer hose to the washing pump motor. Apply the left-hand front fender liner using 12 clips and 2 new grommets where installation requires a T30 "TORX" socket for 2 screws. Obtain the body rocker panel moulding assembly LH and the side step assembly LH prior to installation of the front fender mudguard LH.
