How to remove the front Sway Bar Kit on Toyota FJ Cruiser?

The procedure to remove the front sway bar kit starts with removing both front wheels followed by the engine under cover sub-assembly. Proceed to remove the left-hand side front sway bar link assembly by disconnecting its 2 nuts and sway bar link; if the ball joint turns with the nut use a 6 mm hexagon wrench to stabilize the stud. The right-hand side removal process matches the same protocol as the left-hand side process. Follow it up by taking out 4 bolts and 2 sway bar brackets to detach the front sway bar kit. The sway bar kit needs its final installation step which is the removal of the 2 bushes attached to it.

How to install the rear Sway Bar Kit on Toyota FJ Cruiser?

Begin sway bar kit installation by firstly putting the 2 sway bar bushes on the sway bar kit where sway bar bushes must settle outside the bush stopper area. Install the sway bar kit together with its 2 sway bar bracket covers by using 4 bolts that need to be torqued at 30 Nm (306 kgf-cm, 22 ft-lbf). Place the sway bar link assembly by first putting the sway bar link into the nut followed by torquing it to 70 Nm (714 kgf-cm, 52 ft-lbf); when the ball joint rotates with the nut maintain stability by using a 6 mm hexagon wrench at the stud. Secure the 2 No. 1 retainers and 2 cushions with the sway bar link placed inside a spanner before tightening a new nut to 15 Nm (153 kgf-cm, 11 ft-lbf). The installation procedure for the right-hand side mirrors that of the left-hand side. To finish the process install the rear wheel by tightening the bolts to 112 Nm (1,137 kgf-cm, 82 ft-lbf).

OEM Toyota FJ Cruiser Sway Bar Kit

Stabilizer Sway Bar Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Sway Bar Kits found

View related parts

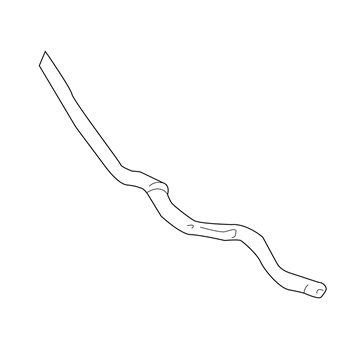

Toyota FJ Cruiser Stabilizer Bar, Rear
Part Number: 48812-60300
$98.34 MSRP: $138.04
You Save: $39.70 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2014 Toyota FJ Cruiser | Base | 6 Cyl 4.0 L GAS
View related parts

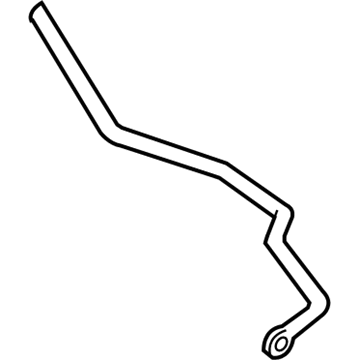

Toyota FJ Cruiser Stabilizer Bar, Rear
Part Number: 48812-60240
$92.54 MSRP: $129.89
You Save: $37.35 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2014 Toyota FJ Cruiser | Base | 6 Cyl 4.0 L GAS
View related parts
Toyota FJ Cruiser Stabilizer Bar, Rear
Part Number: 48812-60220
$124.89 MSRP: $176.80
You Save: $51.91 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota FJ Cruiser | Base, Trail Teams Special Edition, TRD Special Edition | 6 Cyl 4.0 L GAS
View related parts
Toyota FJ Cruiser Stabilizer Bar, Rear
Part Number: 48812-35120
$116.71 MSRP: $163.82
You Save: $47.11 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota FJ Cruiser | Base, Trail Teams Special Edition, TRD Special Edition | 6 Cyl 4.0 L GAS
View related parts
Toyota FJ Cruiser Stabilizer Bar, Front
Part Number: 48811-60320
$162.26 MSRP: $229.69
You Save: $67.43 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2014 Toyota FJ Cruiser | Base | 6 Cyl 4.0 L GAS
View related parts
Toyota FJ Cruiser Bar, Stabilizer, Front
Part Number: 48811-60240
$168.01 MSRP: $237.84
You Save: $69.83 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota FJ Cruiser | Base, Trail Teams Special Edition, TRD Special Edition | 6 Cyl 4.0 L GAS
View related parts
Toyota FJ Cruiser Stabilizer Bar, Front
Part Number: 48811-60230
$168.01 MSRP: $237.84
You Save: $69.83 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer; Suspension Stabilizer Bar, Front; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota FJ Cruiser | Base, Trail Teams Special Edition, TRD Special Edition | 6 Cyl 4.0 L GAS
View related parts
Toyota FJ Cruiser Stabilizer Bar, Front
Part Number: 48811-35460
$172.36 MSRP: $244.00
You Save: $71.64 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Front; Suspension Stabilizer Bar, Front; Sway Bar
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2014 Toyota FJ Cruiser | Base | 6 Cyl 4.0 L GAS

Toyota FJ Cruiser Sway Bar Kit

Choose genuine Sway Bar Kit that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Sway Bar Kit for your Toyota FJ Cruiser? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota FJ Cruiser parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Sway Bar Kit in the Toyota FJ Cruiser has been commissioned to be very effective in its performance and it is highly recommended in the improvement of the maneuverability of the FJ Cruiser. It reduces body rolls while cornering and while on irregular terrains helping in enhancing control, stability and balance of the vehicle. The Sway Bar Kit connects opposite wheels through a torsion spring and in this way it raises roll stiffness without changing the vertical spring rates; thus the wheels remain close to the same height and grip is improved. Because of the variety of FJ Cruiser models, this Sway Bar Kit is engineered to augment performance and stability, thus, it is an absolute necessity whether one is using it for off-road purposes or for daily use. The Sway Bar Kit enhances handling capabilities of the Toyota FJ Cruiser heightened by the vehicles 4.0-liter V6, and exquisite design. This has made the Sway Bar Kit unique in the automotive market mainly because if balances comfort with performance and has a smooth ride even on tracks that have not been well developed. In terms of exterior design of the automobile, the Toyota FJ Cruiser retains its daring looks and utility elements; the Sway Bar Kit ensures this automotive icon's glorious off-road reputation does not falter. In a nutshell the Toyota FJ Cruiser Sway Bar kit is another classic of Toyota Company that intended to improve the drive experience of FJ Cruiser along with security and steadiness on any surface.

Toyota FJ Cruiser Sway Bar Kit Parts and Q&A

Bar, Stabilizer, Front
48811-60240
Q: How to remove the front Sway Bar Kit on Toyota FJ Cruiser?
A:
The procedure to remove the front sway bar kit starts with removing both front wheels followed by the engine under cover sub-assembly. Proceed to remove the left-hand side front sway bar link assembly by disconnecting its 2 nuts and sway bar link; if the ball joint turns with the nut use a 6 mm hexagon wrench to stabilize the stud. The right-hand side removal process matches the same protocol as the left-hand side process. Follow it up by taking out 4 bolts and 2 sway bar brackets to detach the front sway bar kit. The sway bar kit needs its final installation step which is the removal of the 2 bushes attached to it.
Stabilizer Bar, Rear
48812-35120
Q: How to install the rear Sway Bar Kit on Toyota FJ Cruiser?
A:
Begin sway bar kit installation by firstly putting the 2 sway bar bushes on the sway bar kit where sway bar bushes must settle outside the bush stopper area. Install the sway bar kit together with its 2 sway bar bracket covers by using 4 bolts that need to be torqued at 30 Nm (306 kgf-cm, 22 ft-lbf). Place the sway bar link assembly by first putting the sway bar link into the nut followed by torquing it to 70 Nm (714 kgf-cm, 52 ft-lbf); when the ball joint rotates with the nut maintain stability by using a 6 mm hexagon wrench at the stud. Secure the 2 No. 1 retainers and 2 cushions with the sway bar link placed inside a spanner before tightening a new nut to 15 Nm (153 kgf-cm, 11 ft-lbf). The installation procedure for the right-hand side mirrors that of the left-hand side. To finish the process install the rear wheel by tightening the bolts to 112 Nm (1,137 kgf-cm, 82 ft-lbf).
