How to service and repair the wheel hub on Toyota Celica?

Start wheel hub servicing after removing the front wheel while ensuring proper torque of 103 Nm reaches 1,050 kgf-cm or 76 ft. lbs. Bearing backlash and axle hub deviation measurements occur by removing 2 bolts, brake caliper and disc followed by proper support of the brake caliper. Some dial indicator tools should measure hub axle backlash at its midpoint. The measurement should not exceed 0.05 mm (0.0020 inch) and requires new bearing installation. The surface measurement of the axle hub away from its bolt needs to be within 0.07 mm (0.0028 inch); surpassing this level requires replacing the axle hub. Securely place the reinstalling combination of disc and two bolts and brake caliper into place with a torque of 107 Nm (1,090 kgf-cm, 79 ft. lbs.). Use the Special Service Tool: 09930-00010 along with a hammer to unstake the lock nut before removing it with brake-applying torque of 216 Nm (2,200 kgf-cm, 159 ft.lbs). Securely support the brake caliper before removing both the disc and caliper unit. Use a 8.0 Nm torque (82 kgf-cm, 71 inch lbs.) to remove the ABS speed sensor when present on the system. For the shock absorber lower side nuts application use 153 Nm (1,560 kgf-cm, 113 ft. lbs.) torque but maintain the nuts in place. The tie rod end disconnect from the steering knuckle requires removal of the cotter pin and nut which must reach a torque of 49 Nm (500 kgf-cm, 36 ft. lbs.) throughout its installation procedure; alignment issues between new cotter pin holes will need additional nut tightening but up to 60 degrees. Disconnect the tie rod end through the use of Special Service Tool: 09610-20012. The lower ball joint connection requires its removal through disassembly of 2 nuts and a bolt with 142 Nm (1,450 kgf-cm, 105 ft. lbs.) torque setting. Unbolt the steering knuckle with axle hub from the lower shock absorber side by detaching its 2 bolts and nuts while being mindful of boot and ABS speed sensor rotor safety. The installation process requires following the opposite sequence of removal while a subsequent signal check for the ABS speed sensor and front wheel alignment should be performed.

OEM Toyota Celica Wheel Hub

Wheel Axle Hub

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Wheel Hubs found

View related parts

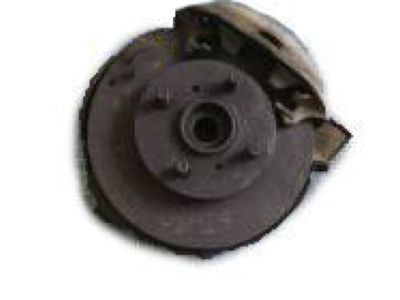

Toyota Celica Front Hub
Part Number: 43502-20170
$175.53 MSRP: $248.49
You Save: $72.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assembly, Front Axle; Wheel Hub Repair Kit; Wheel Hub; Hub; Hub Sub-Assembly, Front Axle, Passenger Side; Hub Sub-Assembly, Front Axle, Driver Side
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1999 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Front Hub
Part Number: 43502-20100
$162.73 MSRP: $230.36
You Save: $67.63 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assembly, Front Axle; Wheel Hub Repair Kit; Wheel Hub; Hub; Hub Sub-Assembly, Front Axle, Passenger Side; Hub Sub-Assembly, Front Axle, Driver Side
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1993 Toyota Celica | All Trac, GT, GTS, GTS All Trac, ST | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Hub Assembly
Part Number: 42410-01020
$381.56 MSRP: $559.19
You Save: $177.63 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub&Bearing Assembly; Rear Wheel Bearing and Hub Assembly; Wheel Hub Repair Kit; Axle Bearing.; Hub & Bearing Assembly, Rear Axle, Passenger & Driver Side; Wheel Bearing and Hub Assembly.
- Replaces: 42410-20190, 42410-12260, 42410-02080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Hub, Front
Part Number: 43502-32050
$147.80 MSRP: $209.23
You Save: $61.43 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assembly, Front Axle; Wheel Hub Repair Kit; Wheel Hub Kit; Wheel Hub
- Position: Front
- Replaces: 43502-32040, 43502-20040, 43502-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | All Trac, GT, GTS, ST | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Hub Assembly, Rear
Part Number: 42450-63011
$442.46 MSRP: $648.43
You Save: $205.97 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub&Bearing Assembly, Rear Axle; Wheel Bearing & Hub Assembly; Wheel Hub Repair Kit; Axle Bearing; Hub & Bearing Assembly, Rear Axle, Passenger & Driver Side; Wheel Bearing and Hub Assembly.
- Manufacturer Note: W(ABS)
- Position: Rear
- Replaces: 42450-32040, 42450-32041
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Wheel Hub, Front
Part Number: 43502-02080
$110.90 MSRP: $155.67
You Save: $44.77 (29%)
Product Specifications
- Other Name: Hub Sub-Assembly, Front Axle; Wheel Hub, Front; Wheel Hub Repair Kit; Hub Assembly; Front Hub; Hub; Hub Sub-Assembly, Front Axle, Passenger Side; Hub Sub-Assembly, Front Axle, Driver Side
- Position: Front
- Replaces: 43502-32080, 43502-02100
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Front Hub
Part Number: 43502-20090
Product Specifications
- Other Name: Hub Sub-Assembly, Front Axle; Wheel Hub Repair Kit; Wheel Hub; Hub; Hub Sub-Assembly, Front Axle, Passenger Side; Hub Sub-Assembly, Front Axle, Driver Side
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1991 Toyota Celica | ST | 4 Cyl 1.6 L GAS
View related parts
Toyota Celica Front Hub
Part Number: 43503-32020
Product Specifications
- Other Name: Hub Sub-Assembly, Front Axle; Wheel Hub Repair Kit; Wheel Hub; Hub
- Position: Front
- Replaces: 43503-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1989 Toyota Celica | All Trac, GT, GTS, ST | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Front Hub
Part Number: 43502-29035
Product Specifications
- Other Name: Hub; Wheel Hub Repair Kit; Wheel Bearing; Wheel Hub; Hub & Bearing; Hub Sub-Assembly, Front Axle; Hub, Front Axle
- Replaces: 43502-29015, 43502-22020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Celica | GT, GTS, ST, Supra | 4 Cyl 2.4 L GAS, 6 Cyl 2.8 L GAS
View related parts
Toyota Celica Hub&Bearing Assembly
Part Number: 42410-32050
Product Specifications
- Other Name: HUB & BEARING ASSY; Wheel Hub Repair Kit; Wheel Hub
- Replaces: 42301-32020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | GT, GTS, ST | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Hub Assembly
Part Number: 42410-32031
Product Specifications
- Other Name: Hub&Bearing Assembly; Wheel Hub Repair Kit; Wheel Hub; Hub; Spindle
- Replaces: 42410-20170, 42301-20140, 42410-20140, 42301-32031
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1993 Toyota Celica | GT, GTS, ST | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Hub & Bearing
Part Number: 42410-20150
Product Specifications
- Other Name: Hub&Bearing Assembly; Wheel Hub Repair Kit; Axle Bearing; Hub; Hub & Bearing Assembly, Rear Axle, Passenger Side; Hub & Bearing Assembly, Rear Axle, Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1999 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Hub
Part Number: 42410-20130
Product Specifications
- Other Name: Hub&Bearing Assembly; Wheel Hub Repair Kit; Wheel Hub
- Replaces: 42301-20130, 42301-20080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1991 Toyota Celica | GT, ST | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Hub Assembly, Front
Part Number: 43502-20110
$163.44 MSRP: $231.37
You Save: $67.93 (30%)
Ships in 1-3 Business Days
Product Specifications
- Other Name: Hub Sub-Assembly, Front Axle; Wheel Hub Repair Kit; Wheel Hub Kit; Wheel Hub; Hub
- Position: Front
- Replaces: 43502-20080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | GT, ST | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Hub Assembly, Rear
Part Number: 42450-20030
Product Specifications
- Other Name: Hub&Bearing Assembly, Rear Axle; Wheel Hub Repair Kit; Wheel Hub; Hub; Hub & Bearing Assembly, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1993 Toyota Celica | GT, GTS, ST | 4 Cyl 1.6 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Hub & Bearing, Rear
Part Number: 42450-20051
$394.55 MSRP: $578.22
You Save: $183.67 (32%)
Product Specifications
- Other Name: Hub&Bearing Assembly, Rear Axle; Wheel Hub Repair Kit; Wheel Bearing; Axle Bearing; Hub; Hub & Bearing Assembly, Rear Axle, Passenger Side; Hub & Bearing Assembly, Rear Axle, Driver Side
- Position: Rear
- Replaces: 42450-20050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1999 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS

Toyota Celica Wheel Hub

If you're thinking about purchasing OEM parts for your Toyota Celica, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Celica Wheel Hub at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Celica Wheel Hub Parts Questions & Experts Answers

Wheel Hub, Front
43502-02080
Q: How to service and repair the wheel hub on Toyota Celica?
A: Start wheel hub servicing after removing the front wheel while ensuring proper torque of 103 Nm reaches 1,050 kgf-cm or 76 ft. lbs. Bearing backlash and axle hub deviation measurements occur by removing 2 bolts, Brake Caliper and disc followed by proper support of the brake caliper. Some dial indicator tools should measure hub axle backlash at its midpoint. The measurement should not exceed 0.05 mm (0.0020 inch) and requires new bearing installation. The surface measurement of the axle hub away from its bolt needs to be within 0.07 mm (0.0028 inch); surpassing this level requires replacing the axle hub. Securely place the reinstalling combination of disc and two bolts and brake caliper into place with a torque of 107 Nm (1,090 kgf-cm, 79 ft. lbs.). Use the Special Service Tool: 09930-00010 along with a hammer to unstake the lock nut before removing it with brake-applying torque of 216 Nm (2,200 kgf-cm, 159 ft.lbs). Securely support the brake caliper before removing both the disc and caliper unit. Use a 8.0 Nm torque (82 kgf-cm, 71 inch lbs.) to remove the ABS speed sensor when present on the system. For the Shock Absorber lower side nuts application use 153 Nm (1,560 kgf-cm, 113 ft. lbs.) torque but maintain the nuts in place. The tie rod end disconnect from the steering knuckle requires removal of the cotter pin and nut which must reach a torque of 49 Nm (500 kgf-cm, 36 ft. lbs.) throughout its installation procedure; alignment issues between new cotter pin holes will need additional nut tightening but up to 60 degrees. Disconnect the tie rod end through the use of Special Service Tool: 09610-20012. The lower Ball Joint connection requires its removal through disassembly of 2 nuts and a bolt with 142 Nm (1,450 kgf-cm, 105 ft. lbs.) torque setting. Unbolt the steering knuckle with axle hub from the lower shock absorber side by detaching its 2 bolts and nuts while being mindful of boot and ABS speed sensor rotor safety. The installation process requires following the opposite sequence of removal while a subsequent signal check for the ABS speed sensor and front wheel alignment should be performed.
