How to service and repair the ball joint on Toyota Celica?

The procedure for lower ball joint service and repair starts by removing the steering knuckle with axle hub then continuing with lower ball joint removal through nut and cotter pin removal. Special Service Tool number 09628-62011 should be used for removing the lower ball joint. You should test the ball joint rotation by turning the ball joint stud five times in alternating directions before securing the nut. The torque wrench operation should maintain a continuous movement rate of 2 - 4 seconds per turn before recording the 5th turn reading that falls within 1.0 - 4.9 Nm (10 - 50 kgf-cm, 8.7 - 43 inch lbs.). The first step of installation requires ball joint attachment followed by nut tightening at 103 Nm torque after new cotter pin configuration. The nut should reach 60 degrees torque if there is misalignment between the cotter pin holes. The installation process includes attaching the steering knuckle with axle hub followed by ABS speed sensor testing after which front wheel alignment should be checked.

OEM Toyota Celica Ball Joint

Control Arm Joint

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Ball Joints found

View related parts

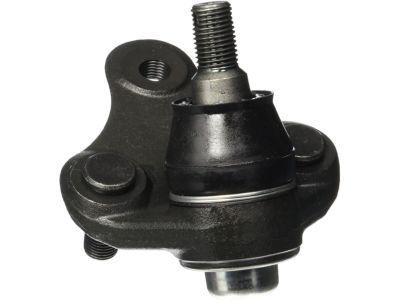

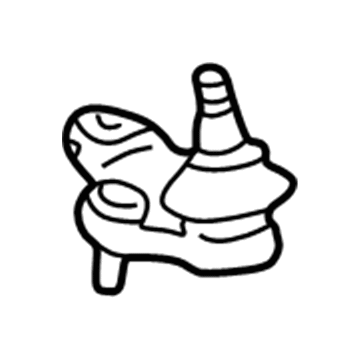

Toyota Celica Ball Joint, Lower
Part Number: 43330-09230
$65.52 MSRP: $91.97
You Save: $26.45 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint, Front; Lower Ball Joint; Front Passenger & Driver Side Assembly; Suspension Ball Joint
- Position: Lower
- Replaces: 43330-09070, 43330-49045
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Ball Joint, Lower
Part Number: 43330-29375
$71.68 MSRP: $100.62
You Save: $28.94 (29%)
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint; Lower Ball Joint; Joint Assembly, Lower Ball, Front Passenger Side; Joint Assembly, Lower Ball, Front Driver Side
- Position: Lower
- Replaces: 43330-29315, 43330-09030, 43330-29265
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1999 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Ball Joint, Lower
Part Number: 43330-29326
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Suspension Ball Joint; Lower Ball Joint
- Position: Lower
- Replaces: 43330-29225, 43330-29325
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1993 Toyota Celica | All Trac, GT, GTS, GTS All Trac, ST | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Ball Joint, Lower
Part Number: 43330-29185
Product Specifications
- Other Name: Joint Assembly, Lower Ball; Lower Ball Joint
- Position: Lower
- Replaces: 43330-29146
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | All Trac, GT, GTS, ST | 4 Cyl 2.0 L GAS

Toyota Celica Ball Joint

Choose genuine Ball Joint that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Ball Joint for your Toyota Celica? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Celica parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Ball Joint of Toyota Celica vehicles consists of those components of the car that connects the control arms to the steering knuckles; and are crucial in the suspension and steering parts of the car. These components enable the bike body to rotate freely in two planes without translating adding to the vehicle's maneuverability and stability. Suspension systems in Toyota Celica models often consist of two upper and two lower ball joints, which allows for the prime driving experience. The Toyota Celica Ball Joint is forged from steel material Starting from the bearing stub screwed with a socket and protected by rubber chemistry which guards the ball joint from dirt intrusions and allows the movement of grease between them. These ball joints come with an average of 80,000 miles and a higher level of adjustability of caster and camber of the car. And with new designs of Ball Bearings and Dust Boot Seals used in the Toyota Celica Ball Joint, set life and tire life is well improved for it is able to retain great tire surface contact with the road.

Toyota Celica Ball Joint Parts and Q&A

Ball Joint, Lower
43330-09230
Q: How to service and repair the ball joint on Toyota Celica?
A:
The procedure for lower ball joint service and repair starts by removing the steering knuckle with axle hub then continuing with lower ball joint removal through nut and cotter pin removal. Special Service Tool number 09628-62011 should be used for removing the lower ball joint. You should test the ball joint rotation by turning the ball joint stud five times in alternating directions before securing the nut. The torque wrench operation should maintain a continuous movement rate of 2 - 4 seconds per turn before recording the 5th turn reading that falls within 1.0 - 4.9 Nm (10 - 50 kgf-cm, 8.7 - 43 inch lbs.). The first step of installation requires ball joint attachment followed by nut tightening at 103 Nm torque after new cotter pin configuration. The nut should reach 60 degrees torque if there is misalignment between the cotter pin holes. The installation process includes attaching the steering knuckle with axle hub followed by ABS speed sensor testing after which front wheel alignment should be checked.
