How to service and repair the Sway Bars on Toyota Celica?

The service and repair process for the Sway Bars starts with removing sway bar links after unthreading the 2 nuts and sway bar link at 44 Nm torque (449 kgf-cm, 32 ft. lbs.). You need to secure the stud using a hexagon wrench that is 5 mm in size when the ball joint rotates with the nut. Apply this procedure to service the sway bar links on the second side. Proceed by removing the front suspension member with the lower suspension arm and then the sway bar by removing both bolts with bracket and bushing at 19 Nm torque values (194 kgf-cm, 14 ft. lbs.). Install the bushing so that its cutout faces the rear section and stays beyond the sway bar paint line on each side before eliminating the sway bar. Before installing the nut on the ball joint you must flip the ball joint stud backward and forward 5 times to check the sway bar link. Turn the nut with a constant motion using a torque wrench at a pace between 2 and 4 seconds per rotation then measure the torque on the fifth turn while striving to reach a value from 0.05 Nm to 1.0 Nm (0.5 kgf-cm to 10 kgf-cm or 0.4 inch lbs. to 8.7 inch lbs.). The front wheel alignment must be checked after the Sway Bars is correctly installed through the opposite procedure of removal.

OEM Toyota Celica Sway Bars

Stabilizer Sway Bar Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

30 Sway Bars found

View related parts

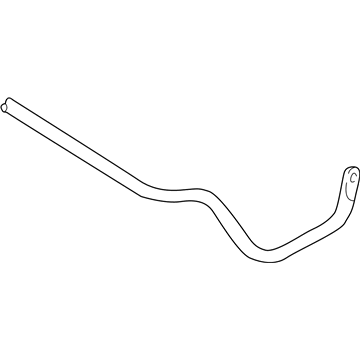

Toyota Celica Stabilizer Bar, Rear Part Number: 48812-2B031
$103.68 MSRP: $145.53
You Save: $41.85 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Suspension Stabilizer Bar, Rear; Sway Bar
- Position: Rear
- Replaces: 48812-2B030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Celica | GT, GTS | 4 Cyl 1.8 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48812-20870
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994 Toyota Celica | GT, ST | 4 Cyl 1.8 L GAS, 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48812-20640
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1993 Toyota Celica | All Trac, GTS All Trac | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48812-20210
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Sway Bar; Bar Sub-Assembly, Rear Stabilizer
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1989 Toyota Celica | All Trac | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48812-20170
Product Specifications
- Other Name: Bar Sub-Assembly, Rear Stabilizer; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1987-1989 Toyota Celica | GT | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48812-20150
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Sway Bar; Bar Sub-Assembly, Rear Stabilizer
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | GT, GTS, ST | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-20690
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993 Toyota Celica | GTS | 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-20650
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1993 Toyota Celica | All Trac, GTS All Trac | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-20580
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1993 Toyota Celica | GT, GTS | 4 Cyl 2.2 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-20540
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1991 Toyota Celica | ST | 4 Cyl 1.6 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-20370
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1989 Toyota Celica | All Trac | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-20320
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | GT, ST | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-20290
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1986-1989 Toyota Celica | GTS | 4 Cyl 2.0 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-14280
Product Specifications
- Other Name: Bar, Stabilizer, Front; Sway Bar
- Manufacturer Note: OD=25
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Celica | Supra | 6 Cyl 2.8 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-14250
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Manufacturer Note: OD=24,W/PS
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Celica | GT, GTS, ST | 4 Cyl 2.4 L GAS
View related parts
Toyota Celica Stabilizer Bar, Front Part Number: 48811-14230
Product Specifications
- Other Name: Bar, Stabilizer; Sway Bar; Bar, Stabilizer, Front
- Manufacturer Note: OD=22
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Celica | GT, GTS, ST | 4 Cyl 2.4 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48805-14170
Product Specifications
- Other Name: Bar Sub-Assembly, Rear Stabilizer; Sway Bar; Stabilizer Assembly
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Celica | GT, GTS, ST, Supra | 4 Cyl 2.4 L GAS, 6 Cyl 2.8 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48805-14150
Product Specifications
- Other Name: Bar Sub-Assembly, Rear Stabilizer; Sway Bar
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota Celica | Supra | 6 Cyl 2.8 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48805-14040
Product Specifications
- Other Name: Bar Sub-Assembly, Rear Stabilizer; Sway Bar Link; Link
- Manufacturer Note: OD=15
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota Celica | GT, GTS, ST, Supra | 4 Cyl 2.4 L GAS, 6 Cyl 2.8 L GAS
View related parts
Toyota Celica Stabilizer Bar, Rear Part Number: 48812-20420
Product Specifications
- Other Name: Bar, Stabilizer, Rear; Sway Bar
- Position: Rear
- Replaces: 48812-20430
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1993 Toyota Celica | GT, GTS, GTS All Trac, ST | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L GAS

| Page 1 of 2 |Next >

1-20 of 30 Results

Toyota Celica Sway Bars

Choose genuine Sway Bars that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Sway Bars for your Toyota Celica? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Celica parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Toyota Celica Sway Bars help stabilize and prevent body roll by connecting the left and right sides of the suspension together on the same axle so that the coupe can offset the centrifugal and lateral forces in cornering. The Sway Bars are a component of the suspension package in the Toyota Celica and complement springs and shocks to balance the Toyota Celica in transitions. At the front and rear, the Sway Bars are solid steel rods designed to bend a bit when one wheel is elevated over the other, redistributing the weight across the axle to keep the Celica chassis flatter and steering reaction more predictable, allowing the driver to control possible understeer or oversteer. The Sway Bars are fastened in place with rubber bushings that absorb vibration and allow the required rotational motion. The actual steel is intended to last a long time and is covered with corrosion resistant coatings. However, the bushings themselves tend to wear out more quickly and may need to be replaced occasionally. In general, the Sway Bars enable the Toyota to maintain steady tire-on-road contact so that it can control itself confidently on winding routes and on its daily travels.

Toyota Celica Sway Bars Parts and Q&A

Stabilizer Bar, Front
48811-2B060
Q: How to service and repair the Sway Bars on Toyota Celica?
A:
The service and repair process for the Sway Bars starts with removing sway bar links after unthreading the 2 nuts and sway bar link at 44 Nm torque (449 kgf-cm, 32 ft. lbs.). You need to secure the stud using a hexagon wrench that is 5 mm in size when the Ball Joint rotates with the nut. Apply this procedure to service the sway bar links on the second side. Proceed by removing the front suspension member with the lower suspension arm and then the sway bar by removing both bolts with bracket and bushing at 19 Nm torque values (194 kgf-cm, 14 ft. lbs.). Install the bushing so that its cutout faces the rear section and stays beyond the sway bar paint line on each side before eliminating the sway bar. Before installing the nut on the ball joint you must flip the ball joint stud backward and forward 5 times to check the sway bar link. Turn the nut with a constant motion using a torque wrench at a pace between 2 and 4 seconds per rotation then measure the torque on the fifth turn while striving to reach a value from 0.05 Nm to 1.0 Nm (0.5 kgf-cm to 10 kgf-cm or 0.4 inch lbs. to 8.7 inch lbs.). The front wheel alignment must be checked after the Sway Bars is correctly installed through the opposite procedure of removal.
