OEM Scion xD Knock Sensor

Scion xD Knock Sensor Parts Questions & Experts Answers

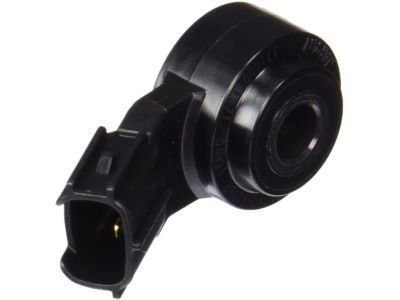

• Knock Sensor
  89615-06010
  Q: How to remove the knock sensor on Scion xD?

  A: The first step to remove the knock sensor from the 2ZR-FE engine control system requires fuel system pressure discharge. Begin the procedure by disconnecting the cable from the negative terminal and then remove both sides of engine under covers. Users must begin their operation by draining engine coolant and then removing the No. 2 cylinder head cover. The first step comprises removing the air cleaner cap sub-assembly with its hose while also separating the engine wire harness and disconnecting the harness bracket. A technician first disconnects the vacuum hose and No.1 fuel vapor feed hose then unclamps the fuel pipe followed by completion of the fuel tube sub-assembly removal. Unscrew and eliminate the combination of the fuel delivery pipe sub-assembly and the No.1 delivery pipe spacer. Start by removing three separate assemblies that include the flywheel housing side cover and the injector vibration isolator and the starter assembly. The first step is to eliminate the engine oil level dipstick as well as the oil cooler tube (for automatic transaxle) and the transmission oil level gauge sub-assembly (also for automatic transaxle). Follow these steps to remove the Intake Manifold by first disconnecting the four wire harness clamps together with the ventilation hose, throttle body connector and water by-pass hoses and afterwards remove the four bolts and two nuts which will detach the intake manifold and its stay. The knock sensor installation ends by first disconnecting its connector then removing the bolt before removing the sensor.
