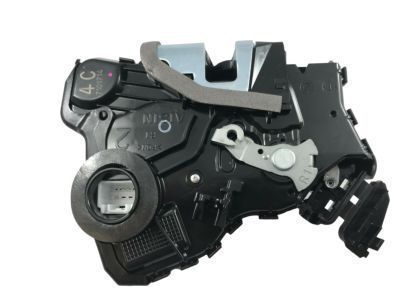

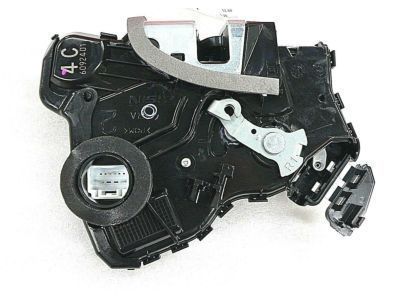

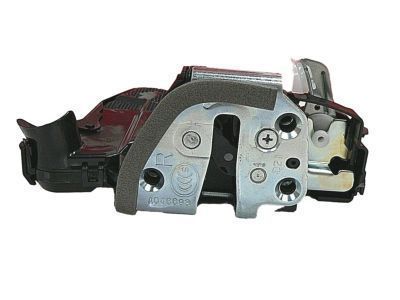

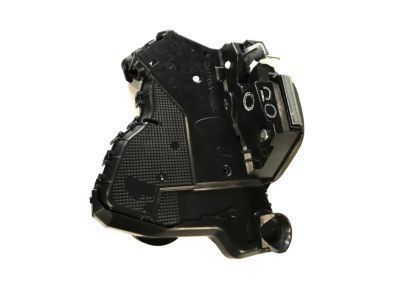

Toyota 69030-42230
Lock Actuator, Passenger Side

The first step to replace the rear door lock actuator requires disconnecting the negative battery cable terminal. First, separate all components consisting of the rear door armrest base upper panel, inside handle bezel, trim board sub-assembly, glass inner Weather Strip, trim bracket, service hole cover, check assembly, Weather Strip, and belt moulding assembly. The technician should start by removing the rear door glass run followed by the window division bar sub-assembly, quarter window Weather Strip and then the glass sub-assembly together with the window regulator sub-assembly. The final step for removing the rear door lock requires using a "TORX" socket wrench T30 to remove its three screws followed by pulling the release plate out of the rear door outside handle frame while lowering the door lock. The door lock wire harness needs its seal disconnected before protecting tape wraps around a screwdriver tip to release the claw for opening the cover. The screwdriver helps remove the cable of the rear door lock remote control followed by opening the cover by taking out the three claws before removing the rear door inside locking cable.

First users must replace the connecting-part packing with new material and clean all packing surfaces free from dirt and grease before proceeding with the front door lock installation. Before installation, apply MP grease to all sliding and rotating components of the front door lock. The front door inside locking cable should be placed next followed by engagement of the 3 claws before closing the cover. The front door lock remote control cable should be installed alongside a new wire harness seal before going on the front door lock. Place the front door open rod into the front door lock while positioning it correctly against the outside handle frame before fully connecting it. Install the front door lock by using a 'TORX' socket wrench T30 to tighten three screws that received Toyota Genuine Adhesive 1324 or Three Bond 1324 or an equivalent while applying 5.0 Nm (51 kgf-cm, 44 in-lbf) force on the screws. After connecting the front door outside handle cover and front door frame rear lower sub-assembly the order of installation continues with front door window regulator sub-assembly, front door glass run, front door glass sub-assembly, front door service hole cover, front door trim bracket, front door belt moulding assembly, outer rear view mirror assembly, front door trim board sub-assembly, front door inside handle bezel, front door lower frame bracket garnish, and front armrest base upper panel. The installation process ends with connecting the cable to the negative battery terminal while tightening it at 5.4 Nm (55 kgf-cm, 48 in-lbf).

The first step for removing the rear door lock actuator includes disconnecting the negative battery cable connection. The rear door armrest base upper panel, inside handle bezel, trim board sub-assembly, trim bracket and service hole cover must be removed before separating the rear door Weather Strip. Before performing the operation start by taking out the rear door belt moulding assembly as well as glass run and window division bar sub-assembly along with quarter window Weather Strip and glass sub-assembly. Next follow the procedure to detach the rear door window regulator sub-assembly. You need to use a "TORX" socket wrench T30 which will remove the 3 screws from the rear door lock system to allow moving the door lock downward until it frees from the outside handle frame. The door lock wire harness seal needs removal followed by utilizing a screwdriver with protective tape wrapped around the tip to loosen the claw for opening the cover. With a screwdriver protected by tape you need to first remove the rear door lock remote control cable before proceeding to the step where you disengage the 3 claws and open the cover to end up removing the rear door inside locking cable.

The installation process of the rear door lock requires new packing material for the connecting part after previously removed door lock replacement. Also ensure the packing surface remains free of grease or dirt. Plug in the sliding and rotating parts of the front door lock with MP grease before you attach the rear door inside locking cable and push in the 3 claws to finish with the cover installation. Move to the installation of rear door lock remote control cable so engage the claw and close the cover. Place the new door lock wire harness seal onto the rear door lock and place the rear door lock into the release plate of the rear door outside handle before setting it to the rear door panel while verifying correct lock engagement. Secure the rear door lock with three screws by applying Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent to their threads and installing them with a "TORX" socket wrench T30 while reaching a torque of 5.0 Nm (51 kgf-cm, 44 in-lbf). The installation requires attaching the connector followed by the rear door window regulator sub-assembly as well as the rear door glass sub-assembly and other components in the specified order. Fasten the cable to the negative battery terminal while tightening it to 5.4 Nm (55 kgf-cm, 48 in-lbf).

The first step to obtain the rear door lock actuator requires disconnecting the negative battery terminal's cable. The first steps require removal of rear door armrest base upper panel, inside handle bezel, trim board sub-assembly, trim bracket and service hole cover. The rear door Weather Strip needs separation before extracting the rear door belt moulding assembly as well as the glass run and window division bar sub-assembly and quarter window Weather Strip and glass sub-assembly. You should proceed by removing the rear door window regulator sub-assembly from the system. The rear door lock requires "TORX" socket wrench T30 to take out three screws before pulling the release plate out through the rear door outside handle frame by lowering the door lock. The protective tape must be wrapped on a screwdriver for opening the rear door lock's sealing mechanism. Unseal the door lock wire harness from the rear door lock before undoing its claw with this tool. Deliver the rear door lock remote control cable while using a screwdriver examined with protective tape to disengage the 3 claws and open the cover for removing the rear door inside locking cable.

The first step to remove the front door lock actuator requires dismantling the front door window regulator handle assembly only for cars without power windows. Begin by taking out the front door inside handle bezel before moving on to the front armrest upper base panel that could have a power window or be absence of one. The technician must undo the front door trim board sub-assembly and front door inside handle sub-assembly after all initial components are detached from the unit. The service begins with removing the front door inner glass Weather Strip then proceeding to take off the front door trim bracket and finally removing the front door service hole cover. The technician should remove the front door glass sub-assembly, front door No. 2 stiffener cushion, and front door glass run in sequence. The technician should remove the front door rear lower frame sub-assembly together with the front door outside handle cover. Users should remove the front door lock assembly and cables as a unit by first using a "TORX" socket wrench (T30) to uninstall three screws then pulling the assembly downward. Furthermore, the user should remove the door lock wiring harness seal when the vehicle has a power door lock feature. The operating procedure requires removal of the front door lock remote control cable assembly here again for both power door lock systems and for those without power locks. The final step involves disassembly of the inside locking cable assembly by detaching its 3 claws using a screwdriver whose tip must be taped prior to use.

The first step to remove a power door lock actuator demands disconnecting the negative battery terminal while waiting 90 seconds for Air Bag and seat belt pretensioner deactivation. Notice that particular systems need initialization after cutting back the cable connection. In order to proceed with power door lock actuator removal start by taking out the front door lower frame bracket garnish alongside inside handle bezel plug and assist grip cover together with courtesy light assembly and finally the front door trim board sub-assembly and inner glass Weather Strip and service hole cover with glass sub-assembly followed by glass run. The first step involves removing the front door rear lower frame sub-assembly before proceeding to take away the outside handle covers for both driver and front passenger sides. The front door lock assembly removal procedure begins by using a "TORX" socket wrench (T30) on the 3 screws and sliding the assembly downward then extracting the front door lock open rod from the outside handle frame until complete removal of assembly and cables as a unit. Use a taped screwdriver tip to disengage the 3 claws which allows removal of the front door inside locking cable assembly. After that remove the front door lock remote control cable assembly then finally extract the front door lock open rod from the front door lock assembly.

The LH side installation of the front door lock actuator begins with the front door inside locking cable assembly LH then continues with front door lock remote control cable assembly LH. Begin the front door lock assembly LH installation process through part lubrication with MP grease then insert the front door lock open rod before achieving complete connection. A "TORX" T30 wrench should be used to handle three screws that need 5.0 Nm (51 kgf-cm, 44 in-lbf) torque for door lock installation. The front door installation sequence includes adding the front door outside handle cover LH followed by the front door rear lower frame sub-assembly LH and concludes with attaching the front No. 2 door stiffener cushion and the front door service hole cover LH then the front door trim board sub-assembly LH. From here finish installation by adding the front door inside handle bezel LH and door assist grip cover LH and front door armrest base panel assembly LH as well as front lower door frame bracket garnish LH. For final steps you should link the cable to the negative battery terminal while confirming that the SRS warning light functions correctly.

Remove the front door frame rear lower sub-assembly and the front door outside handle cover.

Install the rear door lock remote control cable, engage the claw, and close the cover.

Apply MP grease.

Install the front door outside handle cover, separation door stiffener cushion, and other components listed.

Disconnect the connector, use a "TORX" socket wrench T30 to remove the 3 screws, slide the front door lock downward, pull out the front door lock open rod from the outside handle frame, and remove the front door lock and cables as a unit.

Remove the luggage compartment door lock assembly by disconnecting the rod and the connector.

Insert it into the front door lock and set it to the front door outside handle frame, ensuring it is securely connected.

Insert the front door lock open rod into the assembly and set it to the front door outside handle frame, ensuring a secure connection.

Disconnect the cable from the negative battery terminal.

Remove the 2 bolts securing the luggage compartment door lock assembly.

A "TORX" socket wrench T30.

Use a screwdriver with its tip wrapped in protective tape.

Use a screwdriver with its tip wrapped in protective tape to disengage the claw and open the cover.

Install the rear door inside locking cable assembly and engage the 3 claws.

Slide the front door lock assembly downward and pull out the front door lock open rod from the outside handle frame, removing the assembly and cables as a unit.

Begin by installing the front door inside locking cable assembly and engaging the 3 claws.

Install the rear door window regulator sub-assembly, rear door glass sub-assembly, rear door quarter window weatherstrip, rear door window division bar sub-assembly, rear door glass run, rear door belt moulding assembly, rear door weatherstrip, rear door check assembly, rear door service hole cover, rear door trim bracket, rear door glass inner weatherstrip, rear door trim board sub-assembly, rear door inside handle bezel, and rear door armrest base upper panel.

Using a screwdriver with its tip wrapped in protective tape, disengage the 3 claws and open the cover, then remove the front door inside locking cable.

Proceed to install the rear door glass run, rear door glass sub-assembly, rear door quarter window glass, rear door window division bar sub-assembly, rear door weatherstrip, rear door service hole cover, door trim bracket, rear door inner glass weatherstrip, rear door inside handle sub-assembly, rear door trim board sub-assembly, rear door armrest upper base panel for both configurations, rear door inside handle bezel, and rear door window regulator handle assembly for the non-power window version.

Remove the front armrest base upper panel, front door lower frame bracket garnish, front door inside handle bezel, front door trim board sub-assembly, and front door glass inner weatherstrip.

Install a new door lock wire harness seal onto the rear door lock.

Take off the front door lower frame bracket garnish, inside handle bezel plug, assist grip cover, courtesy light assembly, trim board sub-assembly, inner glass weatherstrip, and inside handle sub-assembly.

Install the front door inside handle bezel and the rear door window regulator handle assembly if applicable.

Ensure that a new door lock wiring harness seal is used if reusing the removed assembly, and avoid allowing grease or dust to adhere to the surface where the seal attaches.

Begin by installing the front door inside locking cable assembly and engaging the 3 claws.

Use a "TORX" socket wrench (T30) to remove the 3 screws, then move the assembly downward and pull the release plate out of the rear door outside handle frame.

Begin by removing the front door lower frame bracket garnish, inside handle bezel plug, assist grip cover, courtesy light assembly, front door trim board sub-assembly, inner glass weatherstrip, inside handle sub-assembly, front No. 1 speaker assembly, service hole cover, glass sub-assembly, rear lower frame sub-assembly, and outside handle cover.

Remove the front door lower frame bracket garnish, inside handle bezel plug, assist grip cover, courtesy light assembly, front door trim board sub-assembly, inner glass weatherstrip, service hole cover, glass sub-assembly, and glass run.

Take out the front door trim board sub-assembly LH, the front door service hole cover LH, and the front No. 2 door stiffener cushion.

Using a T30 "TORX" wrench, remove the 3 screws to take out the front door lock assembly LH, being cautious to prevent the lock from falling and getting damaged.
