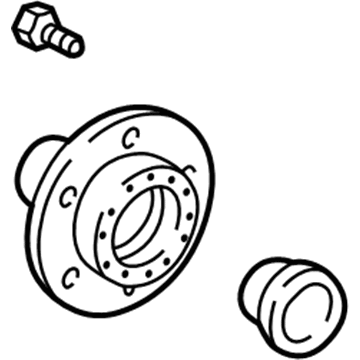

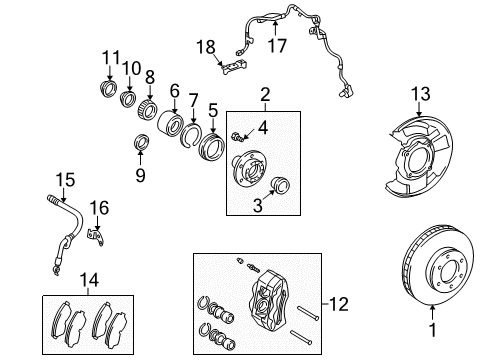

Toyota 43502-35110
Hub Assembly, Front

The first step for repairing or servicing the wheel bearing involves removing its individual components. Place the axle hub into a soft jaw vise which should grip the hub bolts without excessive force. The grease cap removal requires a screwdriver for 2WD while 4WD requires using a screwdriver to remove the oil seal from the inside. Starting with the axle hub removal from the steering knuckle requires the removal of its 4 bolts followed by moving the brake dust cover towards the hub. The removal of the axle hub requires Special Service Tools 09710-30021 (09710-03051) and 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09957-04010, 09958-04011). First remove the bearing spacer along with the ABS speed sensor rotor/spacer and then peel out the outside oil seal through the use of a screwdriver. The bearing extraction from the steering knuckle requires snap ring pliers followed by Special Service Tool: 09950-60020 (09951-00810), 09950-70010 (09951-07150) along with a press. The assembly process requires insertion of a new bearing into the steering knuckle through Special Service Tool: 09527-17011, 09950-60020 (09951-00910) and a press followed by snap ring installation with snap ring pliers. Use the tools Special Service Tool: 09223-15030 and 09527-17011 with a plastic hammer to install a new oil seal onto the outside while applying MP grease to the lip of the oil seal. Replace the brake dust cover to the steering knuckle through mounting 4 bolts while torquing at 18 Nm (185 kgf.cm, 13 ft. lbs.). Then install the axle hub with Special Service Tool: 09649-17010 using a press. The installation of an ABS speed sensor rotor/spacer must be done carefully to avoid damaging the serration with Special Service Tool: 09950-60010 (09951-00650), 09950-70010 (09951-07150) and a press. Place the grease cap on 2WD vehicles while installing a new oil seal inside 4WD vehicles through the use of Special Service Tool: 09527-17011 along with a plastic hammer while applying MP grease to the oil seal lip.

The first step in repairing or servicing a wheel bearing starts with demounting the front wheel while tightening it to 110 Nm (1,150 kgf-cm, 83 ft. lbs.). A screwdriver needs to be used to take out both the shock absorber and the grease cap. 4WD models require users to disconnect the drive shaft through removal of the cotter pin alongside the lock cap before using brake force to remove the lock nut which should be torqued to 235 Nm (2,400 kgf-cm, 174 ft. lbs.). The ABS speed sensor with wire harness clamp should be removed from the steering knuckle applying 8.0 Nm (82 kgf-cm, 71 inch lbs) torque before removing the brake line bracket from the steering knuckle with 28 Nm (285 kgf-cm, 21 ft. lbs). You need to remove the front brake caliper and disc while disconnecting the lower ball joint through a process that starts with unbolting its 4 pieces followed by torque adjustment at 80 Nm (820 kgf-cm, 59 ft. lbs.). The next step requires removal of steering knuckle with axle hub after loosening the upper ball joint nut to 105 Nm (1,100 kgf-cm, 80 ft. lbs.) torque and performing steering knuckle disconnect using Special Service Tools mentioned above. Disassemble the steering knuckle by removing its nut while paying attention to the oil seal and drive shaft boot avoidance. When the drive shaft of 4WD models cannot be disconnected easily, use a plastic hammer for assistance. The installation process reverses the order of removal while ABS speed sensor signal and front wheel alignment checks should be performed.

The front wheel hub repair sequence begins with a vehicle check that requires front wheel removal followed by removing the front disc brake cylinder and front disc. After this check the wheel hub backlash with a dial indicator while verifying 0.05 mm (0.0020 inch) is not exceeded or the bearing must be replaced. Use the same tool to check the wheel hub deviation according to its specified requirements. To begin detachment start with removing the front wheel along with the grease cap through screwdriver and hammer use followed by removing the front drive shaft assembly using a cotter pin and lock cap removal process under braking conditions until the lock nut is free and then get rid of the front speed sensor by removing two bolts and finish with removing the wire harness clamp. Detach the front disc brake caliper assembly through a process of removing the bolt and brake line clamp followed by two bolts while supporting the brake caliper securely to prevent damaging the brake tube. First remove the front shock absorber assembly before disconnecting the front lower ball joint assembly through four bolts and using Special Service Tool: 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09958-04011) to detach the steering knuckle by loosening its nut. Tapping the drive shaft lightly with a plastic hammer will make it easier to disconnect if necessary. Avoid damaging the oil seal or drive shaft boot while performing this process. Mount the wheel hub in a soft jaw vise before removing the grease cap and oil seal (used for 4WD) followed by using Special Service Tool: 09318-12010 to loosen and remove the lock nut along with the speed sensor rotor while taking caution not to damage its serration part. Unscrew four bolts and displace the dust cover to separate the wheel hub before extracting it with Special Service Tools: 09710-30021 (09710-03051), 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09957-04010, 09958-04011). Finally discard the dust cover and bearing spacer (4WD only). Use a screwdriver to remove the outer oil seal while snap ring pliers and Special Service Tools: 09950-60020 (09951-00810), 09950-70010 (09951-07150) along with a press will take out the bearing. In reassembly the process includes using Special Service Tool: 09527-17011 and 09950-60020 (09951-00910) and a press to install a new bearing that must be followed by installing a new snap ring. Install the front wheel hub oil seal by using Special Service Tool: 09223-15030, 09527-17011 together with a plastic hammer after applying MP grease to the lip of the oil seal. You must utilize Special Service Tool: 09649-17010 with a press to install the wheel hub onto the steering knuckle which requires the dust cover to be secured by four bolts tightened to 18 Nm (185 kgf-cm, 13 ft. lbs.). The 2WD method requires the front wheel lock nut installation using Special Service Tool: 09318-12010 followed by torque application to 274 Nm (2,800 kgf-cm, 203 ft. lbs.) then staking with a chisel and hammer. The repair process for 4WD includes installing the front wheel hub grease cap along with the inner bearing spacer through the use of Special Service Tool: 09950-60010 (09951-00650), 09950-70010 (09951-07150) and a press and then fitting the oil seal (inside) with Special Service Tool: 09527-17011 and a plastic hammer while coating the lip with MP grease. Tighten the steering knuckle to upper suspension arm by nut while inserting a new cotter pin before installing the lower ball joint to the steering knuckle by using four bolts with 65 Nm (663 kgf, 48 lbft) torque. Add the front shock absorber followed by the front disc brake caliper assembly and finish by tightening the disc and brake caliper components with two bolts to 123 Nm (1,250 kgf-cm, 90 ft. lbs.) while reinforcing the brake line clamp at 28 Nm (285 kgf-cm, 21 ft. lbs.). Secure the front speed sensor along with wire harness clamp using two bolts which require torque at 8.0 Nm (82 kgf-cm, 71 ft. lbs.) followed by another clamp installation. The front wheel lock nut tightening process must be performed under brake application pressure at 235 Nm (2,400 kgf-cm, 173 ft. lbs.), followed by the installation of the lock cap and new cotter pin then the installation of the front wheel hub grease cap and front wheel using 110 Nm (1,150 kgf-cm, 83 ft. lbs.). Users must press the brake pedal several times before assessing the wheel alignment and speed sensor signals and performing sensor calibration of yaw rate and steering angle and master cylinder pressure and deceleration.

The first step of wheel bearing service and repair requires removing all components. You should remove the grease cap by placing the axle hub in a soft jaw vise and using a screwdriver on 2WD models. The procedure for 4WD demands the inward oil seal to be removed through the similar process. Special Service Tools 09710-30021 (09710-03051) and 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09957-04010, 09958-04011) will be required for this step. The axle hub must first have its dust cover directed toward the hub side as the four bolts securing it are removed. Separate the dust cover and bearing spacer from the ABS speed sensor rotor (w/ABS) or spacer (w/o ABS). Maintain the serrations of the speed sensor rotor without scratching them. After removing the outside oil seal with a screwdriver you can extract the bearing from the steering knuckle through snap ring pliers and Special Service Tool: 09950-60020 (09951-00810), 09950-70010 (09951-07150) operated with a press. Install a new bearing through the combination of Special Service Tool: 09527-17011, 09950-60020 (09951-00910) and a press before inserting a new snap ring using snap ring pliers. Wear Special Service Tool: 09223-15030, 09527-17011 in conjunction with a plastic hammer to put in a new oil seal (outside) while coating its lip with MP grease. The dust cover must be secured onto the steering knuckle through 4 bolts which need to be torqued to 18 Nm (185 kgf-cm, 13 ft. lbs.). Next, use Special Service Tool: 09649-17010 and a press to install the axle hub. Use the ABS speed sensor rotor (or spacer when ABS is absent) without scratching the serration and then apply bearing spacers by using Special Service Tool: 09950-60010 (09951-00650), 09950-70010 (09951-07150) and a press. When finishing 2WD installation install the grease cap then 4WD needs a new oil seal (inside) which should be installed using Special Service Tool: 09527-17011 and a plastic hammer so that you lightly strike the tool around its circumference and coat the oil seal lip with MP grease.

The wheel hub repair process starts at the grease cap removal on 2WD cars followed by a soft jaw vise mounting of the axle hub and a screwdriver tool application. During repair of the wheel hub for 4WD models technicians must remove its inside oil seal following the same procedure. The next step for 2WD requires a chisel and hammer to unstake the lock nut section while using Special Service Tool: 09318-12010 to remove the nut and extract the ABS speed sensor rotor/spacer without scratching the serrated rotor. You should remove the steering knuckle axle hub by first removing all 4 bolts followed by shifting the dust cover while using the combination of service tools 09710-30021 (09710-03051) and 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09957-04010, 09958-04011). Remove the bearing spacer together with ABS speed sensor rotor (w/ ABS)/spacer (w/o ABS) for 4WD vehicles after which extract the outer oil seal by employing a screwdriver. The removal of the bearing from the steering knuckle requires snap ring pliers for the snap ring combined with using Special Service Tool: 09950-60020 (09951-00810), 09950-70010 (09951-07150) and a press. The installation process requires Special Service Tool: 09527-17011 and 09950-60020 (09951-00910) to perform bearing installation after which you must install a fresh snap ring using snap ring pliers. Insert the new oil seal (outside) through Special Service Tool: 09223-15030 alongside 09527-17011 while using a plastic hammer to distribute MP grease on its lip. The steering knuckle must receive its axle hub along with dust cover treatment through 4 bolts torqued to 18 Nm (185 kgf-cm, 13 ft. lbs.), while installation of the axle hub requires Special Service Tool: 09649-17010 and a press. Implement the 2WD lock nut with Special Service Tool: 09318-12010 which must be torqued to 274 Nm (2,800 kgf-cm, 203 ft. lbs.) while staking with a chisel and hammer. Before installing the bearing spacer for 4WD you must use Special Service Tools 09950-60010 (09951-00650), 09950-70010 (09951-07150) along with a press. A new oil seal (inside) needs installation for 4WD using Special Service Tool: 09527-17011 accompanied by a plastic hammer to apply MP grease on the oil seal lip before installing it.

The front axle hub reassembly process starts with a new bearing installation on the steering knuckle through Special Service Tool: 09527-17011, 09950-60020 (09951-00910) and a press to be used along with new snap ring installation that requires snap ring pliers. Nickel plated MP grease must be applied to the lip of the new oil seal before its installation (outside) with Special Service Tool: 09223-15030, 09527-17011 using a plastic hammer. The installation process requires the dust cover to be fitted onto the steering knuckle with four bolts reaching a torque of 18 Nm (185 kgf-cm, 13 ft. lbs.). The next step involves using Special Service Tool: 09649-17010 to attach the axle hub to the steering knuckle while using a press. Install the ABS speed sensor rotor to the vehicle while protecting its serration from getting scratched. To bolt the lock nut of the axle hub for 2WD models utilize Special Service Tool: 09318-12010 at 274 Nm (2,800 kgf-cm, 203 ft. lbs.) and staking the lock nut with a chisel and hammer. Install the bearing spacer into 4WD models using Special Service Tool: 09950-60010 (09951-00650), 09950-70010 (09951-07150) with a press to prepare the spot for a new oil seal (inside). Apply Special Service Tool: 09527-17011 with a plastic hammer to strike the tool on its circumference. Coat the oil seal lip with MP grease during application.

Utilize Special Service Tool: 09710-30021 (09710-03051), 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09957-04010, 09958-04011).

Disconnect the drive shaft by removing the cotter pin and lock cap, then apply the brakes to remove the lock nut with a torque of 235 Nm (2,400 kgf.cm, 174 ft. lbs.).

Install the grease cap, front wheel with a torque of 110 Nm, depress the brake pedal several times, check the front wheel alignment, check the speed sensor signal, and perform zero point calibration of the steering angle, master cylinder pressure, yaw rate, and deceleration sensors.

Ensure not to scratch its serration.

Use Special Service Tool: 09318-12010, torquing to 274 Nm (2,800 kgf-cm, 203 ft. lbs.), and stake it with a chisel and hammer.

Clean the bearings and outer races, inspecting them for wear or damage.

Disconnect the ABS speed sensor and wire harness clamp from the steering knuckle by removing 2 bolts with a torque of 8.0 Nm (82 kgf-cm, 71 inch lbs.).

Begin by disassembling the components.

Install a new lock nut with Special Service Tool: 09318-12010, torque to 274 Nm (2,800 kgf-cm, 203 ft. lbs.), and stake it with a chisel and hammer.

Install a new outside bearing race using Special Service Tool: 09527-17011, 09950-60010 (09951-00490), 09950-70010 (09951-07150) and a press, taking care not to damage the ABS speed sensor rotor.

Special Service Tool: 09710-30021 (09710-03051), 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04031, 09957-04010, 09950-04011).

Use Special Service Tool: 09950-40011 (09951-04010, 09952-04010, 09553-04020, 09554-04010, 09955-04031, 09958-04011).

Insert the drive shaft into the axle hub and temporarily tighten the nut, ensuring not to damage the oil seal and drive shaft boot.

Use Special Service Tool: 09527-17011, a brass bar, and a hammer, taking care not to damage the ABS speed sensor rotor.

Disconnect the drive shaft by removing the cotter pin and lock cap, then while applying the brakes, remove the lock nut.

Remove the oil seal (inside) in the same manner as the grease cap.

Torque to 18 Nm (185 kgf-cm, 13 ft. lbs.).

Loosen the staked part of the lock nut with a chisel and hammer, then use Special Service Tool: 09318-12010 to remove the lock nut and take off the ABS speed sensor rotor/spacer.

Install the axle hub using Special Service Tool: 09649-17010 and a press.
