How to remove and replace the starter motor for the 1.6 kW type on Toyota Yaris?

The first step to replace the 1.6 kW type starter motor requires disconnecting the negative battery terminal cable. Start by removing the flywheel housing side cover through the claw disconnection method followed by upward pushing of the clamp. The starter assembly disassembly starts by removing the terminal cap followed by detach N30 terminal connection through its nut then disconnecting the connector before unscrewing the 2 bolts. You must install the starter assembly while tightening its two bolts to 37 N.m (377 kgf.cm, 27 ft.lbf). Secure terminal 30 using the nut by applying 9.8 N.m (100 kgf.cm, 87 in.lbf) torque and replace the terminal cap. Fit the side cover of the flywheel housing by inserting its protruding section into the cylinder block end before securing the 2 claws into position on the cylinder block until they create a clicking sound; replace deformed or misfitting claws with new ones for proper placement. Obtain the cable then fasten it to the negative battery terminal by applying 5.4 N.m (55 kgf.cm, 48 in.lbf) of torque.

How to Properly Install a Starter Motor on Toyota Yaris?

Begin the starter assembly installation process of the 1NZ-FE engine with the 0.8 kW Type starter by using two bolts with torque set to 37 Nm (377 kgf-cm, 27 ft-lbf). After connecting the connector and nutting terminal 30 you should torque the nut to 9.8 Nm (87 in-lbf). Close the terminal cap afterward. The installation of the flywheel housing side cover requires using the protruding portion to enter the cylinder block end while pushing it forward until two claws lock into position with a distinct click sound; if the claws show loose fit or deformities, install new components. The cable needs to be attached to the negative battery terminal while applying 5.4 Nm (55 kgf-cm, 48 in-lbf) of torque.

OEM Toyota Yaris Starter Motor

Starter Ignition

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Starter motors found

View related parts

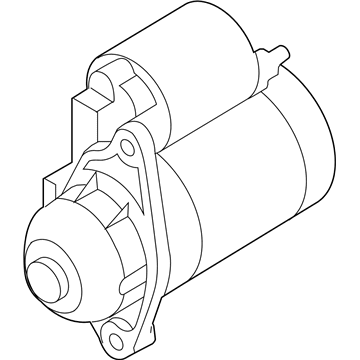

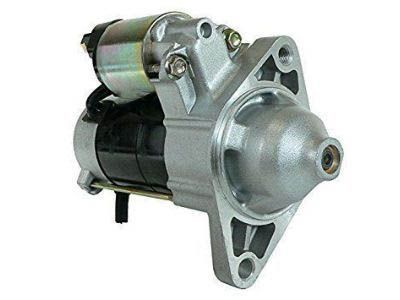

Toyota Yaris Starter
Part Number: 28100-21022
$204.10 MSRP: $291.41
You Save: $87.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Manufacturer Note: 12V 0.8KW
- Replaces: 28100-21021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2012 Toyota Yaris | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Starter
Part Number: 28100-21062-84
$158.26 MSRP: $222.70
You Save: $64.44 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Reman Starter; Starter Motor
- Replaces: 28100-21061, 28100-21062
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Yaris | Base, S | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Starter
Part Number: 28100-21020-84
$198.28 MSRP: $281.87
You Save: $83.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-21020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Yaris | Base, S | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Starter
Part Number: 28100-21140
$151.33 MSRP: $214.22
You Save: $62.89 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Manufacturer Note: 12V 1.0KW
- Replaces: 28100-21070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2018 Toyota Yaris | Base, L, LE, SE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Starter
Part Number: 28100-WB004
$298.90 MSRP: $426.76
You Save: $127.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-WB003, 28100-WB002, 28100-WB001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2020 Toyota Yaris | L, LE, XLE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Starter
Part Number: 28100-21063
$237.18 MSRP: $338.64
You Save: $101.46 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor; Alternators
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2018 Toyota Yaris | Base, L, LE, SE | 4 Cyl 1.5 L GAS

Toyota Yaris Starter Motor

Choose genuine Starter Motor that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Starter Motor for your Toyota Yaris? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Yaris parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Starter Motor is compulsory to start the engine within Toyota Yaris cars and it is responsible for converting battery supplied electricity into mechanical energy to start the engine. This is done by an externally mounted solenoid that is connected to the battery and when triggered, draws current to the starter motor. Within the starter the rotary spindle consists of an armature which is associated with a set of filed coils or permanent magnets while a drive meshes with the flywheel of the engine always the switch is turned ON. Different types of Starter Motors have been used in different models of Yaris over the years, some are; gear reduction starters for efficiency. These starter are expected to be able to offer out a lot of torque; however, they are not so good where there are high compression engines this can cause the starter to fail. All in all, the Toyota Yaris Starter Motor showcases how will modern starter technology has become to help start engines in different car configurations.

Toyota Yaris Starter Motor Parts and Q&A

Starter
28100-21020-84
Q: How to remove and replace the starter motor for the 1.6 kW type on Toyota Yaris?
A:
The first step to replace the 1.6 kW type starter motor requires disconnecting the negative battery terminal cable. Start by removing the flywheel housing side cover through the claw disconnection method followed by upward pushing of the clamp. The starter assembly disassembly starts by removing the terminal cap followed by detach N30 terminal connection through its nut then disconnecting the connector before unscrewing the 2 bolts. You must install the starter assembly while tightening its two bolts to 37 N.m (377 kgf.cm, 27 ft.lbf). Secure terminal 30 using the nut by applying 9.8 N.m (100 kgf.cm, 87 in.lbf) torque and replace the terminal cap. Fit the side cover of the flywheel housing by inserting its protruding section into the cylinder block end before securing the 2 claws into position on the cylinder block until they create a clicking sound; replace deformed or misfitting claws with new ones for proper placement. Obtain the cable then fasten it to the negative battery terminal by applying 5.4 N.m (55 kgf.cm, 48 in.lbf) of torque.
Starter
28100-21062-84
Q: How to Properly Install a Starter Motor on Toyota Yaris?
A:
Begin the starter assembly installation process of the 1NZ-FE engine with the 0.8 kW Type starter by using two bolts with torque set to 37 Nm (377 kgf-cm, 27 ft-lbf). After connecting the connector and nutting terminal 30 you should torque the nut to 9.8 Nm (87 in-lbf). Close the terminal cap afterward. The installation of the flywheel housing side cover requires using the protruding portion to enter the cylinder block end while pushing it forward until two claws lock into position with a distinct click sound; if the claws show loose fit or deformities, install new components. The cable needs to be attached to the negative battery terminal while applying 5.4 Nm (55 kgf-cm, 48 in-lbf) of torque.
