How to install the alternator assembly and related components on Toyota Yaris?

First fasten the generator with bolt B temporarily before positioning the adjusting slider with bolts A and B on the fan belt while shifting the generator toward the cylinder block until bolt B reaches 11 Nm (112 kgf-cm, 8.1 ft-lbf) torque. Before attaching terminal B the wire harness clamp must be installed then terminal B with nut at 9.8 Nm (100 kgf-cm and 7.2 ft-lbf) torque should be tightened afterward terminal cap is mounted. The installation process includes placing the fan and generator V belt then adjusting the belts before performing a visual inspection of both belts. End your installation of the engine under cover RH by connecting the cable to the negative battery terminal while applying 5.4 Nm (55 kgf-cm, 48 in-lbf) torque.

OEM Toyota Yaris Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Alternators found

View related parts

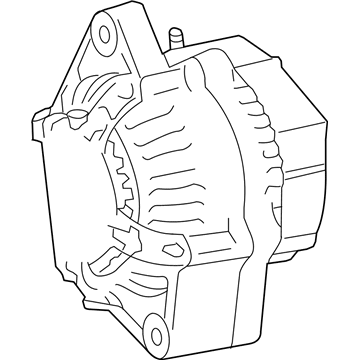

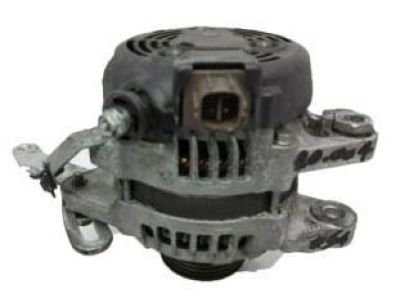

Toyota Yaris Alternator
Part Number: 27060-21151
$332.83 MSRP: $475.20
You Save: $142.37 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Reman; Alternators; Alternator Assembly
- Manufacturer Note: 12V 80A
- Replaces: 27060-21150
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2014 Toyota Yaris | Base, L, LE, S, SE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Alternator
Part Number: 27060-WB002
$290.31 MSRP: $414.49
You Save: $124.18 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Assembly
- Manufacturer Note: 12V 100A
- Replaces: 27060-WB001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2020 Toyota Yaris | L, LE, XLE | 4 Cyl 1.5 L GAS
View related parts
Toyota Yaris Alternator
Part Number: 27060-21220
$404.28 MSRP: $592.48
You Save: $188.20 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator Assembly, With Regulator; Alternator Reman; Alternators; Alternator Assembly
- Manufacturer Note: 12V 80A
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015-2018 Toyota Yaris | L, LE, SE | 4 Cyl 1.5 L GAS

Toyota Yaris Alternator

Choose genuine Alternator that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Alternator for your Toyota Yaris? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Yaris parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Alternator is one of the crucial parts found in all Toyota Yaris, and it act as a charger for the battery and provides compulsory electricity for several electrical appliances in the vehicle while it is in operation. Usually found above the engines, the Alternator takes mechanical energy generated by the engine and converts it into electrical energy thereby supplying it to any part it that needs, such as the battery. Using a rotating magnetic field and a stationary armature, the Alternator produces AC to charge the battery and power all the Electrical System in a vehicle. On the latest models, the VR function is incorporated in the Powertrain Control Module (PCM) to charge optimally without going to overcharge or undercharge. If someone has a customized car with some high electrical draw needed items, a high output Alternator can supply enough electrical current for those parts without straining the charging system of the vehicle.

Toyota Yaris Alternator Parts and Q&A

Alternator
27060-21151
Q: How to install the alternator assembly and related components on Toyota Yaris?
A:
First fasten the generator with bolt B temporarily before positioning the adjusting slider with bolts A and B on the fan belt while shifting the generator toward the cylinder block until bolt B reaches 11 Nm (112 kgf-cm, 8.1 ft-lbf) torque. Before attaching terminal B the wire harness clamp must be installed then terminal B with nut at 9.8 Nm (100 kgf-cm and 7.2 ft-lbf) torque should be tightened afterward terminal cap is mounted. The installation process includes placing the fan and generator V belt then adjusting the belts before performing a visual inspection of both belts. End your installation of the engine under cover RH by connecting the cable to the negative battery terminal while applying 5.4 Nm (55 kgf-cm, 48 in-lbf) torque.

Related Toyota Yaris Parts

Browse Toyota Yaris Alternator by Years

2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007
