Toyota 27060-21151
Alternator

2007-2014 Toyota Yaris 2706021151

Customer Questions & Expert Answers (6)
Toyota 27060-21151 Alternator
Toyota 27060-21151 Alternator
Toyota 27060-21151 Alternator
  • Part Description
    Alternator Assembly, With Regulator; Alternator Reman; Alternators
  • Part Name Code
    27020
  • Replaces
    27060-21150
  • Manufacturer
    Toyota
Make sure this part fits
$332.83 MSRP: $475.20
You Save: $142.37 (30%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

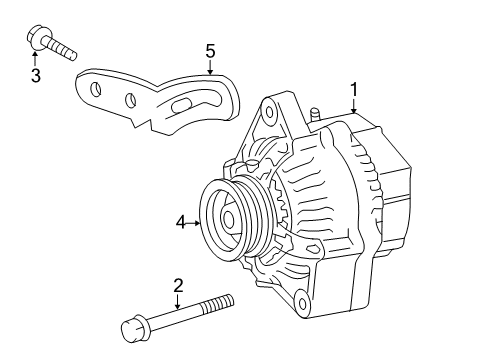

  • 27060-21151 Alternator is Ref No. 1 in the diagram below

    2013 Toyota Yaris Alternator Diagram for 27060-21151
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 27060-21151

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code27020
    Manufacturer Part Number27060-21151
    Part DescriptionAlternator Assembly, With Regulator; Alternator Reman; Alternators
    Other NamesAlternator Assembly
    Manufacturer Note12V 80A
    Item Dimensions8.4 x 8.5 x 8.3 inches
    Item Weight12.10 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces27060-21150
    ManufacturerToyota
    SKU27060-21151
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2007-2014 Toyota YarisBase, L, LE, S, SE4 Cyl 1.5 L GAS

  • Customer Questions & Expert Answers

    Q:
    Any advice on whether 27060-21151 is suitable for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 27060-21151 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to install the alternator assembly on Toyota Yaris? Posted by Customer
    A:
    The installation of the 1NZ-FE charging system generator assembly requires first fixing bolt B to the generator then fixing bolts A and B to the fan belt adjusting slider. Align the generator towards the cylinder block before tightening bolt B to 11 Nm (112 kgf-cm, 8.1 ft-lbf) torque value. Place the wire harness clamp first before installing terminal B with its nut and torquing it to 9.8 Nm (100 kgf-cm, 7.2 ft-lbf) and then installing the terminal cap. First install both the fan and generator V belt subsequently adjust these components followed by an inspection of their belts. After installing the engine under cover RH the cable requires attachment to the negative battery terminal while applying 5.4 Nm (55 kgf-cm, 48 in-lbf) torque.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to remove and install the alternator on Toyota Yaris? Posted by Customer
    A:
    The alternator removal process begins with disconnecting the negative cable from the terminal and continues with removing the engine under cover to the right followed by removing the fan and generator belts. Next remove the generator assembly by initially removing the terminal cap followed by separating the connector from the harness clamp and unscrewing the nut from terminal B before taking out the fixing bolts to detach the fan belt adjusting slider. The last step to remove the generator is to detach fixing bolt B. When installing the generator first attach fixing bolt B then place the fan belt adjusting slider with fixing bolts A and B while guiding the generator toward the cylinder block until reaching a torque of 11 N.m (112 kgf.cm, 8.1 ft.lbf at bolt B). Following the connector and wire harness clamp installation you must install terminal B while tightening the nut to 9.8 N.m (100 kgf.cm, 7.2 ft.lbf) before adding the terminal cap. After fitting the fan and generator V belt you need to examine it before reinstalling the right-hand engine under cover and negative battery terminal cable installation with a torque setting of 5.4 N.m (55 kgf.cm, 48 in.lbf).
    Posted by ToyotaPartsNow Specialist
    Q:
    How do you secure the assembly for the 2009 Toyota Yaris? Posted by Customer
    A:
    Secure the assembly with 4 nuts and a cord clip, torqued to 4.5 Nm (46 kgf-cm, 40 in-lbf), and install 3 terminal insulators onto the generator rectifier end frame.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Alternator
    Q:
    What should be done after detaching terminal B for the 2010 Toyota Yaris? Posted by Customer
    A:
    Remove the fixing bolts A and B to take off the fan belt adjusting slider.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Alternator
    Q:
    What should be done after removing fixing bolts A and B for the 2008 Toyota Yaris? Posted by Customer
    A:
    Remove fixing bolt B to finally detach the generator.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Alternator
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 27060-21151, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 27060-21151 Alternator. It is sometimes referred to as Toyota Alternator. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.
